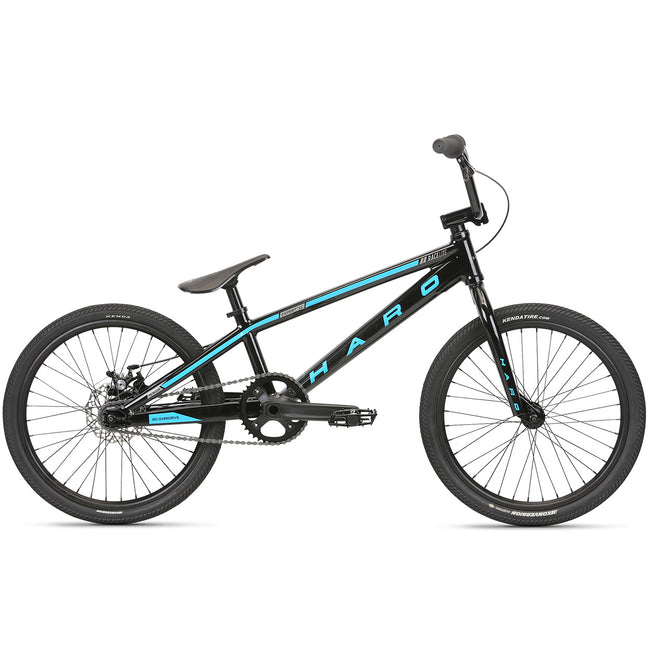

Haro Race Lite Expert XL BMX Race Bike-Black

Sold Out

About This Product: Haro Race Lite Expert XL BMX Race Bike-Black

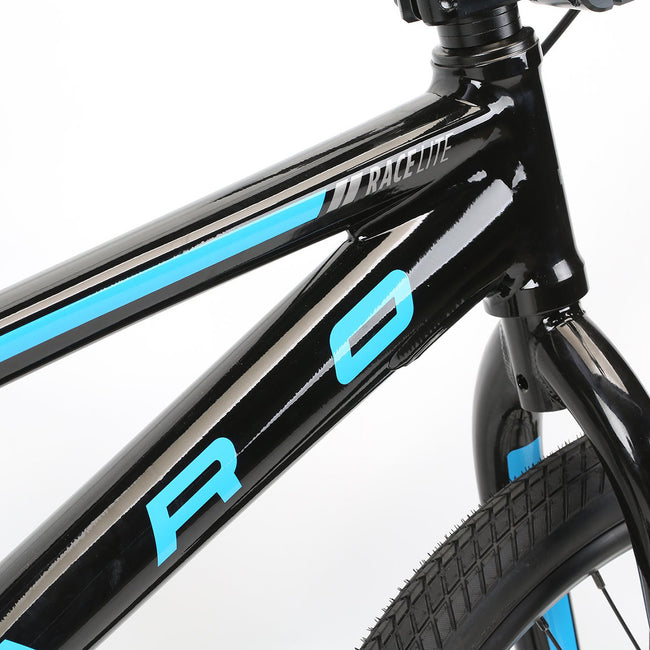

The Expert XL model is where size and spec are both stepped up a few notches in the Race Lite line. At the heart of the Expert XL is the 6061 alloy frame which boasts an integrated head tube, 3D dropouts with integrated chain adjusters and the PTC (Power Transfer Center) which is a combination of an oversized down tube and BB86 bottom bracket shell. The drive train finds 170mm 2 piece alloy race cranks combined with a sealed bearing BB86 press fit bottom bracket for optimum power delivery. Controls are stepped up in size and strength with a 1 1/8" steer tube 100% chromoly fork, expert rise chromoly bars and Pivotal seat/post combo. All this rolling on 36 spoke alloy wheels with sealed bearings makes for pro level speed and handling.

FEATURES

  • 6061 series smooth weld alloy frame with integrated head tube, internal cable routing, 3D dropouts with integrated chain tensioners
  • PTC (Power Transfer Center), triple butted air formed top tube, over sized triple butted down tube and BB86 bottom bracket shell
  • 100% chromoly fork
  • Alloy bars and Haro CNC alloy front load stem
  • 2-piece alloy cranks with sealed press fit BB86
  • Fully sealed wheels with double wall alloy rims, a sealed rear cassette hub and alloy nipples
  • Kenda Konversion tires
  • Plastic Pivotal seat with alloy post
  • Promax mechanical disc brake, 160mm rotor

SPECIFICATIONS

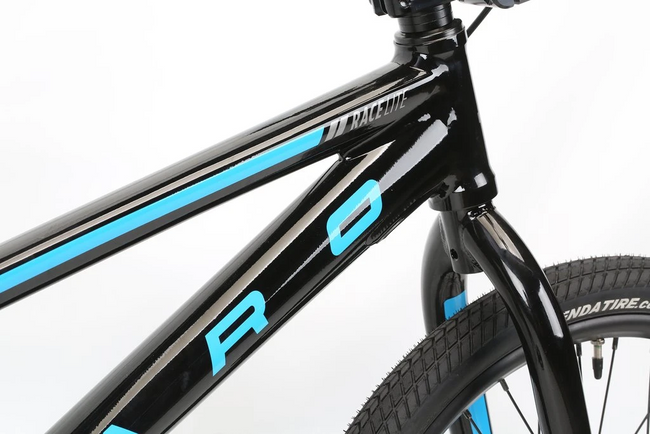

  • FRAME: 6061 Series Alloy Frame w/ Integrated Headtube, Internal Cable Routing & Smooth Welding
  • FORK: Full Cr-Mo 1" Threadless
  • COLORS: Black
  • WEIGHT: 19.4lbs
  • CRANKS: 2-pc Alloy w/ 24mm Hollow Spindle, 170mm
  • BOTTOM BRACKET: Press-Fit BB86, Sealed Bearing
  • SPROCKET: 38t Alloy
  • GEARING: 38/15
  • PEDALS: Mini DX Alloy, 9/16"
  • CHAIN: KMC Z33
  • TIRES: Kenda "Konversion" 20 x 1.65" Front / 20 x 1.50" Rear
  • FRONT HUB: Low Flange Alloy 36h, Sealed Bearing
  • REAR HUB: Alloy Disc Cassette 36h, Sealed Bearing, 6-Bolt
  • AXLE: 3/8"
  • RIMS: 20" Alloy 36h, Double Wall

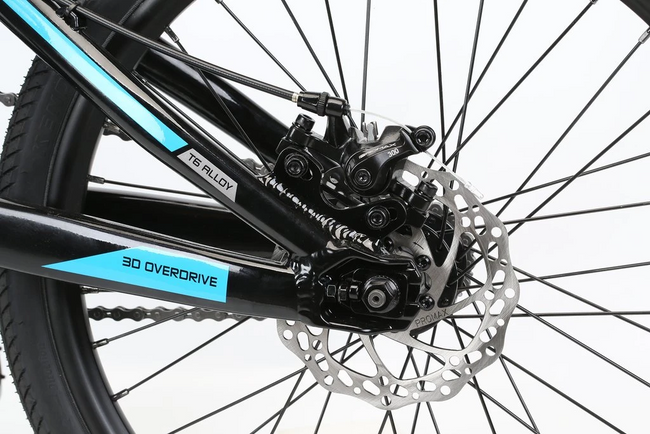

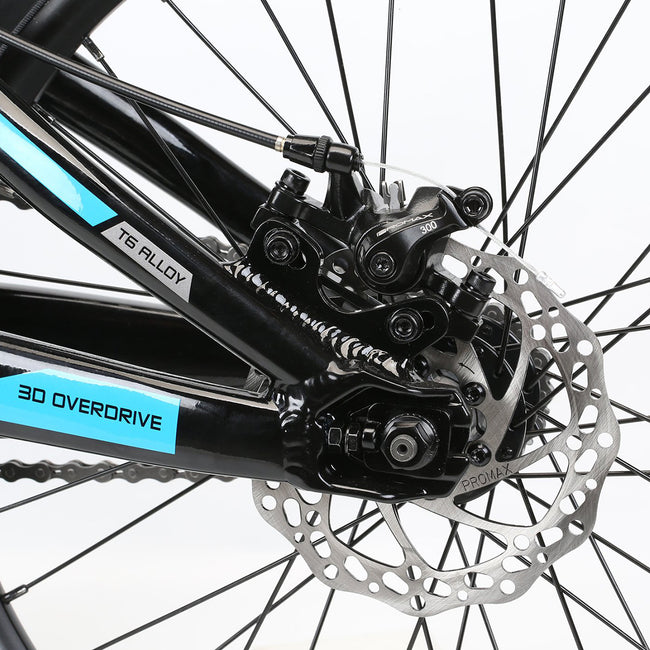

  • BRAKE: Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
  • BRAKE LEVER: Promax XL-373 Two Finger
  • GRIPS: Mini Micro-Knurl Grips
  • HANDLE BAR: Alloy Bar, 6.5" Rise

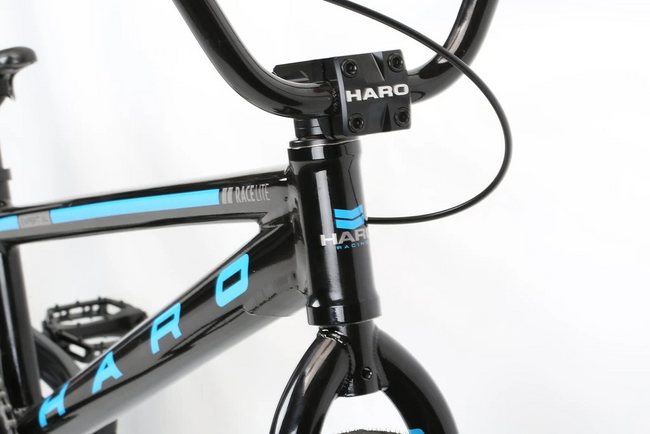

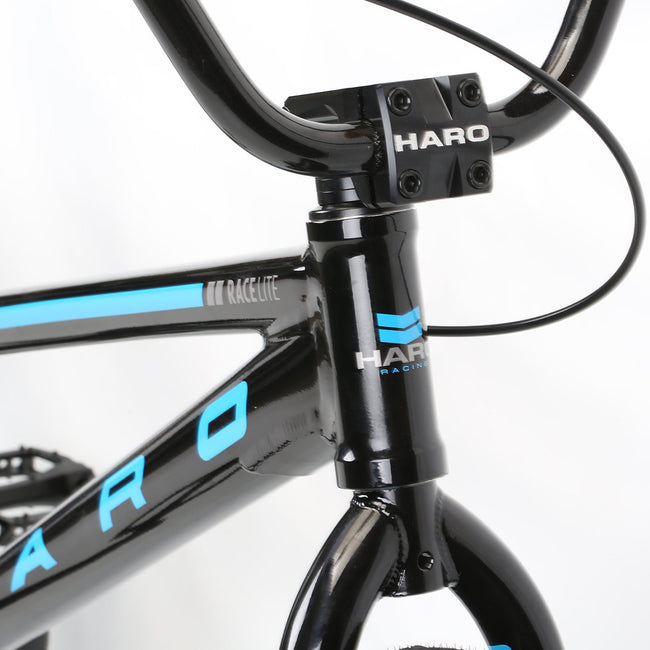

  • STEM: Forged Alloy Top-Load, 45mm Ext.
  • HEADSET: Integrated 1"

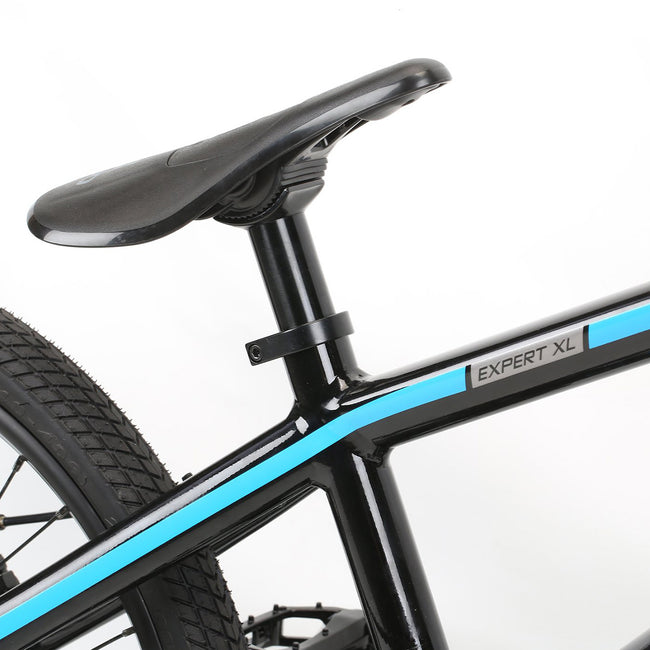

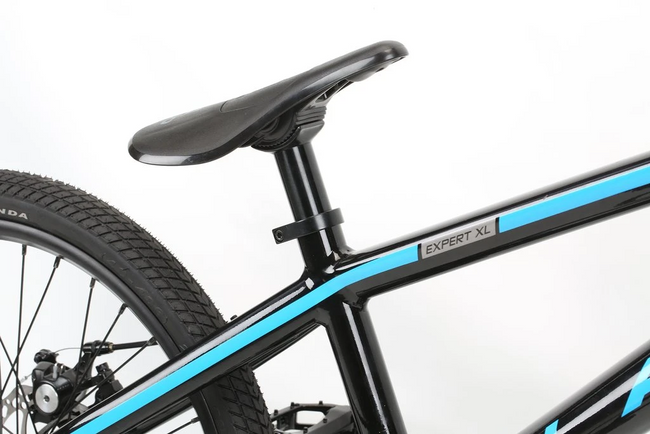

  • SEAT: Haro Slim Plastic Pivotal
  • SEAT POST: Alloy Pivotal, 27.2mm
  • SEAT POST CLAMP: Alloy, 31.8mm
Haro BMX Bike Geometry Chart

GEOMETRY & SIZING

Size: 20

  1. Head Angle: 73°
  2. Seat Angle: 70°
  3. Top Tube: 20 (507 mm)
  4. Seat Tube: 8.8 (224 mm)
  5. Chainstay: 13.9 (352 mm)
  6. BB Height: 11 (280 mm)
  7. Stand Over: 19.5 (495.3 mm)

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
