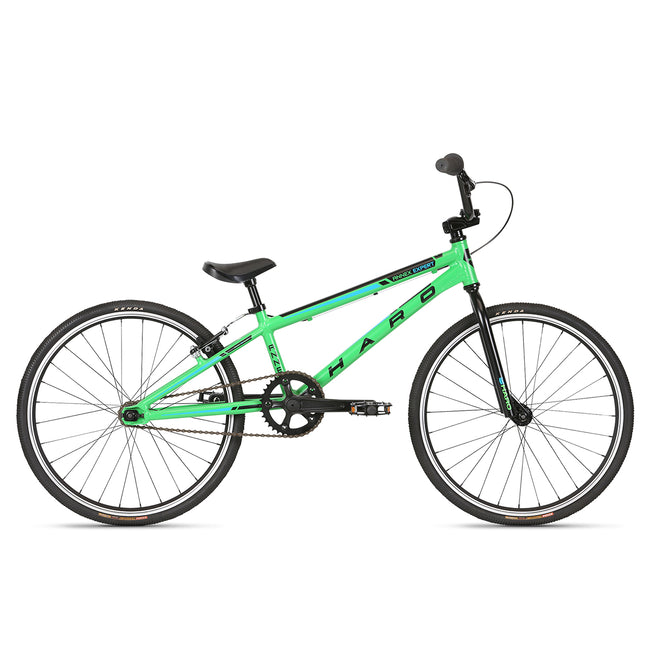

Haro Annex Expert BMX Race Bike-Matte Green

Haro
Sold Out

About This Product: Haro Annex Expert BMX Race Bike-Matte Green

The Race Lite's understudy is the Annex range. Eight individual models, each designed to deliver quality and performance at a price point, cater to a broad spectrum of age groups and experience levels. Featuring a Haro Annex Expert BMX Race Bike-Matte Green, Annex covers a whole lot of ground. All Annex models utilize 6061 aluminum frames, making them durable and light, and versatile at the track, on the school commute, or just shredding with friends in the neighborhood.

FEATURES

  • 6061 series alloy frame with 3D dropouts with integrated chain tensioners
  • 100% chromoly fork
  • Alloy bars and Haro alloy front load stem
  • Haro 3-piece alloy race cranks with sealed Euro BB
  • 28-spoke wheels with 20” DA16 double wall alloy rims
  • Velo Unibody with built in alloy post
  • Kenda Kompact tires
  • Promax V-Brake and lever

SPECIFICATIONS

  • Weights: 16.8lbs
  • Frame: 6061 Series Alloy Frame w/ 3D Dropouts w/ Built In Chain Tensioners
  • Fork: Cr-Mo 1” Threadless
  • Crankset: 3-pc Alloy Race, 170mm
  • Pedals: Mini DX alloy
  • Chain: KMC 410
  • Bottom Bracket: Sealed Bearing Euro Square Taper
  • Tires: Kenda “Kompact” 20 x 1 3/8”
  • Wheels / Rims: 20” Alloy 28h, Double Wall
  • Front Hub: Alloy 28h, Loose Ball
  • Rear Hub: Alloy Flip-Flop 28h, Loose Ball
  • Brakes: Promax MV-87 Alloy V-Brake
  • Brake Lever(s):Promax XL-378 Alloy
  • Grips / Tape: Micro Knurl Grips
  • Handle Bar: Alloy, 6.5” Rise, 25” Wide
  • Stem: Forged Alloy Top-Load, 45mm Ext.
  • Headset: Threadless Loose Ball, 1”
  • Saddle: Unibody
  • Seat Post: Alloy, 22.2mm
  • Seat Post Clamp: Alloy, 25.4mm
  • Sprocket Alloy Gearing: 36/13

GEOMETRY


  HT Angle ST Angle TT ST Chainstay BB Height Standover
Size: Micro Mini HT Angle: 72° ST Angle: 71.47° TT: 16.75" (425.4 mm) ST: 7.1" (180 mm) Chainstay: 11.8" (300 mm) BB Height: 8.75" (222.2 mm) Standover: 15.5" (393.7 mm)
Size: Mini HT Angle: 72° ST Angle: 71° TT: 17.6" (447.7 mm) ST: 8.3" (212 mm) Chainstay: 13.3" (339 mm) BB Height: 11" (280 mm) Standover: 18.5" (469.9 mm)
Size: Junior HT Angle: 73° ST Angle: 71° TT: 18.3" (464.9 mm) ST: 9.2" (232.7 mm) Chainstay: 13.6" (346 mm) BB Height: 11" (280 mm) Standover: 19.5" (495.3 mm)
Size: Expert HT Angle: 73° ST Angle: 71° TT: 18.87" (479.5 mm) ST: 9.2" (233 mm) Chainstay: 13.7" (349 mm) BB Height: 11" (280 mm) Standover: 19.5" (495.3 mm)
Size: Pro HT Angle: 74° ST Angle: 72° TT: 20.5" (522 mm) ST: 10.2" (260 mm) Chainstay: 14.4" (365 mm) BB Height: 11.5" (293 mm) Standover: 22.1" (562 mm)
Size: Pro XL HT Angle: 74° ST Angle: 72° TT: 21" (533 mm) ST: 10.2" (260 mm) Chainstay: 14.4" (365 mm) BB Height: 11.5" (293 mm) Standover: 22.1" (562 mm)
Size: Pro 24 HT Angle: 73° ST Angle: 71° TT: 21.75" (553 mm) ST: 10.5" (266.5 mm) Chainstay: 15.6" (397 mm) BB Height: 12" (305 mm) Standover: 23.6" (599 mm)

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:

Need Some help Choosing a BMX Bike?

Selecting the right size BMX bike is vital for a smooth and delightful ride. At J&R Bicycles, we understand the BMX world inside out because we're passionate riders ourselves. Just reach out to us, and we'll be more than happy to assist you on your journey to finding the perfect BMX bike.

Curious to learn more? We've compiled a comprehensive BMX buyer's guide to demystify the process. Read on, and together, we'll uncover the BMX bike that perfectly matches your riding style and preferences.
