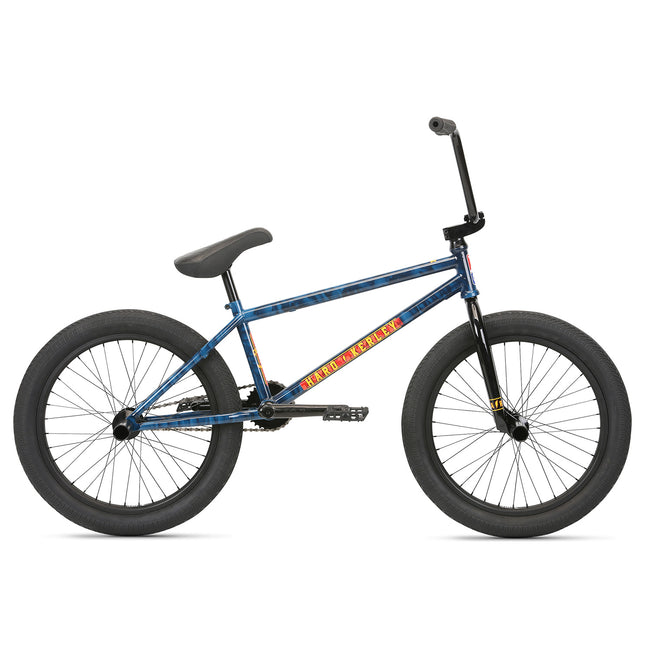

Haro CK Am 20.75"TT BMX Freestyle Bike-Blue Smoke

Name: Haro CK Am 20.75"TT BMX Freestyle Bike-Blue Smoke
Brand: Haro
Price: 799.95 USD
Availability: OutOfStock

Haro

Sold Out

About This Product: Haro CK Am 20.75"TT BMX Freestyle Bike-Blue Smoke

FEATURES

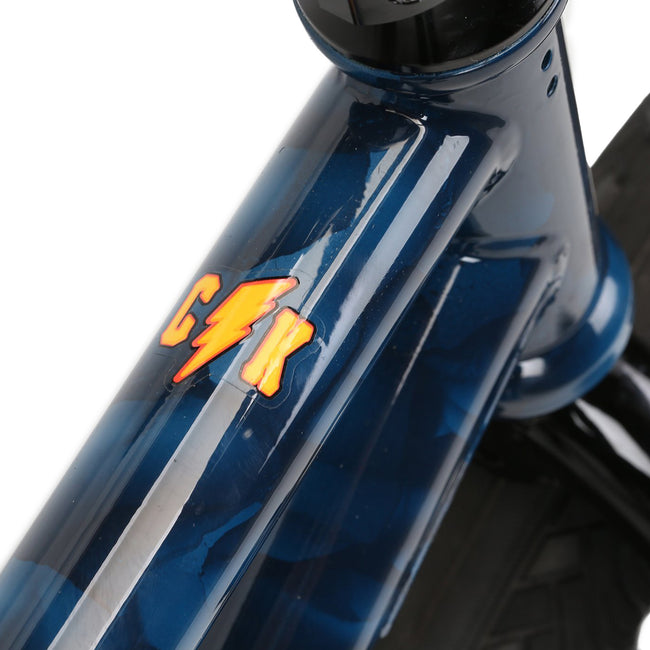

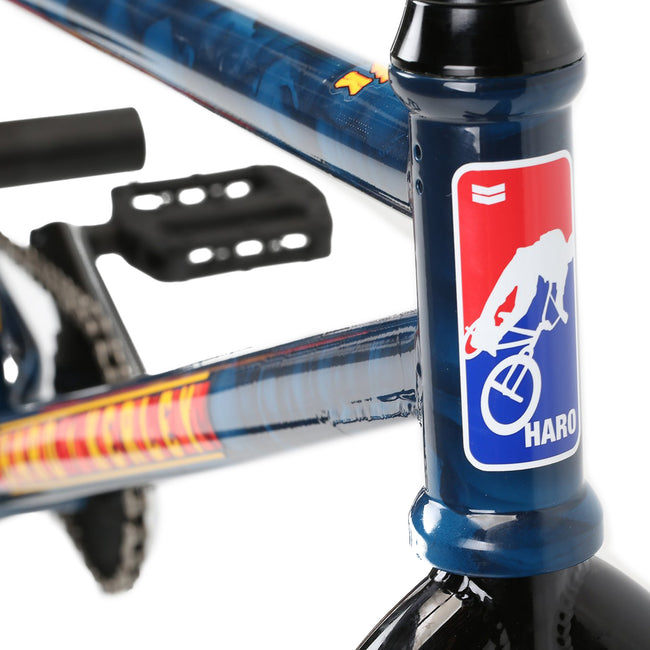

100% chromoly frame with integrated head tube, custom formed chain stays, investment cast dropouts, integrated seat clamp, 20.75” top tube and removable brake and cable mounts
100% chromoly fork with internal threaded 1 piece CNC steer tube, tapered legs and 5mm dropouts
100% chromoly bars 8.75” with Premium CK CNC alloy top load stem
Haro branded 3-piece chromoly 8-spline 175mm cranks
Haro Team Disc 28T CNC alloy bolt drive sprocket and sealed Mid BB
Fully sealed wheels with Haro Sata double-wall alloy rims, alloy shell hubs, LSD free-coaster rear hub and 14mm male axle, 9t driver and hub guards
Premium CK tires 20x2.4” front/rear
Haro padded Pivotal seat with alloy Pivotal post
Haro 1978 plastic pedals

SPECIFICATIONS

FRAME: Full Cr-Mo Brakeless Frame w/ Integrated HT, Investment Cast Drop-Outs & MID BB Shell
FORK: 1 1/8" Threadless Full Cr-Mo Fork w/ One Piece CNC Internally Threaded Steerer Tube & Tapered Legs
COLORS: Blue Smoke
WEIGHT: 25.2 lbs
CRANKS: 3-pc Cr-Mo 8 Spline 175mm
BOTTOM BRACKET: Sealed MID BB
SPROCKET: 28T Alloy Haro Team Disc
GEARING: 28/9
PEDALS: Haro 78 Plastic w/ Cr-Mo Axle, 9/16
CHAIN: KMC 410

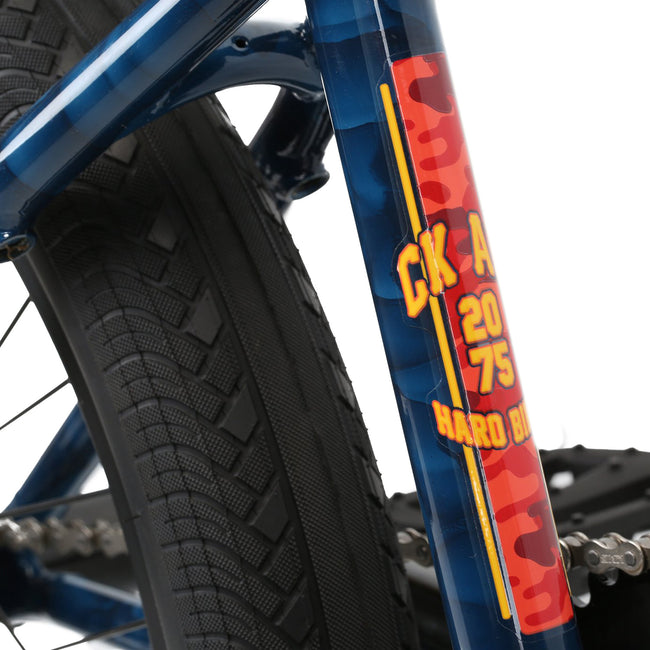

TIRES: Premium CK Tire 20 x 2.4"
FRONT HUB: Alloy Shell 36h, Sealed Bearing w/ Hub Guard
REAR HUB: Alloy Shell Freecoaster, 36h, Sealed Bearing W/ Hub Guard
AXLE: 3/8" Front / 14mm Rear
RIMS: 20" Haro Sata Alloy 36h, Double Wall
BRAKE: Haro 78 Alloy 990 U-Brake
BRAKE LEVER: Haro 78 Alloy Hinged Lever

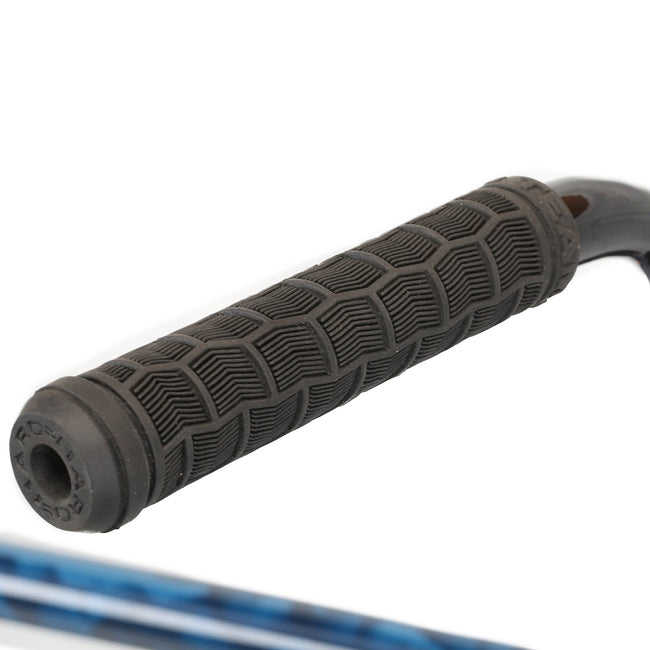

GRIPS: Haro Team Grips

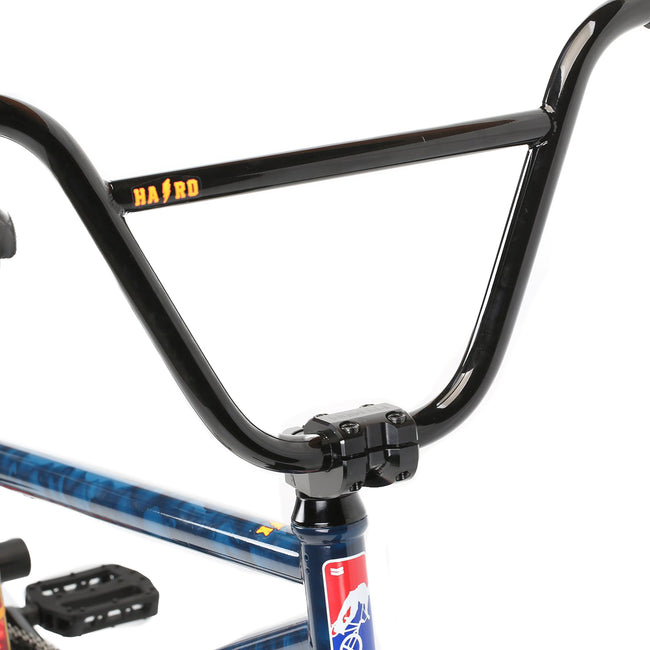

HANDLE BAR: Full Cr-Mo 8.75" Rise

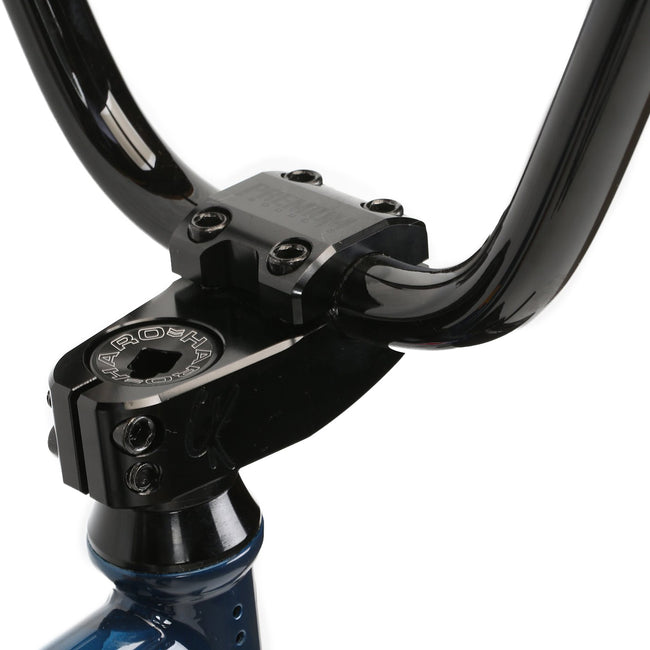

STEM: Premium CK Top-Load, 50mm Ext.
HEADSET: Sealed Integrated, 1 1/8"

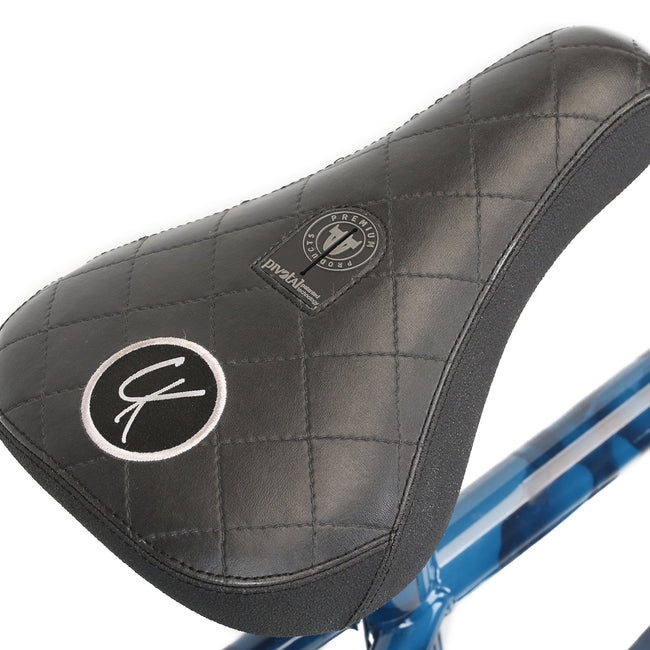

SEAT: Haro Padded Pivotal
SEAT POST: Alloy Pivotal, 25.4mm
SEAT POST CLAMP: Integrated

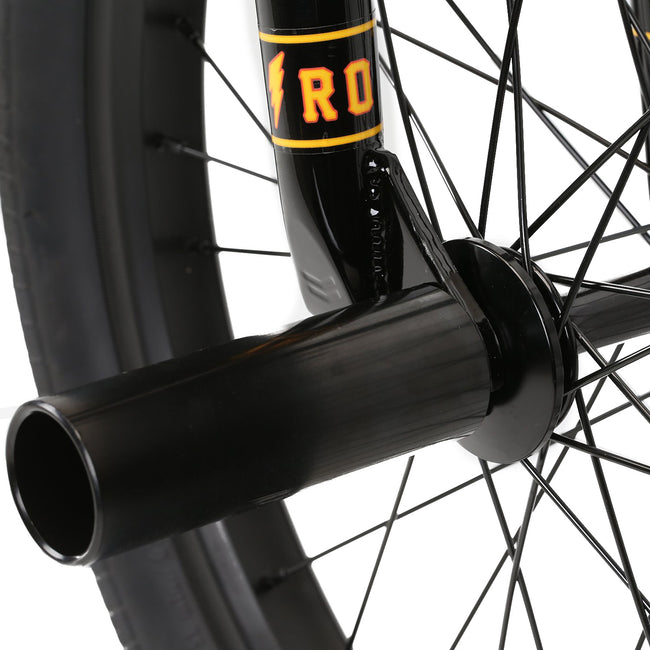

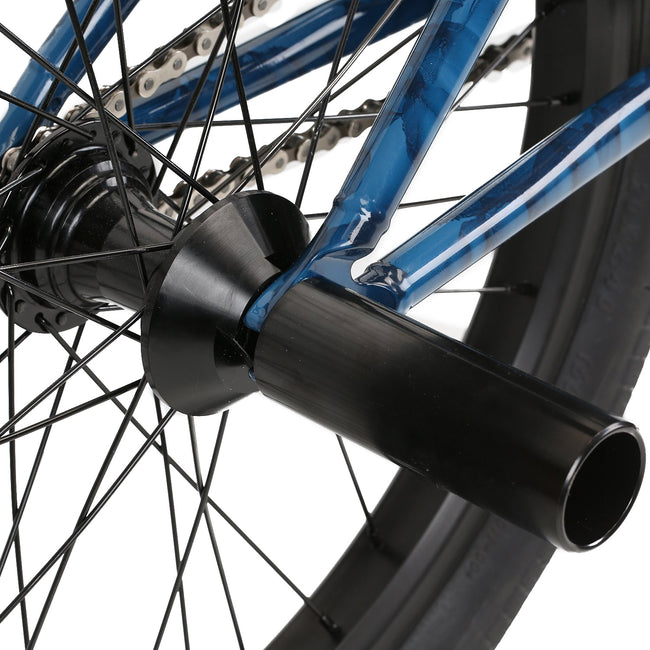

PEGS: Steel, Two Pair

GEOMETRY & SIZING

Size: 20.75
A. Head Angle: 75°
B. Seat Angle: 71.5°
C. Top Tube: 20.75 (527 mm)
D. Seat Tube: 10.2 (260 mm)
E. Chainstay: 13 (330 mm)
F. BB Height: 11.5 (293 mm)
G. Stand Over: 21.5 (546 mm

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Freestyle Bikes Sizing Guide

Freestyle Bikes Sizing Guide
Rider Height	Wheel Size	TT Size
Rider Height: 6'+	Wheel Size: 20", 22", 26"	TT Size: 21" - 23"
Rider Height: 5'6" - 6'	Wheel Size: 20", 22" 26"	TT Size: 20.25" - 23"
Rider Height: 5' - 5'8"	Wheel Size: 20", 22", 26"	TT Size: 20" - 23"
Rider Height: 4' - 5'4"	Wheel Size: 18", 20"	TT Size: 18" - 20.5"
Rider Height: 3'6" - 4'6"	Wheel Size: 18"	TT Size: 18"
Rider Height: 3' - 3'8"	Wheel Size: 14", 16"	TT Size: 14.25" - 16.25"
Rider Height: 2'8" - 3'4"	Wheel Size: 12", 14"	TT Size: 13" - 14.25"
Rider Height: 2' - 3'	Wheel Size: 12"	TT Size: 12" - 13"
