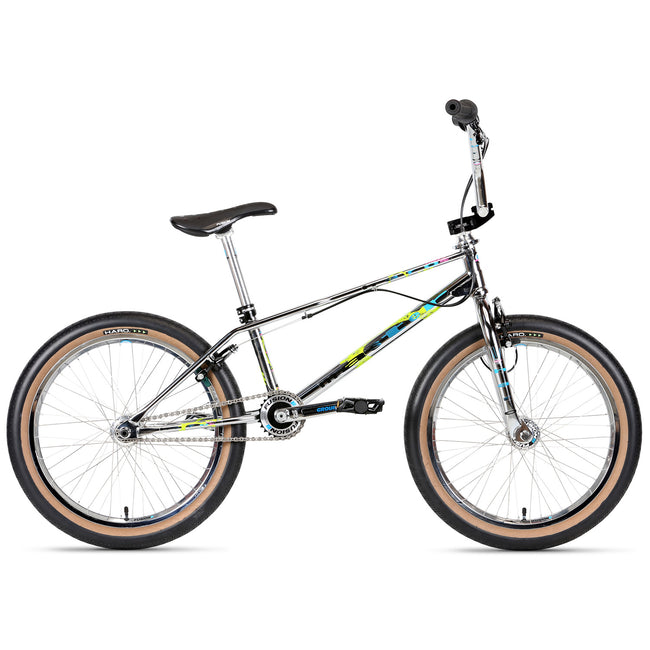

Haro Lineage Ground Master 19.5"TT BMX Freestyle Bike-Chrome

The Haro Lineage Ground Master 19.5”TT BMX Freestyle Bike-Chrome looks straight out of 1991, but oh boy is it ever a modern bike. Comparing it to the original you’ll see right away that the chain stay and seat tube are both a bit shorter. The gearing is a modern 25/9. After 30 years the rear Dia-Compe u-brake has migrated from the top of the chain stay to the bottom of the seat stay. The bottom bracket has morphed into an hourglass mid. And the fork now has tapered fluted legs. If you are looking for a next-level freestyle bike with a proven heritage then THIS is the bike to get.

FEATURES

• 100% chromoly Lineage Ground Master frame with twin top tube, hour glass Mid BB shell, integrated head tube and Lineage dropouts - 19.5" top tube length
• 100% heat treated chromoly Lineage fork with CNC 1 piece internal threaded steer tube, integrated bearing race, tapered legs, 15mm offset dropouts and 990 brake mounts with internal brake cable routing
• 100% heat treated and butted chromoly Lineage Kneesaver bars 8.5" with Fusion Lineage CNC alloy top load stem
• Lineage heat treated 3-piece chromoly 48-spline 175mm cranks with Haro Lineage Fusion Disc 28T CNC alloy bolt drive sprocket and sealed Mid BB
• 25/9 gearing
• Fully sealed wheels with Lineage high flange hubs with free coaster rear and double-wall alloy rims
• Haro HPF 100 psi tires 20 x 2.0" front and rear
• Haro Lineage padded Pivotal stealth seat with alloy Lineage Pivotal post
• Haro Fusion pedals
• CNC alloy flatland specific pegs
• CNC alloy gyro with Teflon bearing
• Haro Team grips
• KMC K710SL super light chain
• Dia-Compe "Hombre" FS996 brakes with Tech 77 levers front and rear
• Haro Lineage alloy twin torque seat post clamp

SPECIFICATIONS

• FRAME: Lineage ground master frame - 19.5" full crmo; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts.
• FORK: Haro La Bastille fork with (removable) 990 mounts and internal cable routing; 15mm offset; 3/8" axle; fluted one piece cnc cr-mo steerer; tapered fluted legs
• COLORS: Chrome
• WEIGHT: 24.2 lbs

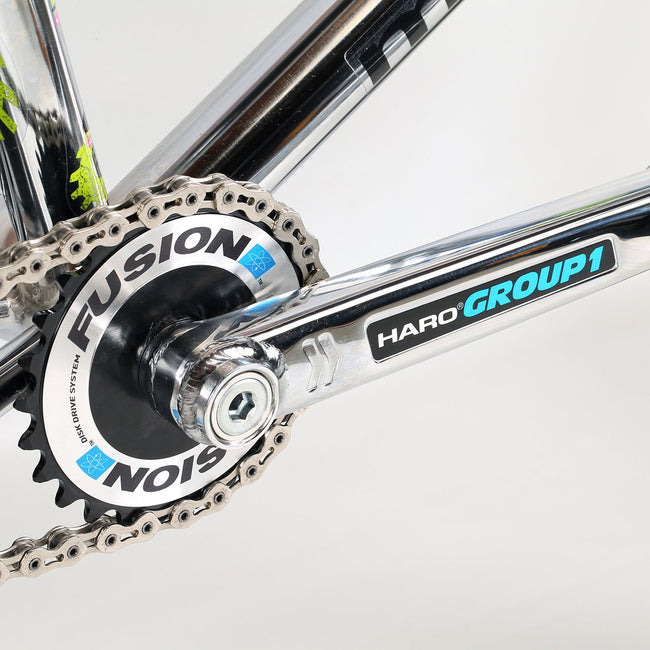

• CRANKS: Haro group one cranks (bolt drive interface) rsd and lsd; 165; 165mm; 19mm od 48-spline spindle; heat treated 4130
• BOTTOM BRACKET: Sealed MID BB
• SPROCKET: Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 25t ; solid ring w/ machined teeth, included sprocket adapter
• GEARING: 25/9
• PEDALS: Haro Fusion; alloy pedal body; crmo axle
• CHAIN: KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite
• TIRES: Haro HPF tire; 20x2.00; 60 100 max psi

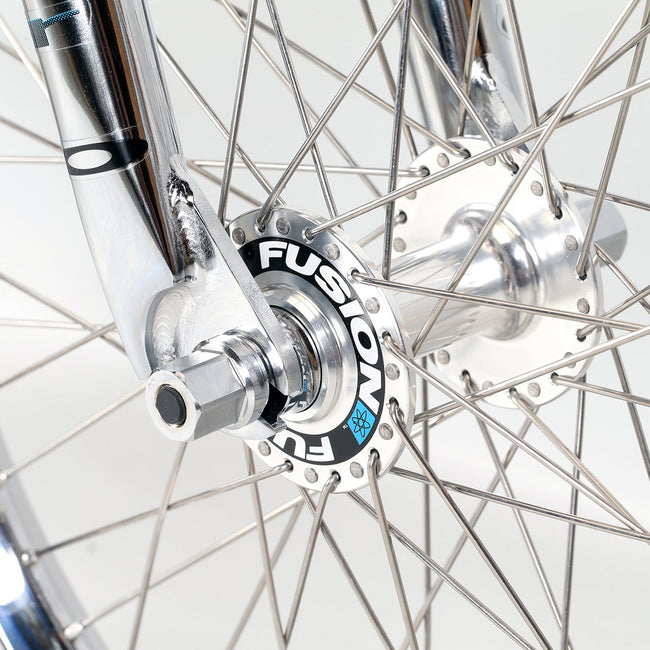

• FRONT HUB: 48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings
• REAR HUB: Freecoaster hub (male bolt); sealed bearings; 9t driver; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts

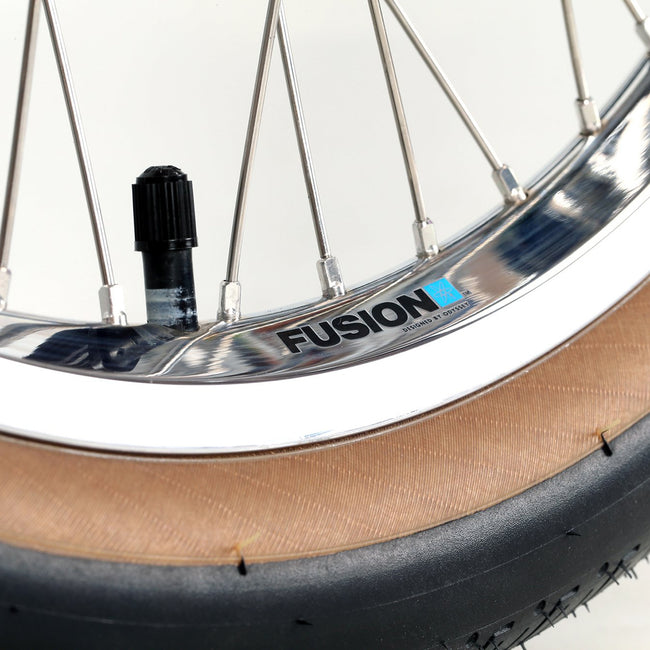

• RIMS: Fusion by Odyssey model litehouse 20x1.75"; 48h; (w200) (double wall welded joint)

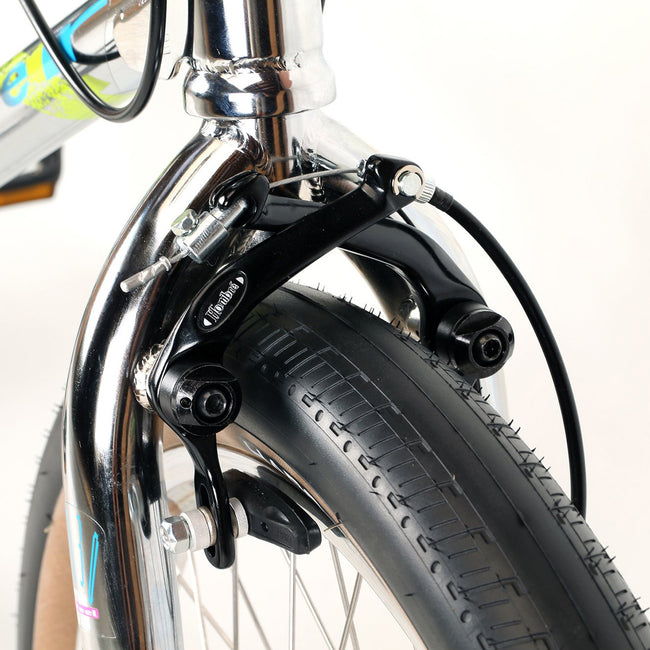

• BRAKE: Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts

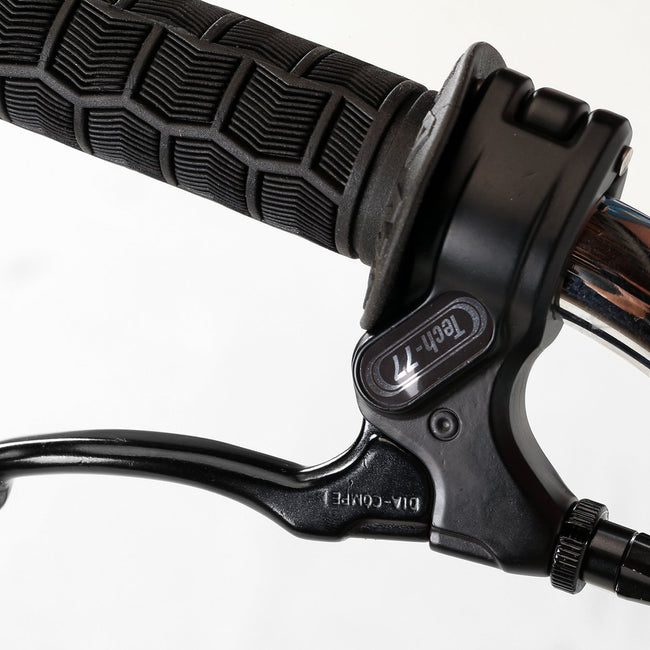

• BRAKE LEVER: Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever
• ROTOR: Teflon bearing gyro - full cnc 6061 t6 included a-plate
• GRIPS: Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).

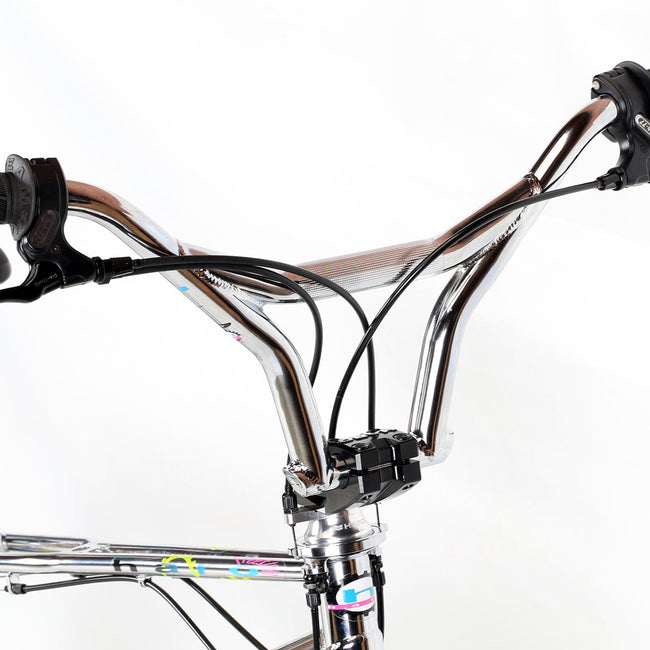

• HANDLEBAR: Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted

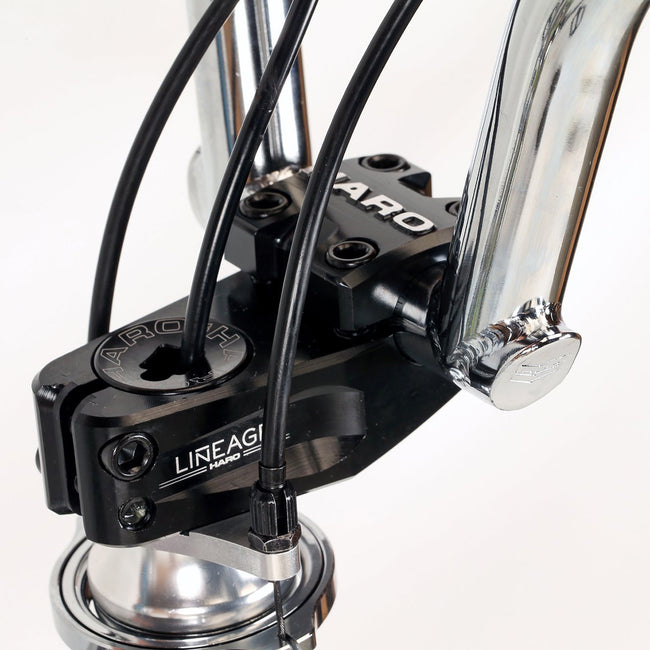

• STEM: Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 45mm
• HEADSET: Sealed Integrated, 1 1/8"

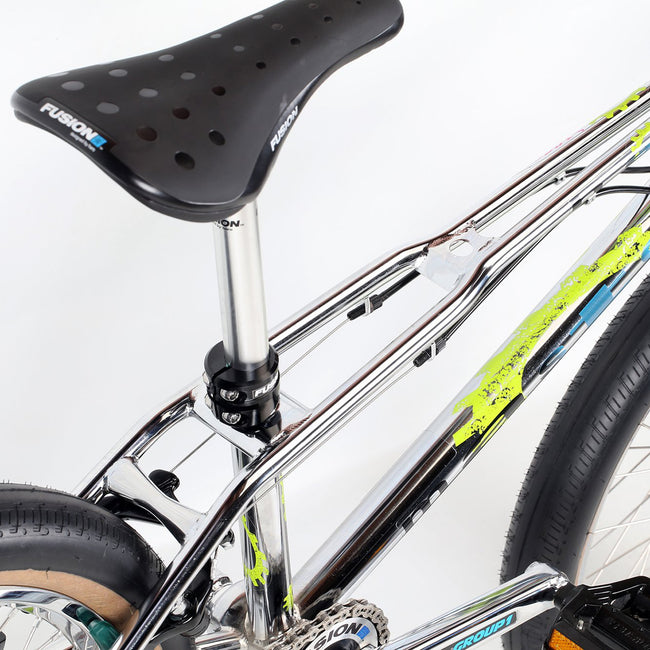

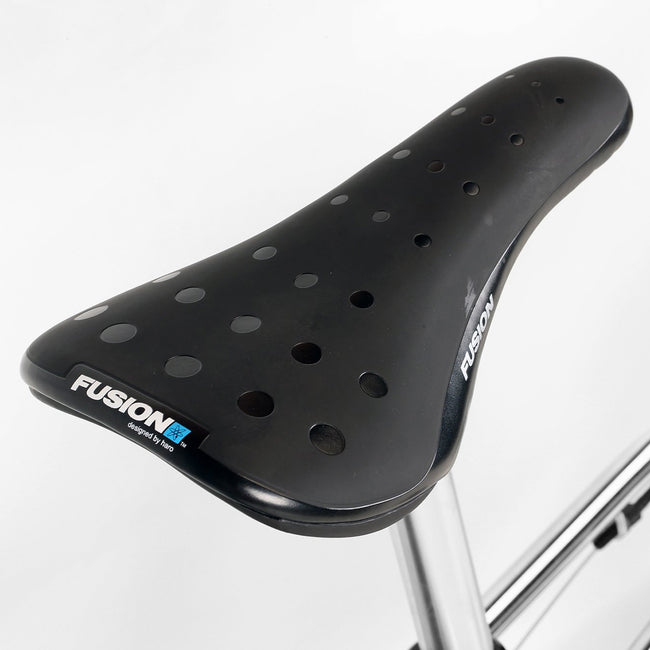

• SEAT: Haro Fusion slim stealth pivotal seat
• SEAT POST: Haro Fusion stealth pivotal seat post; 25.4 x 300mm

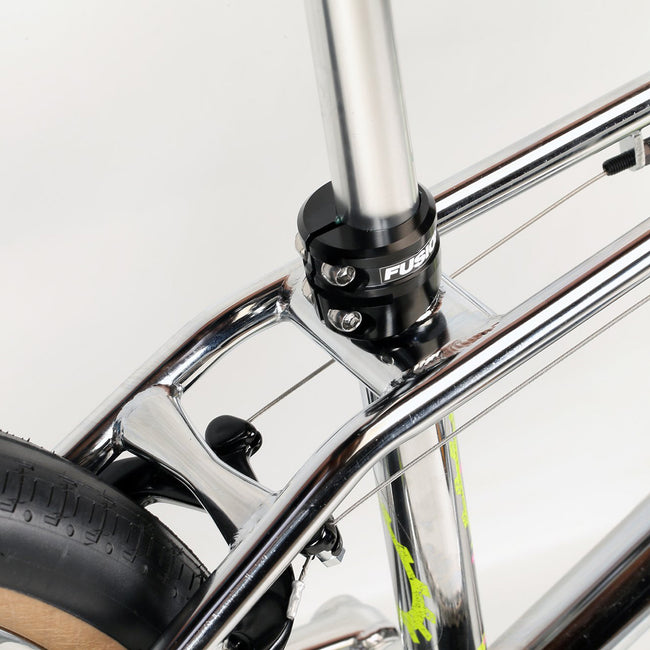

• SEAT POST CLAMP: Haro Fusion twintorc clamp; alloy 6061
• PEGS: 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs

GEOMETRY

• SIZE: 19.5
• A. HEAD ANGLE: 75°
• B. SEAT ANGLE: 70°
• C. TOP TUBE: 19.5 (495 mm)
• D. SEAT TUBE: 10.2 (260 mm)
• E. CHAINSTAY: 13.7 (339 mm)
• F. BB HEIGHT: 11.5 (293 mm)
• G. STAND OVER: 21.5 (546 mm)
