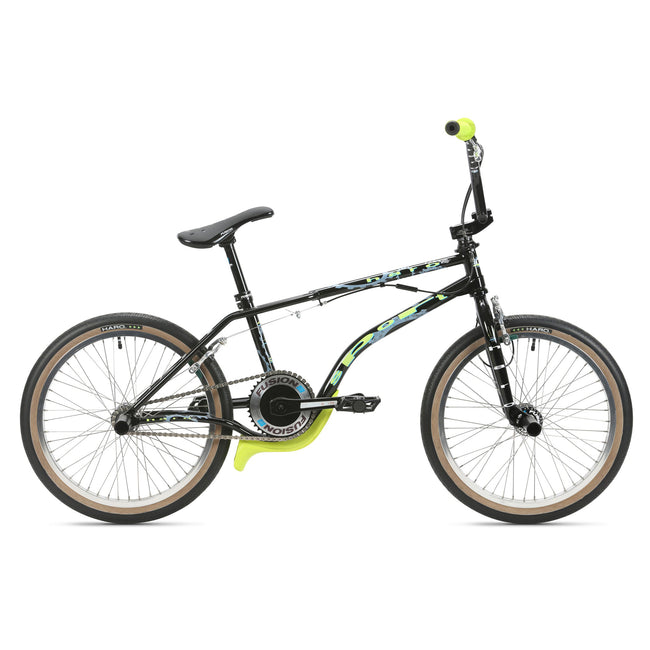

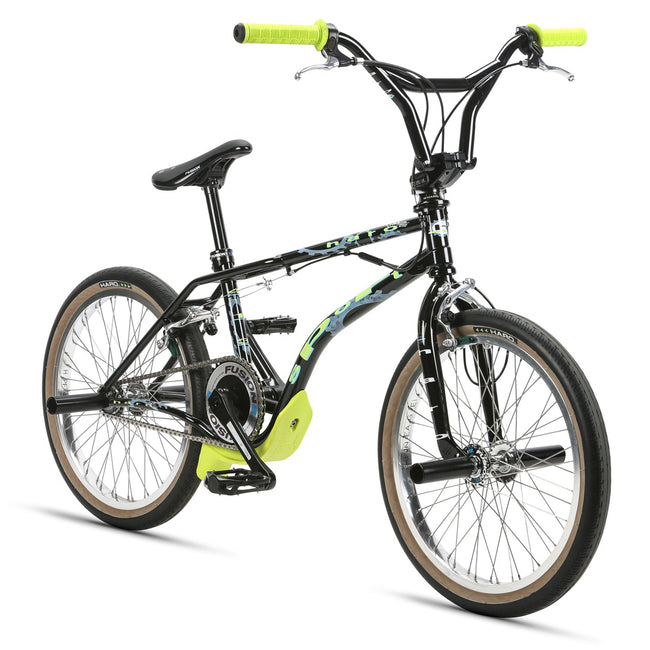

Haro Lineage Sport Bashguard 21"TT BMX Freestyle Bike-Black

The Haro Lineage Sport Bashguard 21"TT BMX Freestyle Bike uses the best BMX build elements from the past with its tires firmly planted in the present. Imagine the incredible bikes from the golden age but made with today’s technology and manufacturing perfection. From the alloy gyro with Teflon bearing to the four-piece kneesaver bars and the throwback pedals you will be the envy of all the land. The bike doesn’t just look pretty, it is also a high-performance BMX machine.

FEATURES

• 100% chromoly Lineage Sport frame with platform and bash guard, Mid BB shell, integrated head tube and Lineage cast dropouts with integrated chain tensioners. 21" top tube length
• 100% heat-treated chromoly Lineage fork with CNC 1-piece internal threaded steer tube, integrated bearing race, tapered legs, investment cast dropouts and 990 brake mounts with internal brake cable routing
• 100% heat-treated and butted chromoly Lineage Kneesaver bars 8.5" with Haro Lineage CNC alloy top load stem
• Lineage Fusion alloy 175mm cranks with 22mm chromoly spindle. Haro Lineage Fusion Disc 39T CNC alloy bolt drive sprocket and sealed Mid BB
• 39/14 gearing
• Fully sealed wheels with Lineage high flange hubs, 14T cassette rear. Double-wall alloy rims
• Haro HPF 100 psi tires 20 x 2.2" front and rear
• Haro Lineage padded Pivotal stealth Fusion seat with alloy Lineage Pivotal fluted post
• Haro Fusion alloy pedals

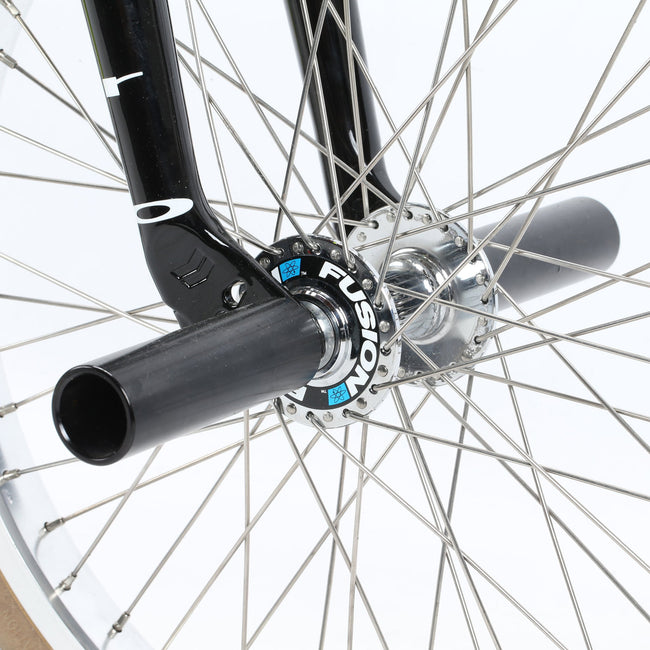

• CNC alloy pegs
• CNC alloy gyro with Teflon bearing
• Haro Team grips
• KMC K710SL super light chain

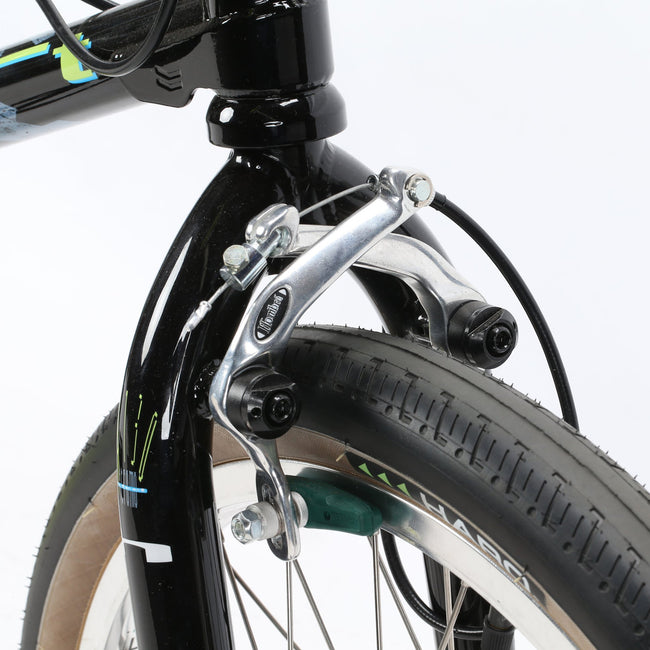

• Dia-Compe Hombre FS996 (front) and AD996 (rear) brakes with Tech 77 levers

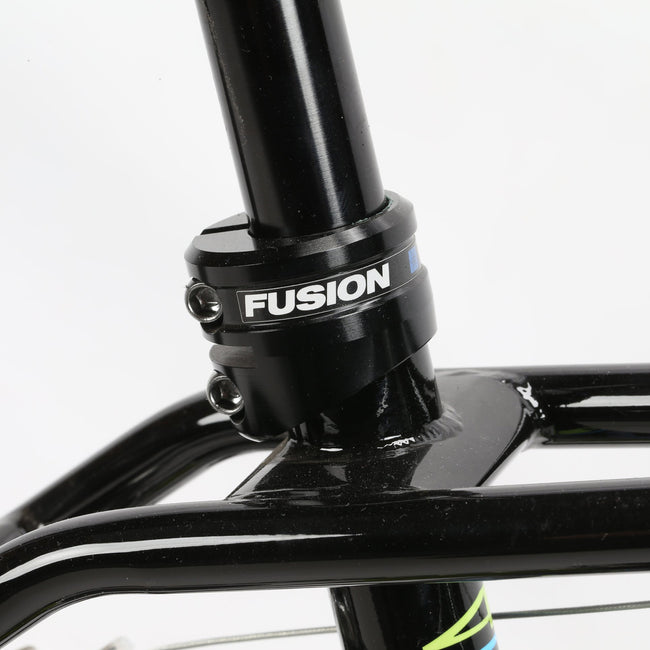

• Haro Lineage two-bolt alloy seat post clamp

SPECIFICATIONS

• COLOR: Black
• FRAME: Lineage Sport Bashguard frame - 21" full crmo; internal h/t crmo - with removable rotor tab mounting holes; welded brake mounts.
• HEADSET: Sealed Integrated, 1 1/8"
• BB: Sealed MID 22mm BB

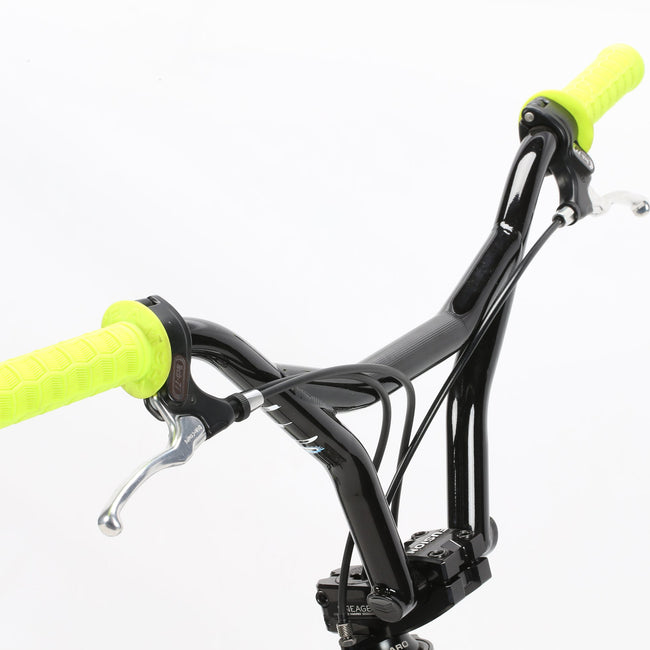

• BARS: Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted
• FORK: Haro Lineage fork with 990 mounts and internal cable routing; 33mm offset; 3/8" axle; fluted one piece cnc cr-mo steerer; tapered fluted legs with Investment cast dropouts
• STEM: Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 52mm
• GRIPS: Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft).

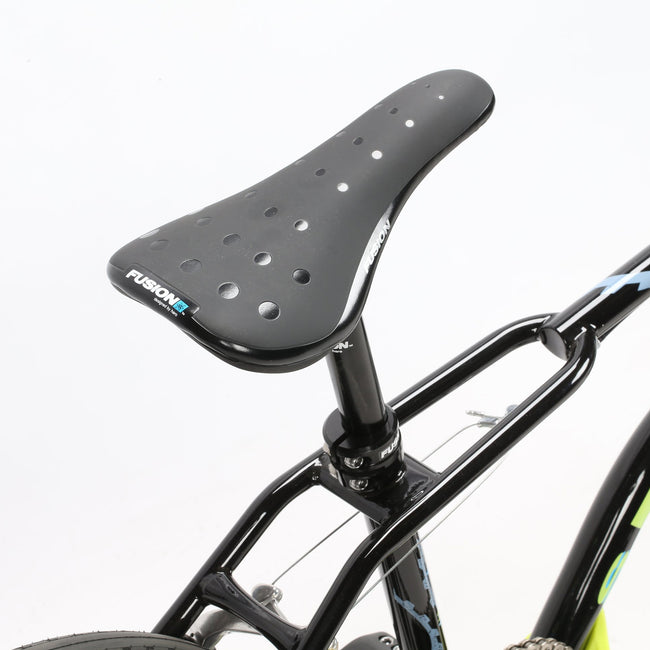

• SEAT: Haro Fusion slim stealth pivotal seat
• SEAT POST: Haro Fusion stealth pivotal seat post; 25.4 x 300mm
• CRANKS: Haro Lineage heat treated 3-piece alloy 175mm cranks (bolt drive interface) rsd and lsd; 22mm spindle

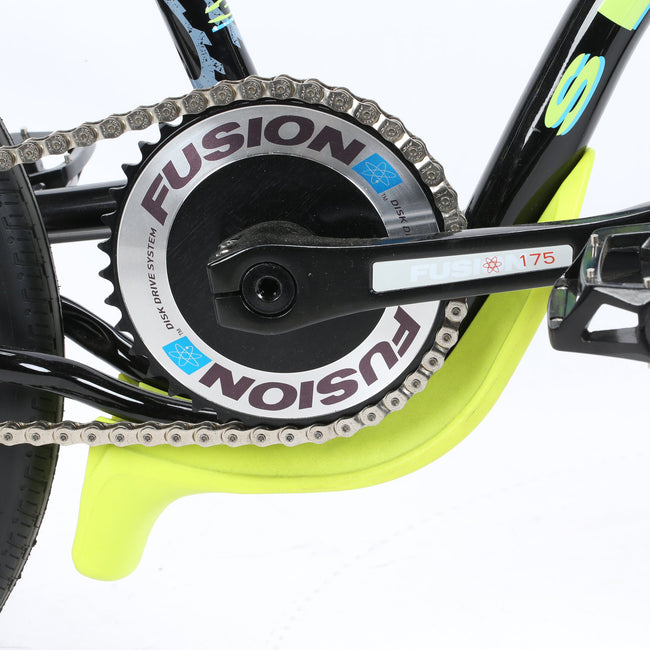

• SPROCKET: Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 39t ; solid ring w/ machined teeth, included sprocket adapter
• PEDALS: Haro Fusion; alloy pedal body; crmo axle
• FRONT WHEEL: Hub- 48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings, Rim- Fusion by Odyssey model litehouse 20x1.75"; 48h; (w200) (double wall welded joint)
• REAR WHEEL: Hub- Cassette hub (male bolt); sealed bearings; 14t driver; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts, Rim- Fusion by Odyssey model litehouse 20x1.75"; 48h; (w200) (double wall welded joint)
• TIRES: Haro HPF tire; 20x2.20; 100 max psi
• BRAKES: Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts, Lever- Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever, Rotor- Teflon bearing gyro - full cnc 6061 t6 included a-plate
• WEIGHT: TBD


GEOMETRY

• Size: 21
• A) Head Angle: 75°
• B) Seat Angle: 71.5°
• C) Top Tube: 21" (533mm)
• D) Seat Tube: 10.2" (260mm)
• E) Chainstay: 13.7" (349mm)
• F) BB Height: 11.5" (293mm)
• G) Stand Over: 21.5" (546mm)
