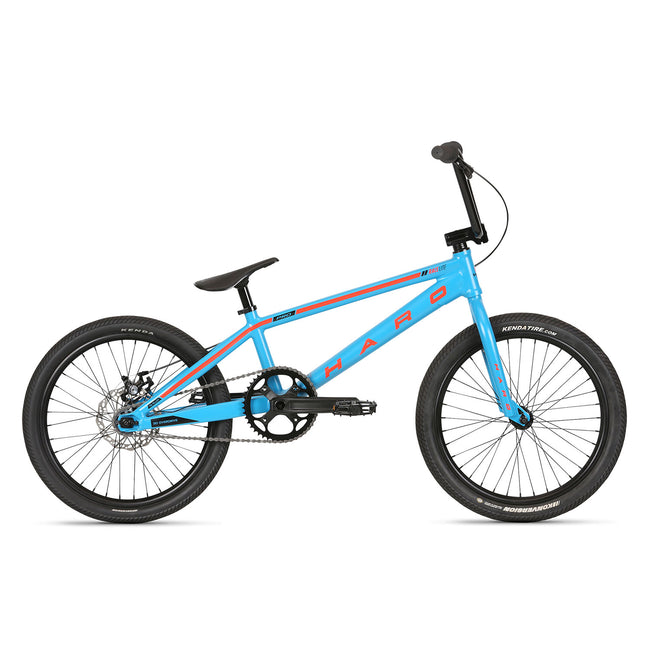

Haro Racelite Pro XL BMX Race Bike-Blue

Sold Out

About This Product: Haro Racelite Pro XL BMX Race Bike-Blue

The Haro Racelite Pro XL BMX Race Bike-Blue is from Haro’s Racelite line of mid-level complete bikes at lower-level price points. Featuring a 6061, smooth weld, alloy frame, Promax braking, and Kenda tires, this bike provides a top-notch out of box experience that will get you out on the track with minimal levels of stress.

FEATURES

  • 6061 series smooth weld alloy frame with integrated head tube, internal cable routing, 3D dropouts with integrated chain tensioners
  • PTC (Power Transfer Center), triple butted air formed top tube, over sized triple butted down tube and BB86 bottom bracket shell
  • 100% chromoly fork
  • 100% chromoly bars and Haro CNC alloy front load stem
  • 2-piece alloy cranks with sealed press fit BB86
  • Fully sealed wheels with double wall alloy rims, a sealed rear cassette hub and alloy nipples
  • Kenda Konversion tires
  • Plastic Pivotal seat with alloy post
  • Promax mechanical disc brake, 160mm rotor

SPECIFICATIONS

  • FRAME: 6061 Series Alloy PTC Disc Frame w/ Internal Headtube, Internal Cable Routing & Smooth Welding
  • FORK: Full Cr-Mo 1 1/8" Threadless w/ Tapered Legs
  • COLORS: Blue
  • WEIGHT: 21.6 lbs
  • CRANKS: 2-pc Alloy w/ 24mm Hollow Spindle, 175mm
  • BOTTOM BRACKET: Press-Fit BB86, Sealed Bearing
  • SPROCKET: 44t Alloy
  • GEARING: 44/16
  • PEDALS: DX Alloy, 9/16"
  • CHAIN: KMC Z33
  • TIRES: Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
  • FRONT HUB: Low Flange Alloy 36h, Sealed Bearing
  • REAR HUB: Alloy Disc Cassette 36h, Sealed Bearing, 6-Bolt
  • AXLE: 3/8"
  • RIMS: 20" Alloy 36h, Double Wall
  • BRAKE: Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
  • BRAKE LEVER: Promax XL-373 Two Finger
  • GRIPS: Micro-Knurl Grips
  • HANDLE BAR: Full Cr-Mo, 8" Rise
  • STEM: Forged Alloy Top-Load, 45mm Ext.
  • HEADSET: Sealed Internal 1 1/8"
  • SEAT: Haro Slim Plastic Pivotal
  • SEAT POST: Alloy Pivotal, 27.2mm
  • SEAT POST CLAMP: Alloy, 31.8mm
Haro BMX Bike Geometry Chart

GEOMETRY

  • Size: 20
  • A. Head Angle: 74°
  • B. Seat Angle: 72°
  • C. Top Tube: 21 (533 mm)
  • D. Seat Tube: 9.4 (240 mm)
  • E. Chainstay: 15.2 (387 mm)
  • F. BB Height: 11.5 (293 mm)
  • G. Stand Over: 22.1 (562 mm)

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Haro Race Bike Size Guide

Haro Race Bike Size Guide
Size Age Rider's Height
Size: Micro Mini Age: 4 - 5 Rider's Height: 3'6" - 4'
Size: Mini Age: 5 - 7 Rider's Height: 4' - 4'5"
Size: Junior Age: 7 - 9 Rider's Height: 4'5" - 4'9"
Size: Expert Age: 9 - 11 Rider's Height: 4'8" - 5'4"
Size: Expert XL Age: 11 - 12 Rider's Height: 5'3" - 5'8"
Size: Pro Age: 13+ Rider's Height: 5'6" - 5'10"
Size: Pro XL Age: 13+ Rider's Height: 5'9" - 6'
Size: Pro 24 Age: 13+ Rider's Height: 5'10" and up

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
