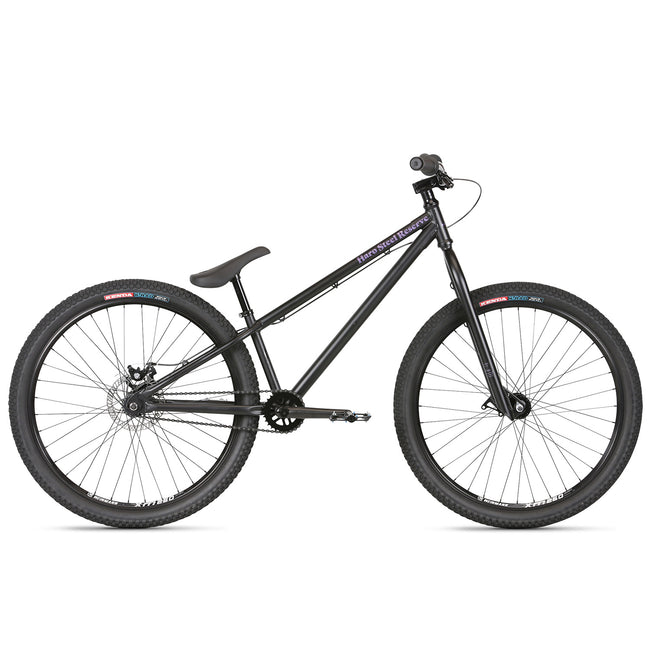

Haro Steel Reserve 1.1 26" BMX Dirt Jump Bike-Matte Black

The Haro Steel Reserve 1.1 26" BMX DJ Bike-Matte Black is a prime choice to get started in Freestyle MTB. It is equally at home at the bike parks or at local dirt jumps thanks to its full Crmo frame with internal head tube and a rigid Crmo fork with a suspension-corrected height for future upgrades. The Steel Reserve 1.1 comes with a 3-pc tubular Crmo crankset with a reduced gear size ideally suited to freestyle MTB riding. Its 26" wheelset is built with sturdy XM-260 double wall alloy rims, alloy hubs with Chromoly axles, stainless spokes and Kenda K-Rad 2.3" wide tires. Its cockpit consists of a sturdy 65mm riser handlebar and a forged alloy BMX-style stem for worry-free landings.

SPECIFICATION

• FRAME: HARO FULL CHROMOLY STEEL RESERVE FRAME | INTERNAL HEAD TUBE | 68MM THREADED BSA
• FORK: SUSPENSION CORRECTED RIGID CHROMOLY | DISC BRAKE TABS
• COLORS: Matte Black, Bali Blue
• CRANKS: Haro Chromoly 8 Spline 3-pc 28t
• PEDALS: New FPD Platform | Chromoly 9/16" axles | Replaceable Pins
• CHAIN: KMC S1 1/2" X 1/8"
• BOTTOM BRACKET: 19mm Axle w/ 4 x Sealed bearing
• FRONT DERAILLEUR: N/A
• REAR DERAILLEUR: N/A
• DERAILLEUR SHIFTER: N/A
• FREEWHEEL/CASSETTE: 14T Chromoly Cog
• TIRES: Kenda K-Rad | 26 x 2.3"
• WHEELS/RIMS: Weinmann XM260 alloy double wall | 36h
• HUBS: Pivit aluminum disc singlespeed | cassette | 36h
• BRAKES: Tektro Aries MD-M280
• BRAKE LEVERS: Tektro ML-520-RS
• GRIPS/TAPE: Haro Counterfeit
• HANDLEBAR: Haro Steel 65mm riser bar | 730mm wide | 6 Deg. back sweep
• STEM: Haro front load | Aluminum 1-1/8"
• HEADSET: VP-202-AM | 1-1/8" Aluminum | 45°X45° Semi-Cartridge Bearings
• SADDLE: Haro Padded Slim one piece seat/post
• SEAT POST: Alloy 25.4mm included w/ seat
• SEAT CLAMP: Pivit Alloy 28.6mm

GEOMETRY

• A. SEAT TUBE (C-T): 285mm (11.2")
• B. TOP TUBE (EFFECTIVE): 579mm (22.8")
• C. HEAD TUBE ANGLE: 69°
• D. SEAT TUBE ANGLE: 70°
• E. CHAINSTAY LENGTH: 399mm (15.7")
• F. BB DROP: 17.5mm (0.7")
• G. WHEELBASE: 1047mm (41.2")
• H. HEAD TUBE LENGTH: 117mm (4.6")
• I. STANDOVER: 679mm (26.7")
• J. STACK HEIGHT: 557mm (21.9")
• K. REACH: 398mm (15.7")
• L. FORK HEIGHT: 478mm (18.8")
• M. FORK OFFSET: 40mm (1.6")
• N. STEM LENGTH: 52mm
• O. BAR WIDTH: 730mm
• P. CRANK LENGTH: 170mm
