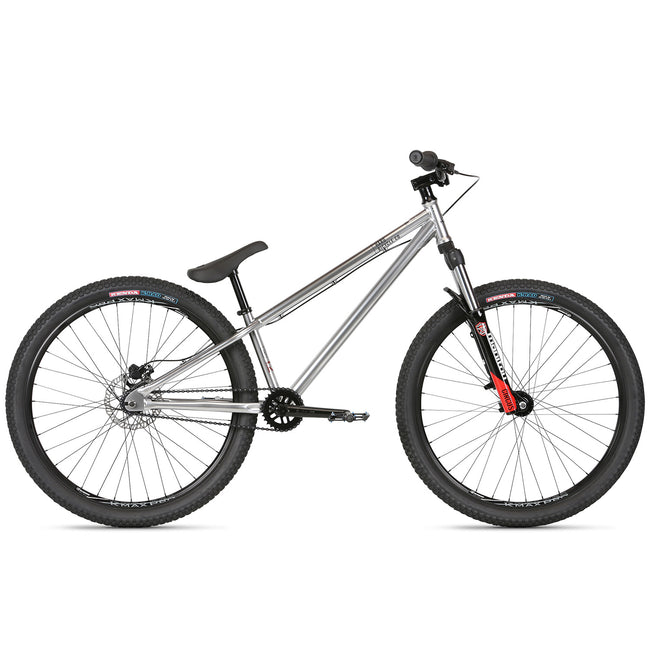

Haro Steel Reserve 1.2 26" BMX Dirt Jump Bike-Nickel

The Haro Steel Reserve 1.2 26" BMX DJ Bike-Nickel comes ready for the trails with a Manitou Circus suspension fork featuring 100mm of travel. The sturdy full Crmo frame features an internal head tube with rotor tabs option and a Euro-type BB set. Upgraded 26" K-MAX Pro double wall rims are paired with alloy hubs with Crmo axles, stainless spokes and Kenda K-Rad 2.3" wide tires. The Steel Reserve 1.2 comes with a 3-pc Crmo crankset with a reduced gear size ideally suited to freestyle MTB riding. It comes standard with a Tektro Auriga Hydraulic rear disc brake for safe braking action in all conditions.

SPECIFICATION

• FRAME: HARO FULL CHROMOLY STEEL RESERVE FRAME | INTERNAL HEAD TUBE | 68MM THREADED BSA
• FORK: MANITOU CIRCUS SPORT | 100MM TRAVEL | 9MM DROPOUTS | STRAIGHT STEEL 1-1/8" STEER TUBE
• COLORS: Nickel
• CRANKS: Haro Chromoly 8 Spline 3-pc 28t
• PEDALS: New FPD Platform | Chromoly 9/16" axles | Replaceable Pins
• CHAIN: KMC HV410 1/2" x 1/8"
• BOTTOM BRACKET: 19mm | 4 x Sealed bearing
• FRONT DERAILLEUR: N/A
• REAR DERAILLEUR: N/A
• DERAILLEUR SHIFTER: N/A
• FREEWHEEL/CASSETTE: 14T Chromoly cog
• TIRES: Kenda K-Rad | 26 x 2.3"
• WHEELS/RIMS: Weinmann KMAX Pro aluminum double wall | 36h
• HUBS: Pivit aluminum disc singlespeed cassette | 36h
• BRAKES: Tektro Auriga HD-M275 hydraulic
• BRAKE LEVERS: Tektro Auriga HD-M275
• GRIPS/TAPE: Haro Counterfeit
• HANDLEBAR: Haro Steel 65mm riser bar | 730mm wide | 6 Deg. Sweep
• STEM: Haro front load aluminum 1-1/8"
• HEADSET: VP-202-AM | 1-1/8" Aluminum | 45°X45° Semi-Cartridge Bearings
• SADDLE: Haro Padded Slim one piece seat / post
• SEAT POST: Aluminum 25.4mm included w/ seat
• SEAT CLAMP: Pivit aluminum 28.6mm

GEOMETRY

• A. SEAT TUBE (C-T): 285mm (11.2")
• B. TOP TUBE (EFFECTIVE): 579mm (22.8")
• C. HEAD TUBE ANGLE: 69°
• D. SEAT TUBE ANGLE: 70°
• E. CHAINSTAY LENGTH: 399mm (15.7")
• F. BB DROP: 17.5mm (0.7")
• G. WHEELBASE: 1047mm (41.2")
• H. HEAD TUBE LENGTH: 117mm (4.6")
• I. STANDOVER: 679mm (26.7")
• J. STACK HEIGHT: 557mm (21.9")
• K. REACH: 398mm (15.7")
• L. FORK HEIGHT: 478mm (18.8")
• M. FORK OFFSET: 40mm (1.6")
• N. STEM LENGTH: 52mm
• O. BAR WIDTH: 730mm
• P. CRANK LENGTH: 170mm
