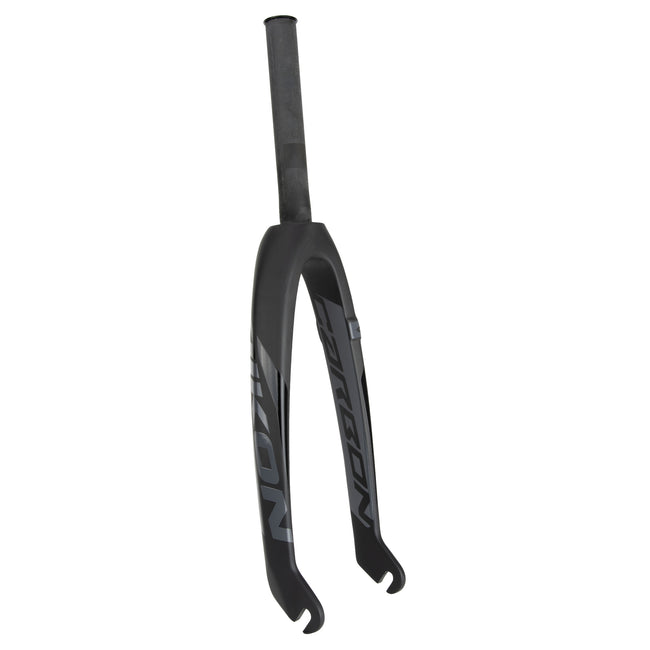

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 1

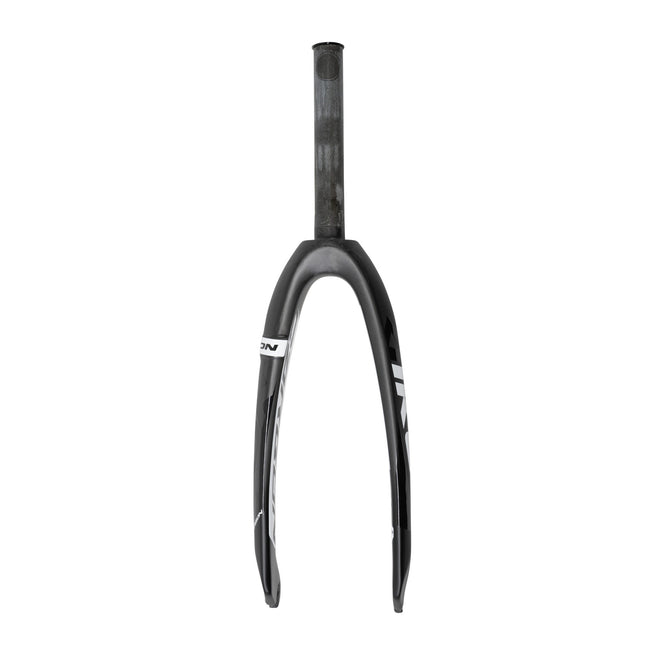

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 2

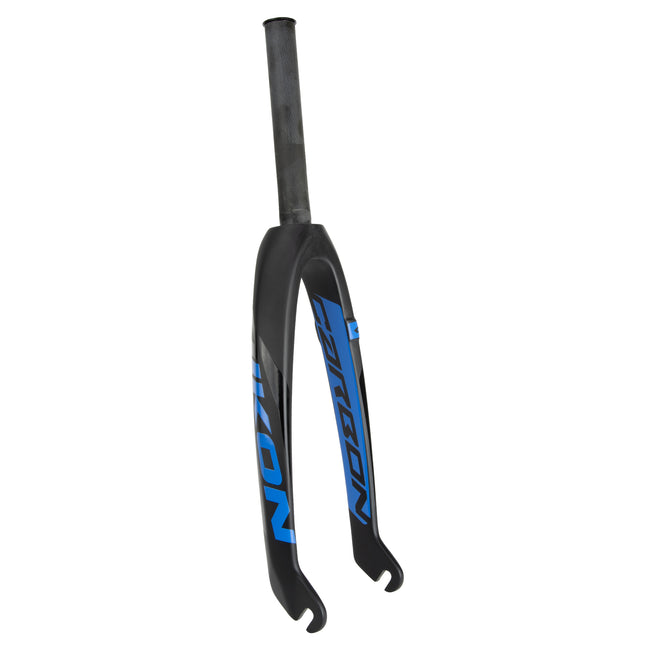

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 3

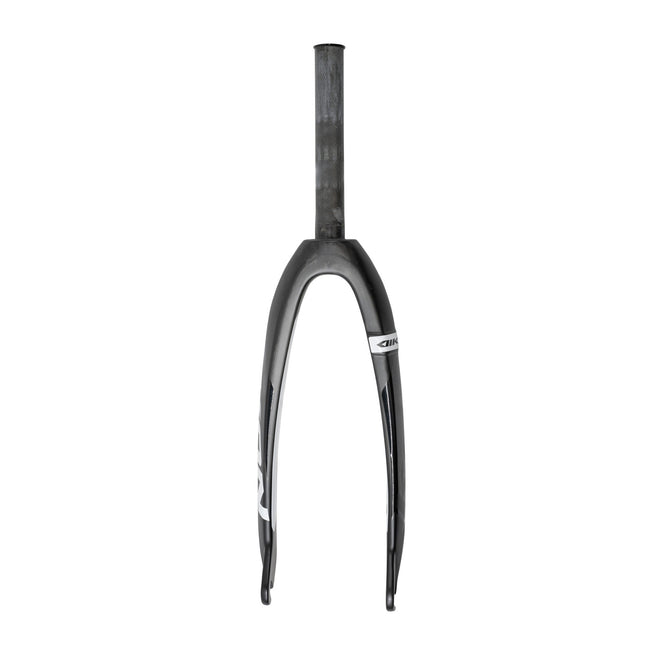

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 4

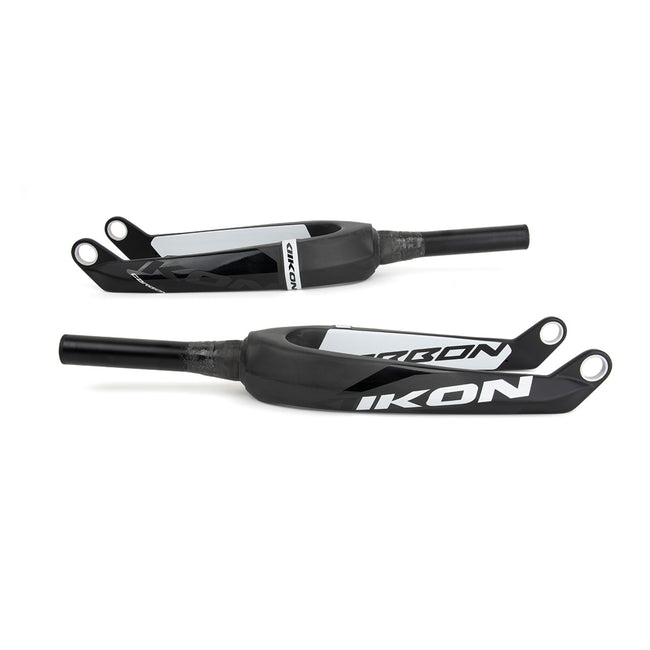

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 5

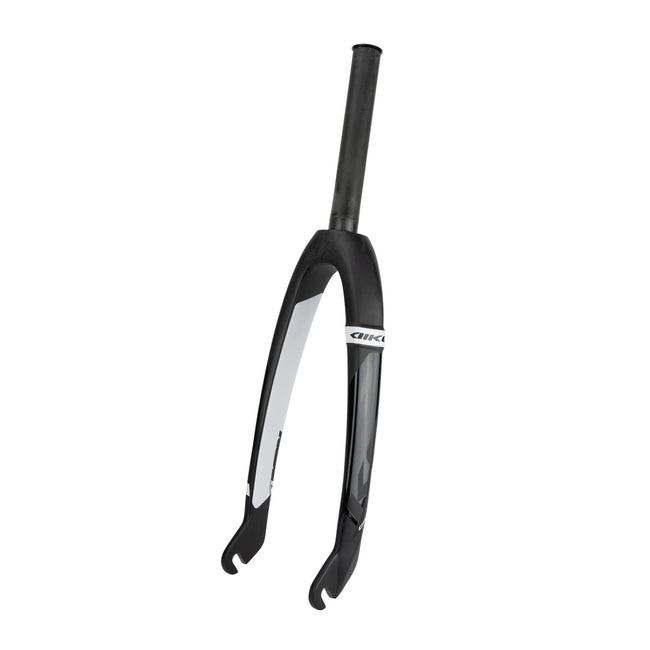

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 6

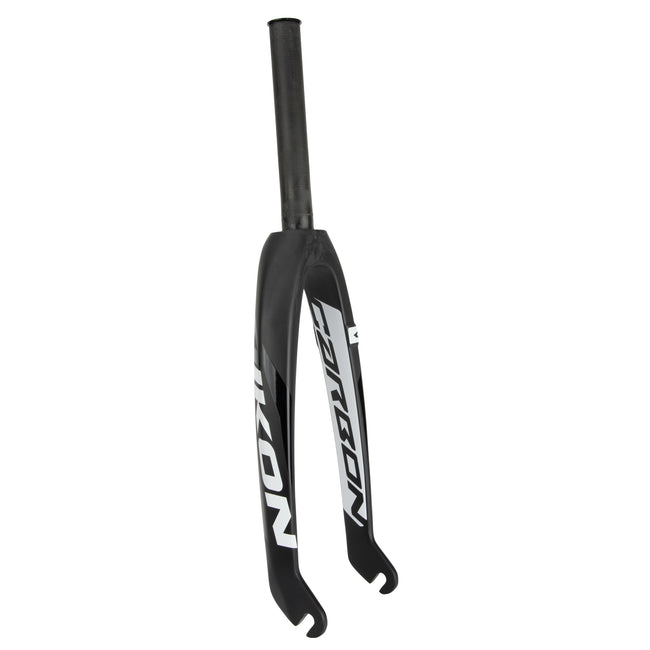

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 7

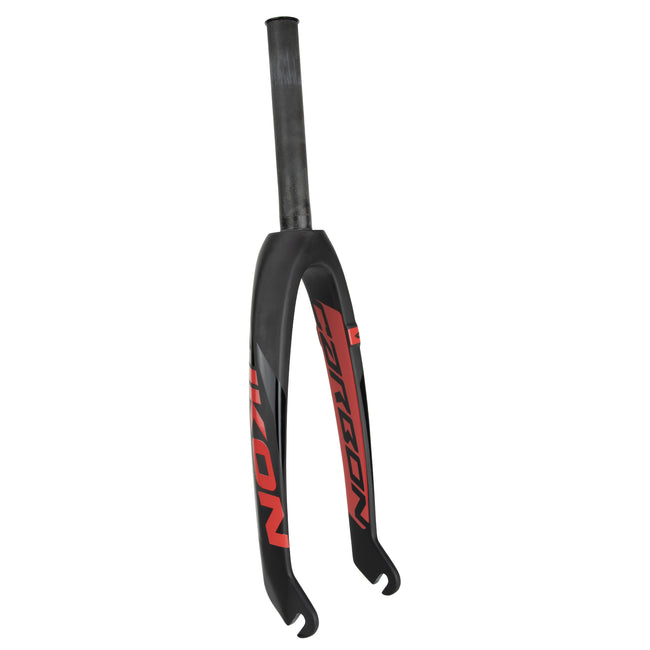

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 8
IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm - 9

IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm

Save 18%
$329.88 $399.95
  • Black/Blue
Secure Checkout

About This Product: IKON Mini/Junior Carbon BMX Race Fork-20"-1"-10mm

The IKON BMX Mini/Junior Carbon BMX Fork-20"-1"-10mm is the ultimate race fork for younger BMX riders thanks to its lightweight durability. Crafted with full Toray UD Carbon construction, including the steer tube and 10mm dropouts, this fork is incredibly lightweight. Enhanced with an integrated threaded Alloy insert and a 7075T6 Alloy lock cap, the IKON Mini/Junior Carbon Fork ensures exceptional durability.

SPECIFICATIONS

  • IKON unique designed Tapered fork legs, with embossed features on the legs.
  • 1” Full Toray UD Carbon Steer Tube  - 165mm in length
  • 305mm axle-to-crown
  • 28mm drop-out offset
  • 10mm Carbon dropouts
  • 304 Grams or 10.7 oz fork weight

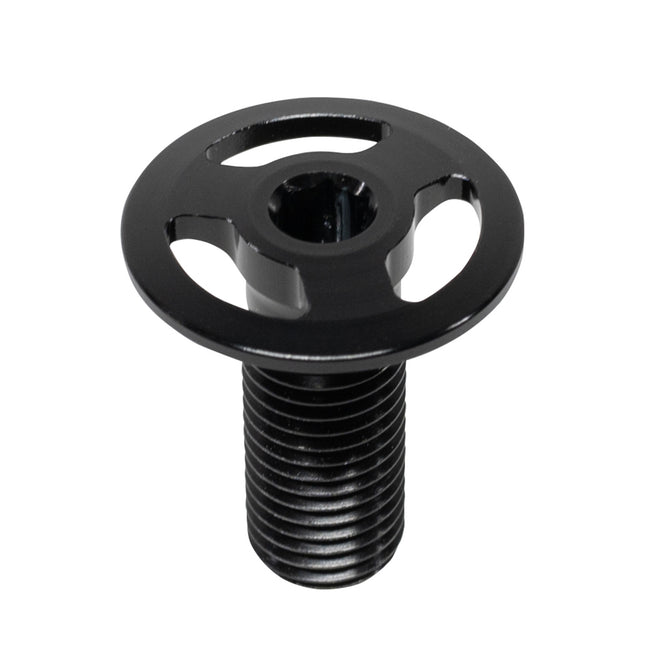

  • 0.3 oz or 8 Gram Anodized Black 7075T6 Alloy top-cap weight
  • Rider Weight Limit : 99 lbs / 45 Kg
  • Maximum axle tightening torque : 6 N.m

NOTE: Fork works with 1” internal Diameter Headset. - Many Headsets in the 1” internal diameter bearing size are offered for both 1” or 1 1/8th head tubes. Check with your frame specs when ordering a headset. Lower Bearing Race is needed to be used with the 1” IKON fork.

IKON CARBON STEER TUBE TORQUE SPEC INFO: We advise to use a torque wrench when installing the IKON fork and tighten to 5Nm. If the stem’s side bolts are over-tightened, you maybe able to /damage the carbon steerer tube.
