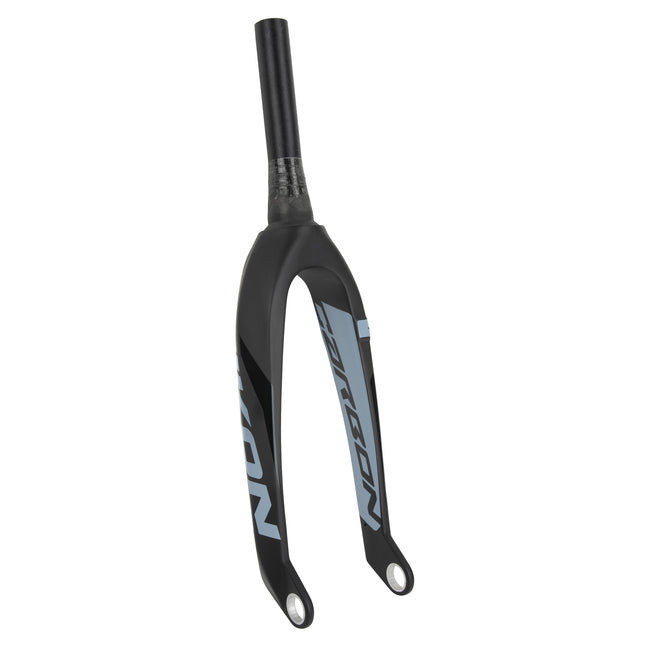

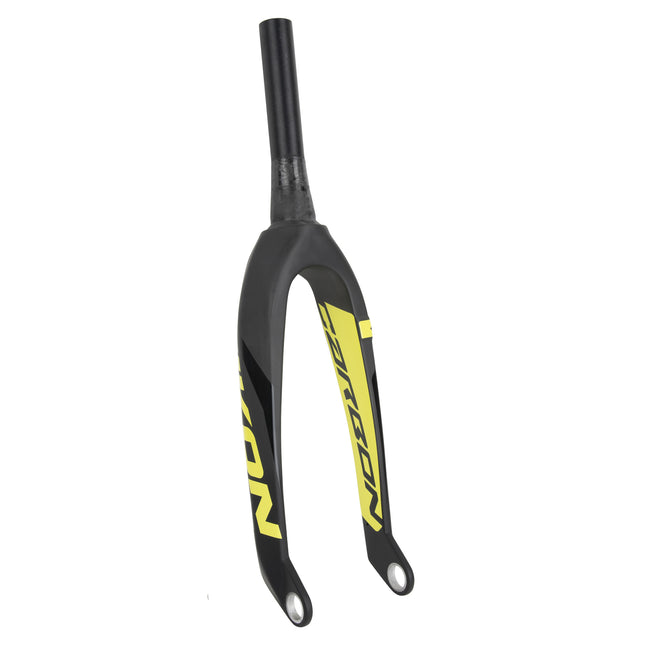

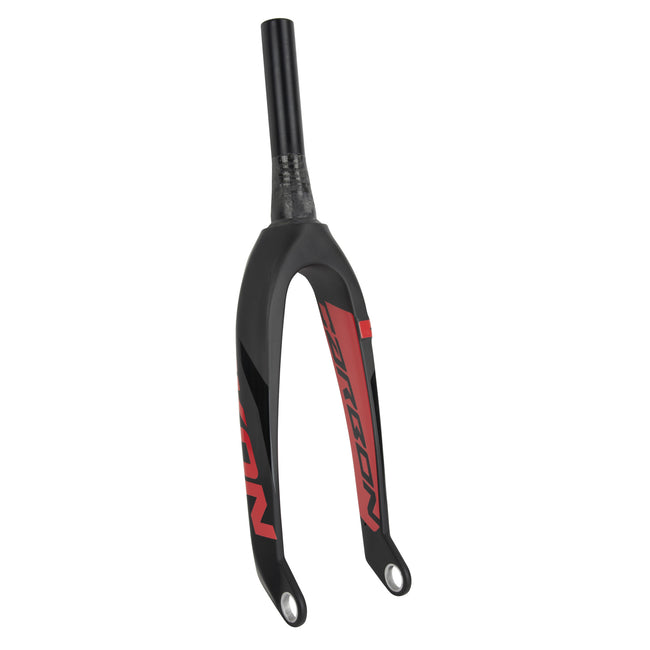

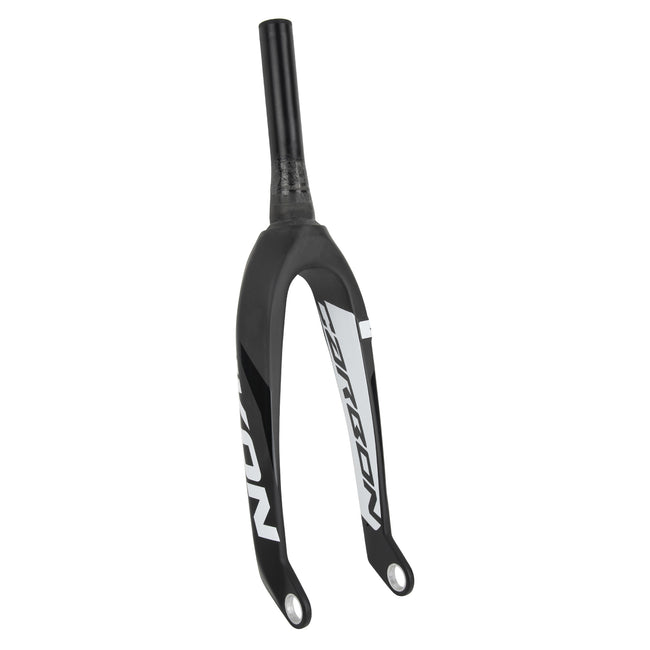

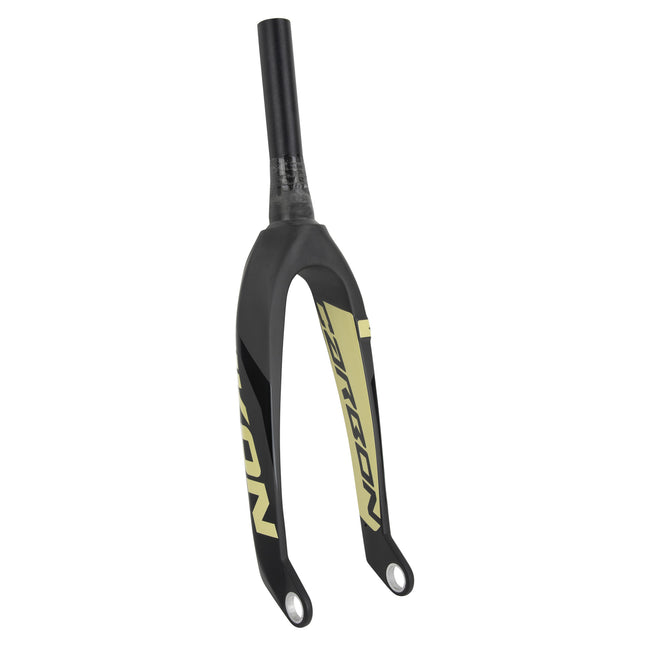

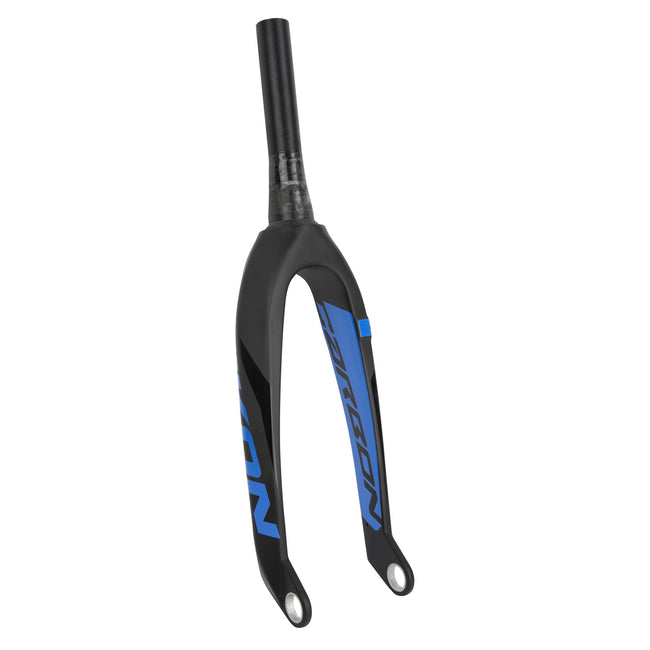

IKON Pro Tapered Carbon BMX Race Fork-20"-1 1/8-1.5"-20mm

The IKON BMX Pro Tapered Carbon Fork-20"-20mm is a serious high-end carbon fork designed for competitive riders, or to help set you on your path to being competitive. While these forks are made for 20mm axles, you can purchase adapters to let you run 10mm. The tapered steer tube is made of 7075-T6 aluminum and features and integrated fork crown race for 45° bearing so there is no need for a headset crown race. Score! Keeping with the self-contained features, the steer tube has internal threads for the included top cap. If you are ready for a serious fork, this is the one.

FEATURES

• Uni Directional Toray T700 Carbon Fiber weave
• Aero Tapered fork legs and aero rear spoiler
• Tapered 1-1/8″ to 1.5″ 7075 Aluminum steer tube
• Oversized crown construction bonded and keyed into the carbon crown
• Reinforced 6061 Aluminum 20mm Dropouts bonded and keys into the carbon legs

SPECIFICATIONS

• MATERIAL: Toray UD Carbon fiber
• STEERER MATERIAL: 7075-T6 Aluminium – 6mm thick
• THREADLESS STEER TUBE: 1-1/8" top – 1.5" bottom, Integrated fork race built in for 45° bottom bearing
• STEER TUBE LENGTH : 173mm
• DROPOUTS: CNC Machined 6061-T6 Aluminium
• AXLE : 20mm Thru (112mm length suggested)
• AXLE TO CROWN: 305mm
• OFFSET: 31mm
• WEIGHT: 626 g / 22 oz
• IKON 7075-T6 Alloy M18 Top Cap included
