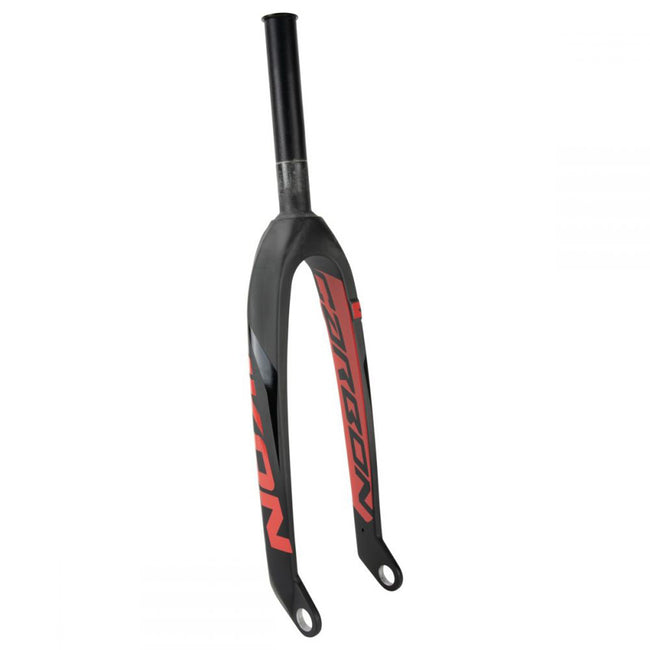

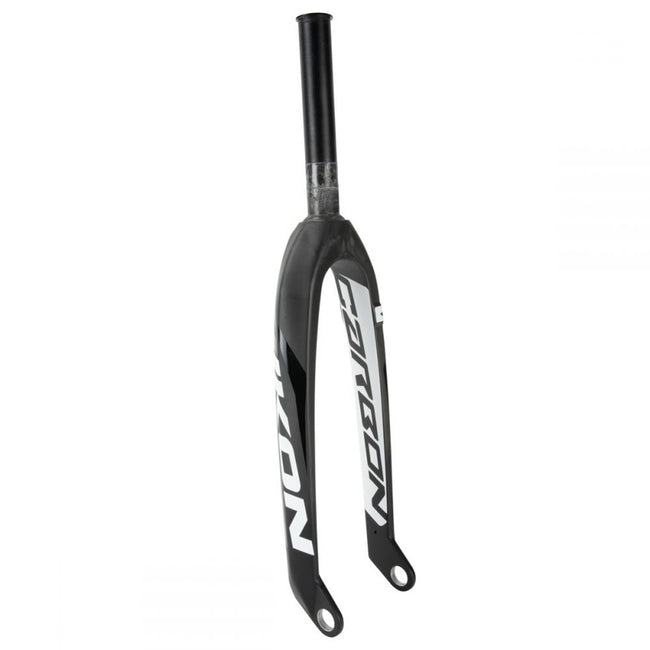

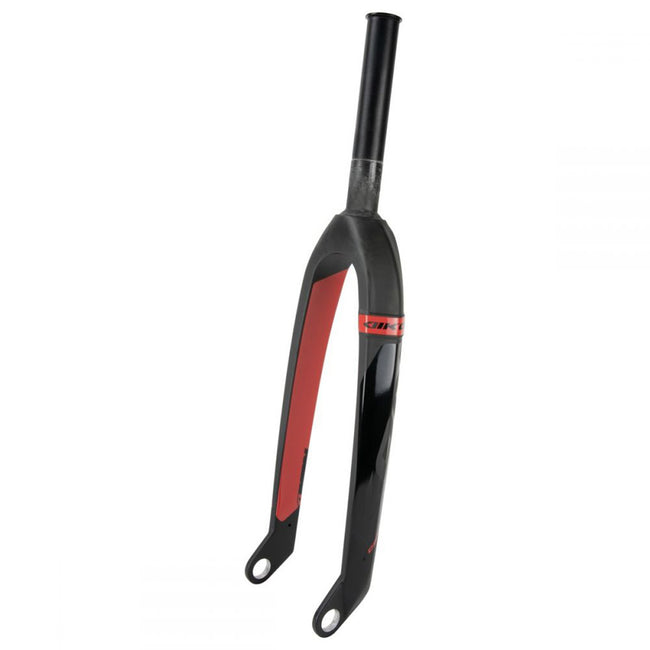

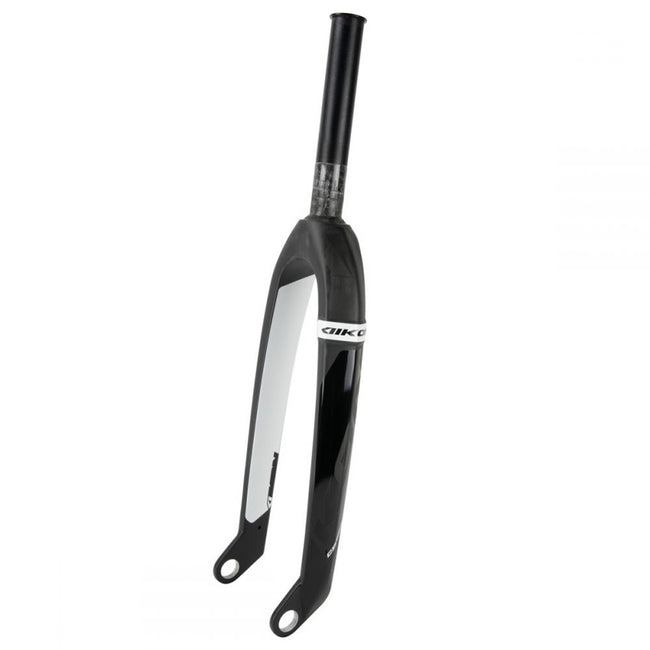

IKON Pro Integrated Carbon BMX Race Fork-24"-1-1/8"-20mm

The IKON Pro Integrated Carbon BMX Race Fork-24"-1-1/8"-20mm blends advanced engineering and lightweight agility for the perfect balance in BMX race performance. Crafted from Uni Directional Toray T700 Carbon Fiber weave, it provides optimal strength and aerodynamic efficiency. With features like Aero Tapered legs and reinforced 6061 Aluminum 20mm Dropouts, this fork ensures top speeds and stability on the track. Weighing just 574g (20.3 oz) without the top cap, it exemplifies precision and performance in a compact package.

Features:

• Uni Directional Toray T700 Carbon Fiber weave
• Aero Tapered fork legs and aero rear spoiler
• 1-1/8″ 7075 Aluminum steer tube
• Oversized crown construction bonded and keyed into the carbon crown
• Reinforced 6061 Aluminum 20mm Dropouts bonded and keys into the carbon legs

Specifications:

• Material: Toray UD Carbon fiber Matte Natural Hand Laid Carbon Finish
• Steer Tube Material: 7075-T6 Aluminium-7mm thickness
• Threadless steer tube: 1-1/8
• Fork: Integrated fork race built in for 45degree bottom bearing - No additional fork race needed
• Steer tube length: 172mm
• Dropouts: CNC Machined 6061-T6 Aluminium
• Dropout Axle: 20mm Thru (112mm length suggested) - Optional 20mm to 10mm 3/8 adapters available
• Axle to crown: 353.5mm - 24”
• Offset: 31mm
• Weight: 24" Fork 20.3 OZ / 574 Grams, or 1.2 LBS (without top cap)
