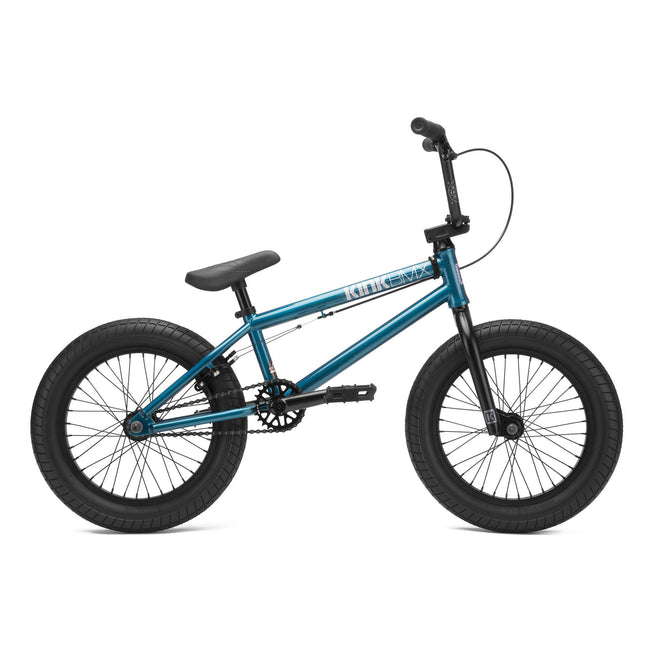

Kink Carve 16" BMX Bike-Gloss Digital Teal

The Kink 2021 Carve 16" BMX Bike-Gloss Digital Teal bike is the younger sibling of our Kicker 18", and it ensures every age and every height rider can find a perfect-fitting Kink bike. Kids are getting into BMX younger and younger, and we love it. The 2021 Carve comes in a great Gloss Digital Teal color, which is complemented by black components throughout.

Properly proportioned geometry and components create a modern, yet comfortable ride, suited for the rider who isn’t ready for the bump up to a larger 18" bike yet. Still stacked with great parts, the 2021 Carve comes with 7" Kink T700 bars, a short reach 40mm Mission topload stem, rock solid 3-piece tubular chromoly cranks with sealed Mid bottom bracket, a sealed integrated headset, and modern tread design 2.4" tires.

GEOMETRY

• Toptube Length: 16.5"
• Chainstay Length: 11.25"
• Headtube Angle: 74.5°
• Seattube Angle: 71°
• Standover Height: 6.75″
• Bottom Bracket Height: 9.75"
• Fork Offset: 32mm

TECH SPECS

• FRAME: Kink Carve 100% Hi-Ten Steel
• PEDALS: Kink Hemlock
• FORK: Kink Stryker 4130 Chromoly Steerer Tapered Fork Legs
• CHAIN: Mission 410
• BARS: Kink T700 7” 100% Hi-Ten Steel
• SPROCKET: Mission Rank 25T

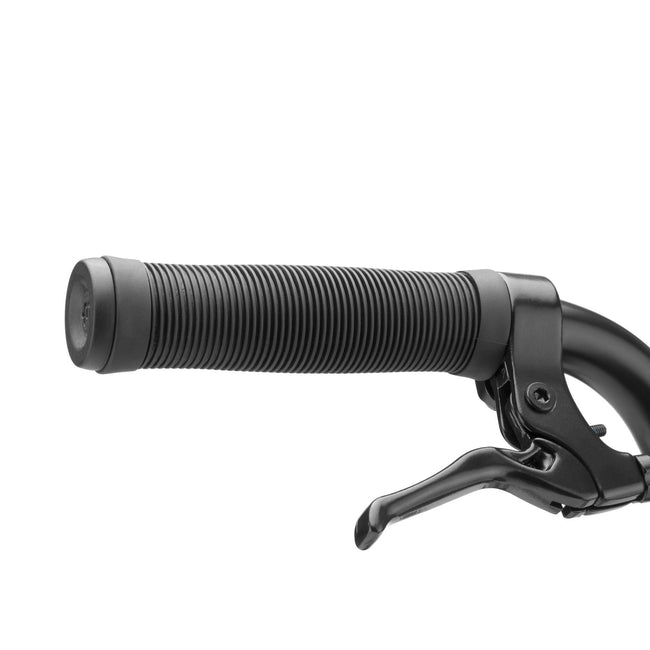

• GRIPS: Mission Helix Mini

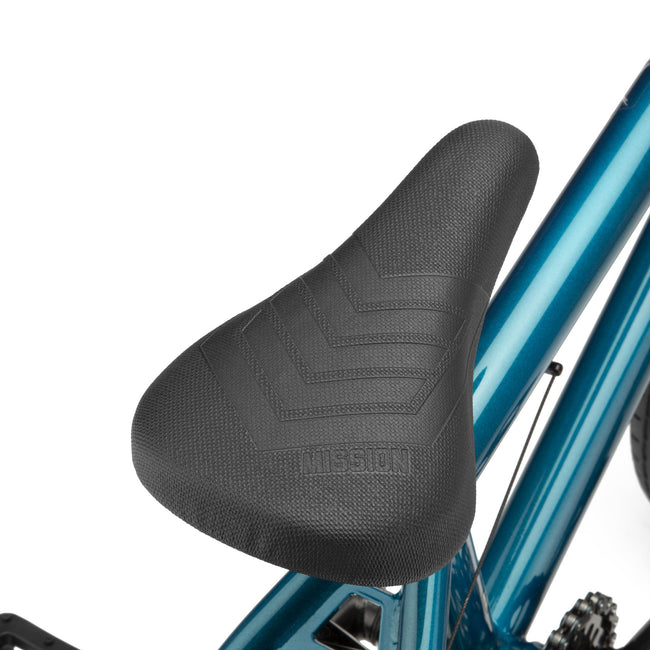

• SEAT: Mission Cypress Mini Combo

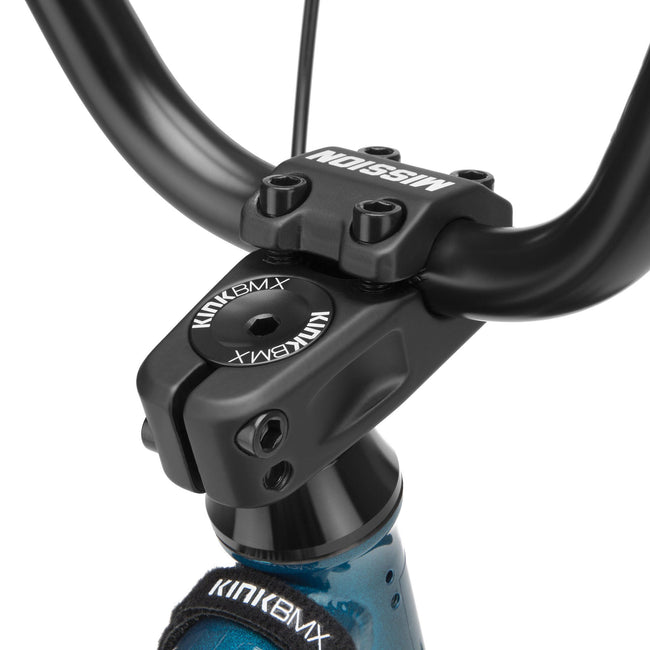

• STEM: Mission Topload 40mm
• SEAT POST: Mission Combo Steel Post
• HEADSET: Mission Sealed Integrated (41.8 x 45)
• SEAT CLAMP: Mission Slim Clamp
• BRAKE LEVER: Mission Mini
• FRONT HUB: Mission Covert Unsealed 3/8″ Axle
• BRAKE CABLE: Mission L1 Linear
• REAR HUB: Mission Function Semi-Sealed Cassette 14mm
• BRAKES: Mission Cease V2
• DRIVER: 9T

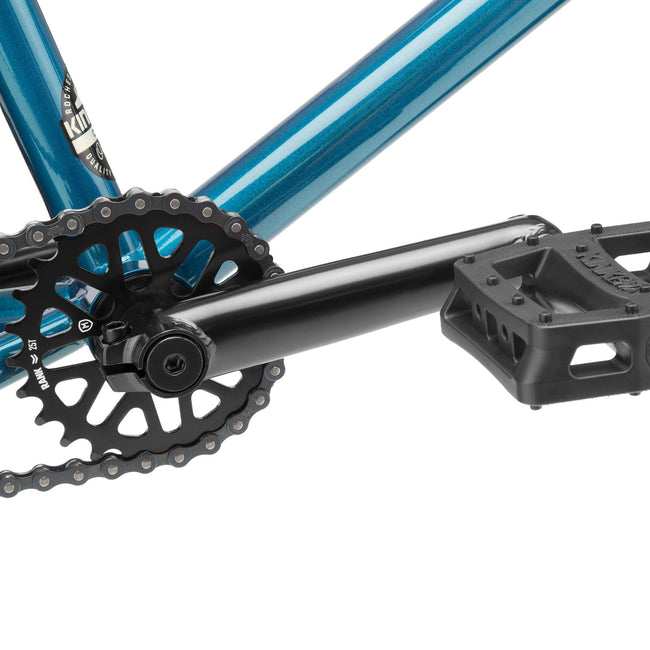

• CRANKS: Mission Triumph 3pc Tubular Chromoly 140mm – 8 Spline
• RIMS: Mission X7
• BOTTOM BRACKET: Sealed Mid 19mm

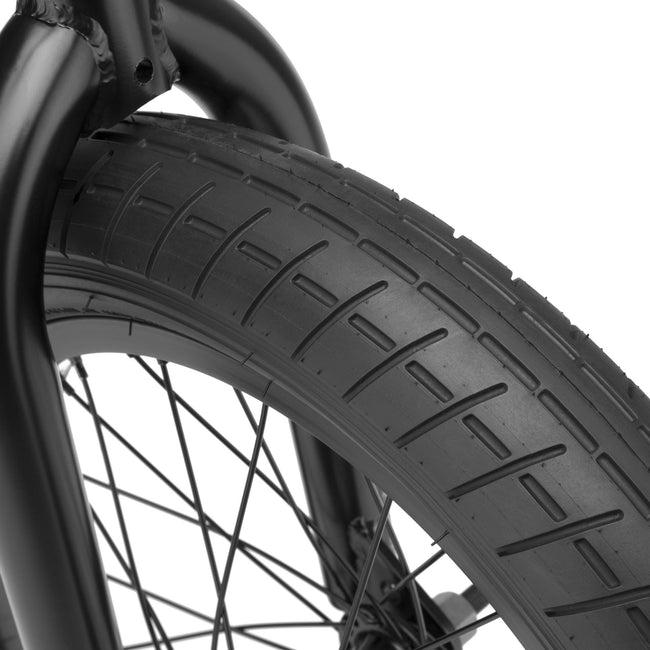

• TIRES: Mission Tracker 16x2.4"
• PEGS: N/A
• WEIGHT: 22lb 9oz
