Kink Curb 20"TT BMX Freestyle Bike-Gloss Blood Orange

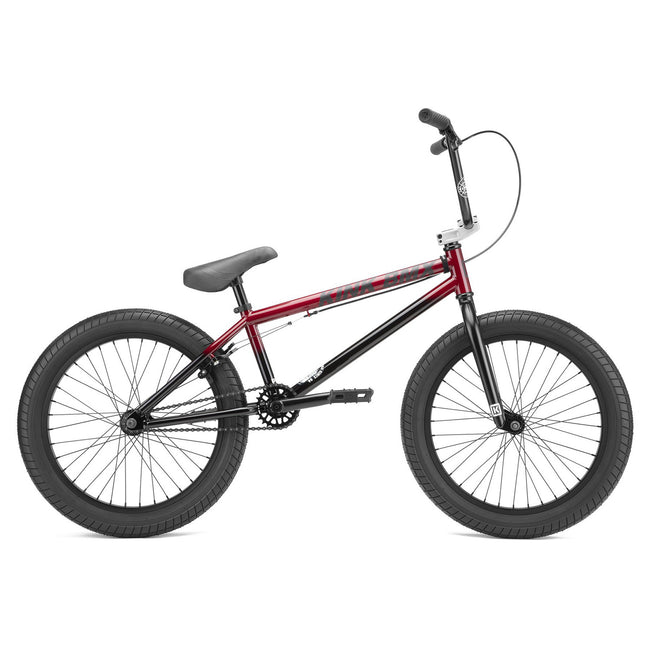

The Kink 2022 Curb 20"TT BMX Freestyle Bike-Gloss Blood Orange has a leading edge frame geometry that looks and rides like a pro bike. For the rookie rider this bike offers unmatched components, but at an accessible price point. Included in the package are 8.75 inch Kink T875 handlebars, a Mission Control TL stem, Kink Paragon grips with push in Kink Thrust bar ends, and three piece chromoly cranks. A great first bike for any new rider.

SPECIFICATIONS

• FRAME: Kink Curb 100% Hi-Ten Steel
• PEDALS: Kink Hemlock
• FORK: Kink Lance 100% Hi-Ten Steel Tapered Fork Legs
• CHAIN: Mission 410
• BARS: Kink T875 8.75" 100% Hi-Ten Steel
• SPROCKET: Mission Rank 25T

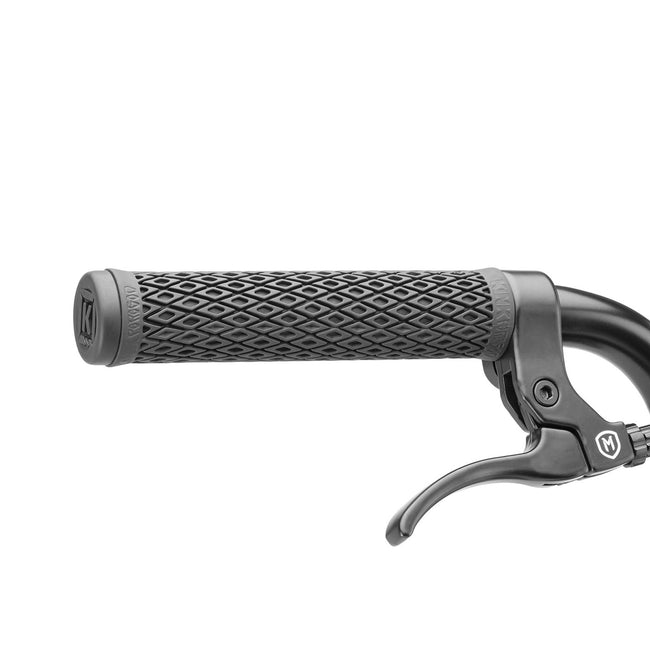

• GRIPS: Kink Paragon, Thrust Barends

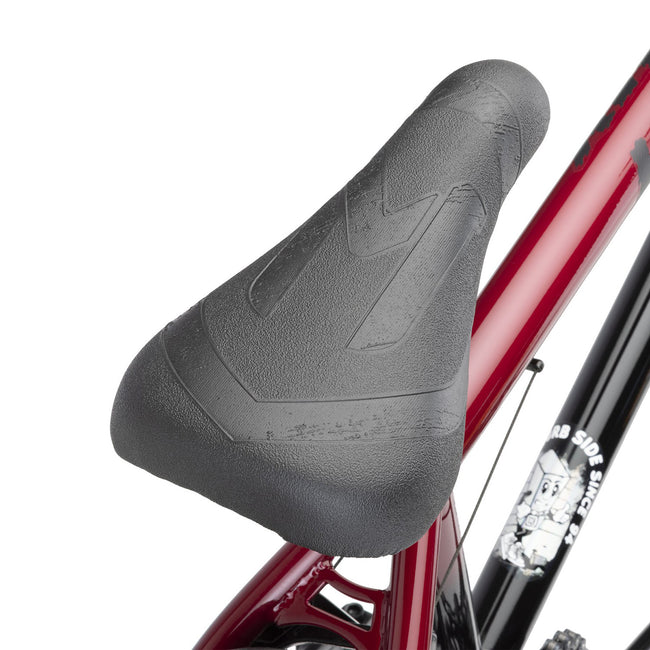

• SEAT: Mission Warsaw Combo

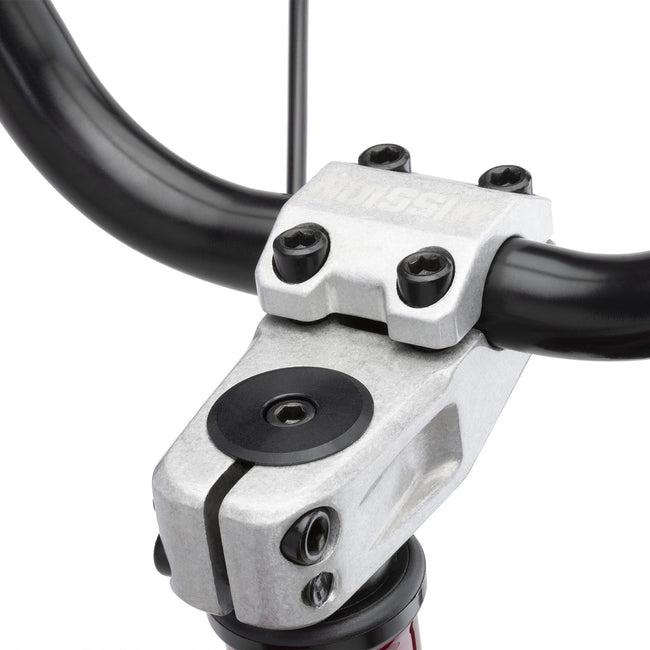

• STEM: Mission Control TL 50mm
• SEAT POST: Mission Combo Steel Post
• HEADSET: Standard 1 1/8" Threadless
• SEAT CLAMP: Mission Slim Clamp
• BRAKE LEVER: Mission Token
• FRONT HUB: Mission Reserve Unsealed 3/8" Axle
• BRAKE CABLE: Mission L3 Linear
• REAR HUB: Mission Function Semi-Sealed Cassette 14mm
• BRAKES: Mission Cease V2
• DRIVER: 9T

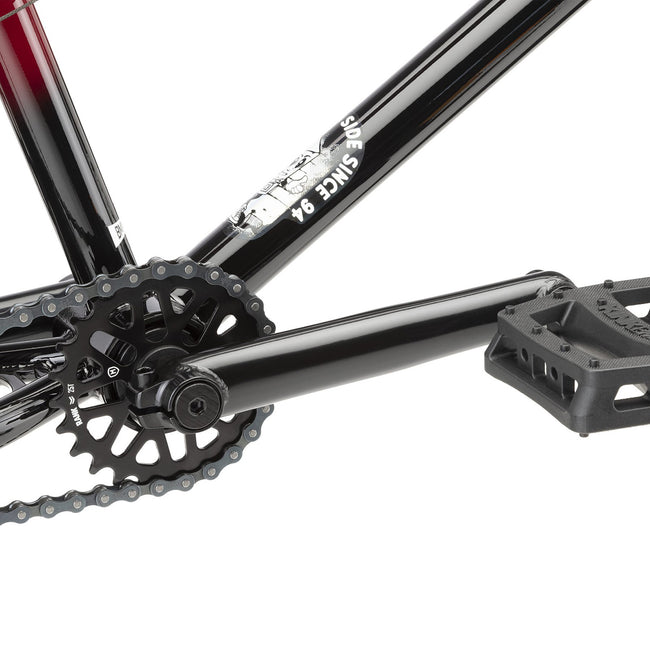

• CRANKS: Mission Triumph 3pc Tubular Chromoly 170mm - 8 Spline
• RIMS: Mission X7
• BOTTOM BRACKET: Unsealed American 19mm

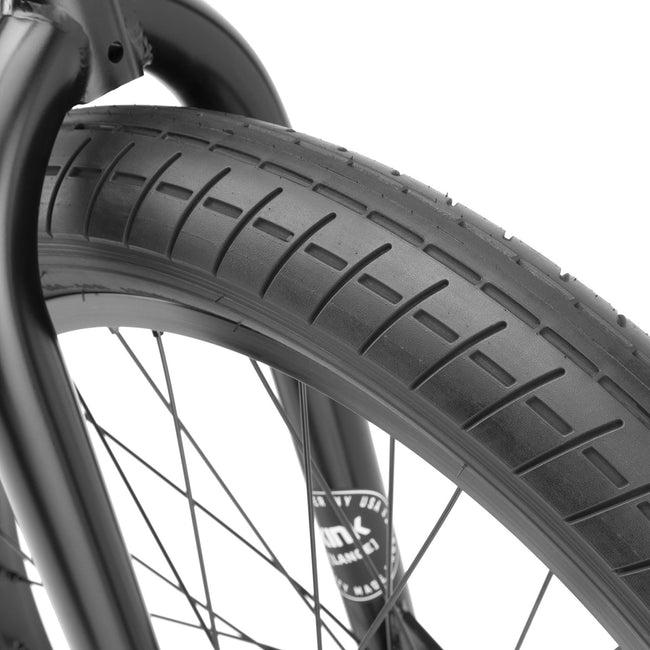

• TIRES: Mission Tracker 2.4"
• PEGS: N/A
• WEIGHT: 27lb 1oz

GEOMETRY

• Toptube Length: 20"
• Chainstay Length: 13.25"
• Headtube Angle: 74.5°
• Seattube Angle: 71°
• Standover Height: 8.5"
• Bottom Bracket Height: 11.6"
• Fork Offset: 32mm
