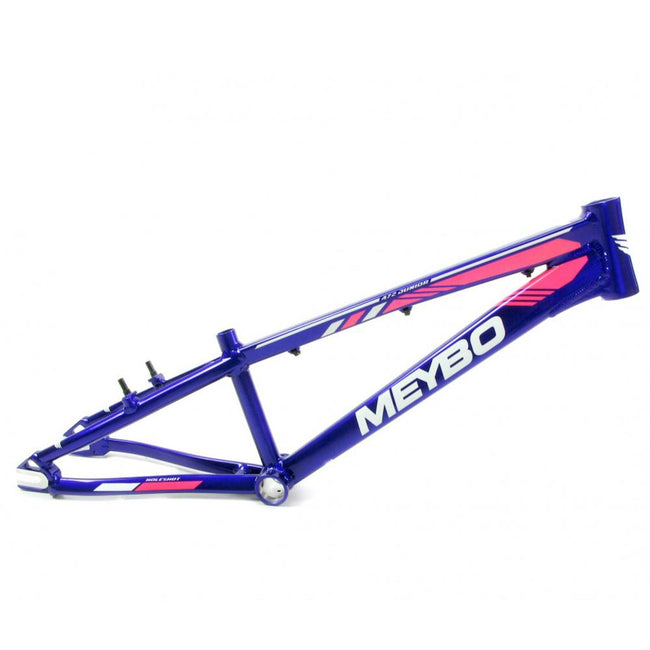

Meybo Holeshot Alloy BMX Race Frame-Purple/White - 1

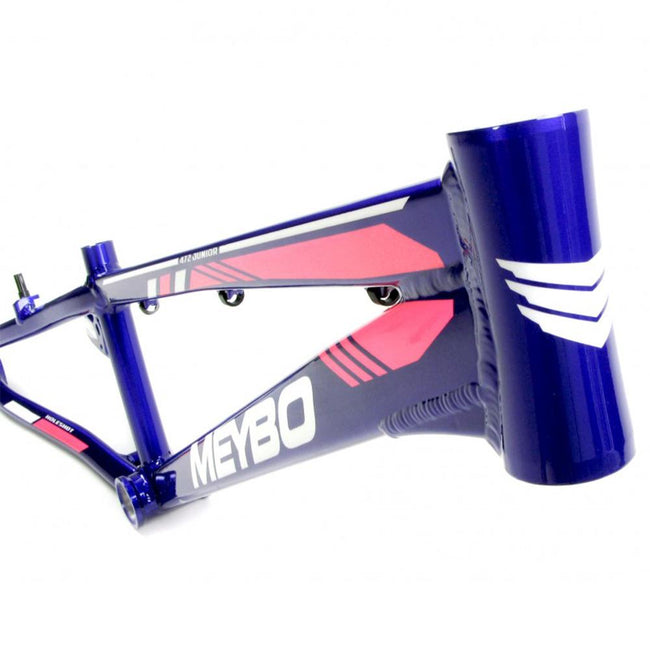

Meybo Holeshot Alloy BMX Race Frame-Purple/White - 2

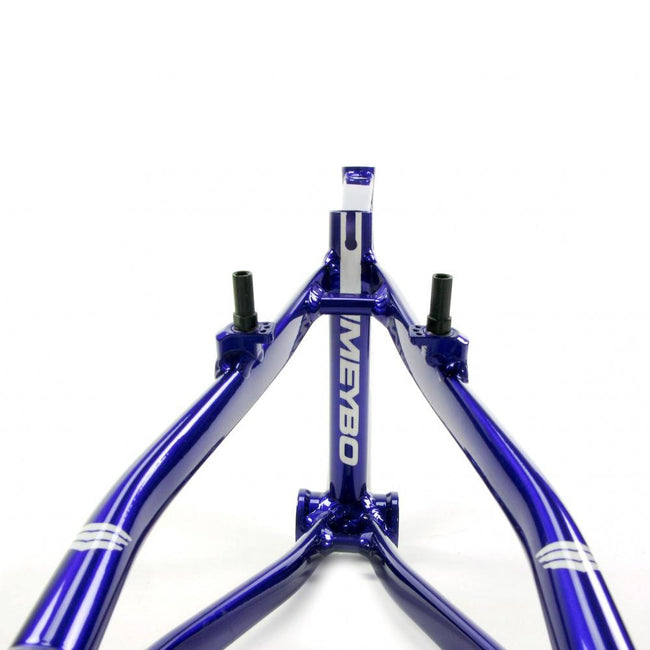

Meybo Holeshot Alloy BMX Race Frame-Purple/White - 3
Meybo Holeshot Alloy BMX Race Frame-Purple/White - 4
Meybo Holeshot Alloy BMX Race Frame-Purple/White - 5
Meybo Holeshot Alloy BMX Race Frame-Purple/White - 6

Meybo Holeshot Alloy BMX Race Frame-Purple/White

Sold Out

About This Product: Meybo Holeshot Alloy BMX Race Frame-Purple/White

The Meybo Bicycles Holeshot BMX race frames are constructed out of 6061 T-6 aluminum tubing that is square tapered and multi-butted for the ultimate strength and rigidity while keep the frame light and aggressive. The Meybo Bicycle line of Holeshot frames are the official race frame of the Dutch National Team and the performance has been proven on tracks around the world.

NOTE: Please note the specific headset and bottom bracket required for each frame.  The Pro XL frames and larger require the BB30 bottom bracket which are available for your specific crank.  The closed drop outs on these sizes require the use of a female axle hub or a hub with a thru axle.

Meybo Frame Size Charts

SIZING

Size Top Tube Down Tube Chainstay Head Tube Angle Seat Post Angle Head Tube Seat Post Dropout Bracket Weight
Size: Mini Top Tube: 17.583" Down Tube: 18.575" Chainstay: 12.992" Head Tube Angle: 73.0° Seat Post Angle: 69.2° Head Tube: 1" Seat Post: 22.2mm Dropout: 10mm Bracket: EU Weight: 40.92 oz
Size: Junior Top Tube: 18.634" Down Tube: 19.575" Chainstay: 13.386" Head Tube Angle: 73.5° Seat Post Angle: 70.7° Head Tube: 1" Seat Post: 22.2mm Dropout: 10mm Bracket: EU Weight: 42.68 oz
Size: Expert Top Tube: 19.508" Down Tube: 20.665" Chainstay: 13.583" Head Tube Angle: 73.5° Seat Post Angle: 69.8° Head Tube: 1 1/8" Seat Post: 25.4mm Dropout: 10mm Bracket: EU Weight: 48.64 oz
Size: Expert-XL Top Tube: 20.512" Down Tube: 21.520" Chainstay: 13.780" Head Tube Angle: 73.5° Seat Post Angle: 71.6° Head Tube: 1 1/8" Seat Post: 25.4mm Dropout: 10mm Bracket: EU Weight: 48.84 oz
Size: Pro-L Top Tube: 20.890" Down Tube: 21.681" Chainstay: 14.252" Head Tube Angle: 74.0° Seat Post Angle: 73.8° Head Tube: Tap 1.5" Seat Post: 27.2mm Dropout: 15mm Bracket: BB30 Weight: 54.50 oz
Size: Pro-XL Top Tube: 21.260" Down Tube: 21.902" Chainstay: 14.843" Head Tube Angle: 74.0° Seat Post Angle: 74.1° Head Tube: Tap 1.5" Seat Post: 27.2mm Dropout: 15mm Bracket: BB30 Weight: 57.14 oz
Size: Pro-XXL Top Tube: 21.732" Down Tube: 22.240" Chainstay: 15.197" Head Tube Angle: 74.0° Seat Post Angle: 74.4° Head Tube: Tap 1.5" Seat Post: 27.2mm Dropout: 15mm Bracket: BB30 Weight: 57.57 oz
Size: Pro-XXXL Top Tube: 22.244" Down Tube: 22.770" Chainstay: 15.354" Head Tube Angle: 74.0° Seat Post Angle: 75.6° Head Tube: Tap 1.5" Seat Post: 27.2mm Dropout: 15mm Bracket: BB30 Weight: 58.55 oz
Size: Pro-XXXXL Top Tube: 22.740" Down Tube: 23.693" Chainstay: 15.591" Head Tube Angle: 74.0° Seat Post Angle: 76.3° Head Tube: Tap 1.5" Seat Post: 27.2mm Dropout: 15mm Bracket: BB30 Weight: 59.61 oz
Size: Cruiser Top Tube: 22.040" Down Tube: 23.693" Chainstay: 15.157" Head Tube Angle: 74.0° Seat Post Angle: 66.3° Head Tube: Tap 1.5" Seat Post: 27.2mm Dropout: 15mm Bracket: BB30 Weight: 63.14 oz

Meybo Bike Sizing Chart

Subrosa Bike Sizing Chart

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
