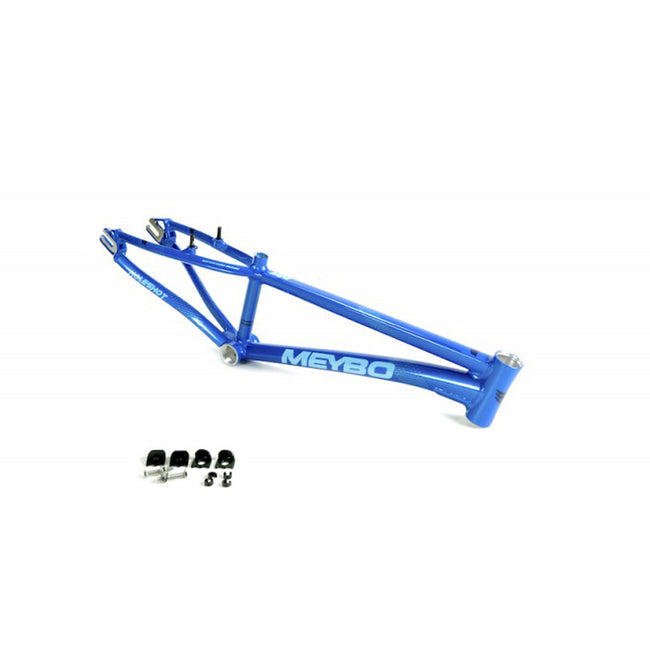

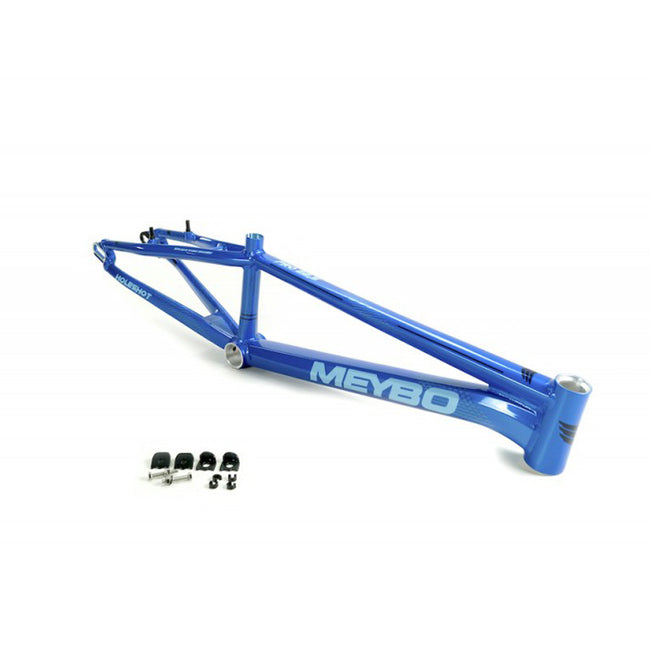

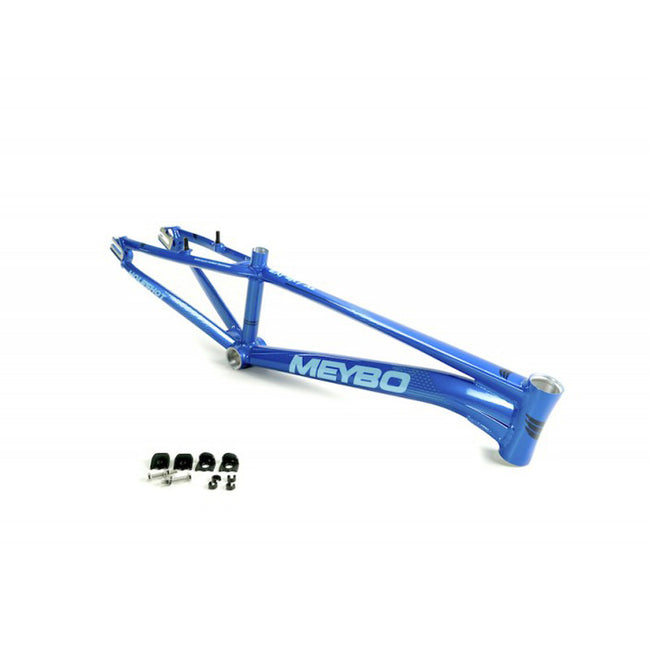

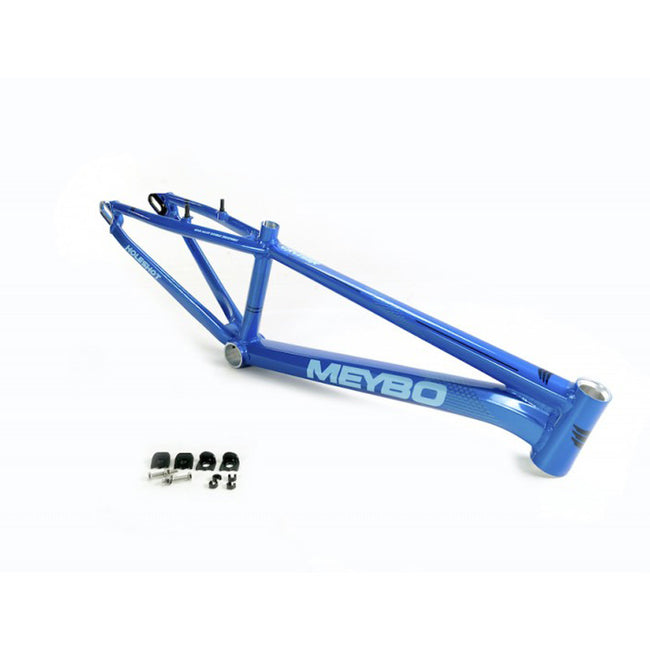

Meybo Holeshot Alloy BMX Race Frame-Blue/Cyan/Marine

Sold Out

About This Product: Meybo Holeshot Alloy BMX Race Frame-Blue/Cyan/Marine

The Meybo Holeshot BMX Race Frame-Blue/Cyan/Marine is a high-quality race frame constructed from super tough and lightweight 6061-T6 aluminum alloy. The tubing is square-tapered and multi-butted to provide even more strength and stiffness allowing for superior handling and responsiveness. The Holeshot frames are the official race frame for the Dutch National Team.

FEATURES

  • 6061 T-6 multiple butted hydroformed tubing;
  • 1.5 tapered headtube (Pro), 1 1/8" headtube (Ex. & Ex. XL) & 1" (Mini, Junior)
  • Wide BB shell for optimal stiffness, BB30 (Pro) & Euro (Sizes up to Expert XL)
  • Disc brake optional with Meybo Disc Brake Adapter;
  • Meybo integrated chaintensioners, 10mm and 15mm (Pro) & 8mm and 10mm (Sizes up to Expert XL);

GEOMETRY

Meybo Holeshot BMX Race Frame-Blue/Cyan/Marine Geometry Chart
SIZE TOP TUBE
RIDER AREA
DOWN TUBE CHAINSTAY HEAD TUBE
ANGLE
SEAT POST
ANGLE
HEAD TUBE SEAT POST SIZE DROPOUT BRACKET DISC BRAKE WEIGHT
SIZE: Mini TOP TUBE RIDER AREA: 17.68" DOWN TUBE: 18.07" CHAINSTAY: 12.99" HEAD TUBE ANGLE: 73.0° SEAT POST ANGLE: 70.0° HEAD TUBE: 1" SEAT POST SIZE: 22.2 mm DROPOUT: 10 mm BRACKET: Euro DISC BRAKE: Yes, Postmount WEIGHT: 1085 g
SIZE: Junior TOP TUBE RIDER AREA: 18.70" DOWN TUBE: 19.06" CHAINSTAY: 13.39" HEAD TUBE ANGLE: 73.5° SEAT POST ANGLE: 71.0° HEAD TUBE: 1" SEAT POST SIZE: 22.2 mm DROPOUT: 10 mm BRACKET: Euro DISC BRAKE: Yes, Postmount WEIGHT: 1135 g
SIZE: Expert TOP TUBE RIDER AREA: 19.69" DOWN TUBE: 19.92" CHAINSTAY: 13.39" HEAD TUBE ANGLE: 73.5° SEAT POST ANGLE: 71.0° HEAD TUBE: 1 1/8" SEAT POST SIZE: 25.4 mm DROPOUT: 10 mm BRACKET: Euro DISC BRAKE: Yes, Postmount WEIGHT: 1270 g
SIZE: Expert XL TOP TUBE RIDER AREA: 20.67" DOWN TUBE: 20.87" CHAINSTAY: 13.58" HEAD TUBE ANGLE: 73.5° SEAT POST ANGLE: 71.0° HEAD TUBE: 1 1/8" SEAT POST SIZE: 25.4 mm DROPOUT: 10 mm BRACKET: Euro DISC BRAKE: Yes, Postmount WEIGHT: 1287 g
SIZE: Pro 21 TOP TUBE RIDER AREA: 21" DOWN TUBE: 21.02" CHAINSTAY: 14.53" HEAD TUBE ANGLE: 74.0° SEAT POST ANGLE: 71.0° HEAD TUBE: Tap 1 1/8" - 1.5" SEAT POST SIZE: 27.2 mm DROPOUT: 15 mm BRACKET: BB30 DISC BRAKE: Yes, Postmount WEIGHT: 1508 g
SIZE: Pro 21.5 TOP TUBE RIDER AREA: 21.5" DOWN TUBE: 21.38" CHAINSTAY: 14.96" HEAD TUBE ANGLE: 74.0° SEAT POST ANGLE: 71.0° HEAD TUBE: Tap 1 1/8" - 1.5" SEAT POST SIZE: 27.2 mm DROPOUT: 15 mm BRACKET: BB30 DISC BRAKE: Yes, Postmount WEIGHT: 1589 g
SIZE: Pro 22 TOP TUBE RIDER AREA: 22" DOWN TUBE: 21.85" CHAINSTAY: 15.20" HEAD TUBE ANGLE: 74.0° SEAT POST ANGLE: 71.0° HEAD TUBE: Tap 1 1/8" - 1.5" SEAT POST SIZE: 27.2 mm DROPOUT: 15 mm BRACKET: BB30 DISC BRAKE: Yes, Postmount WEIGHT: 1605 g
SIZE: Pro 22.5 TOP TUBE RIDER AREA: 22.5" DOWN TUBE: 22.28" CHAINSTAY: 15.47" HEAD TUBE ANGLE: 74.0° SEAT POST ANGLE: 71.0° HEAD TUBE: Tap 1 1/8" - 1.5" SEAT POST SIZE: 27.2 mm DROPOUT: 15 mm BRACKET: BB30 DISC BRAKE: Yes, Postmount WEIGHT: 1611 g
SIZE: Pro 23 TOP TUBE RIDER AREA: 23" DOWN TUBE: 22.80" CHAINSTAY: 15.71" HEAD TUBE ANGLE: 74.3° SEAT POST ANGLE: 71.0° HEAD TUBE: Tap 1 1/8" - 1.5" SEAT POST SIZE: 27.2 mm DROPOUT: 15 mm BRACKET: BB30 DISC BRAKE: Yes, Postmount WEIGHT: 1629 g
SIZE: Cruiser TOP TUBE RIDER AREA: 22.20" DOWN TUBE: 22.72" CHAINSTAY: 15.47" HEAD TUBE ANGLE: 74.0° SEAT POST ANGLE: 71.0° HEAD TUBE: Tap 1 1/8" - 1.5" SEAT POST SIZE: 27.2 mm DROPOUT: 15 mm BRACKET: BB30 DISC BRAKE: Yes, Postmount WEIGHT: 1695 g

Meybo Bike Sizing Chart

Subrosa Bike Sizing Chart

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
