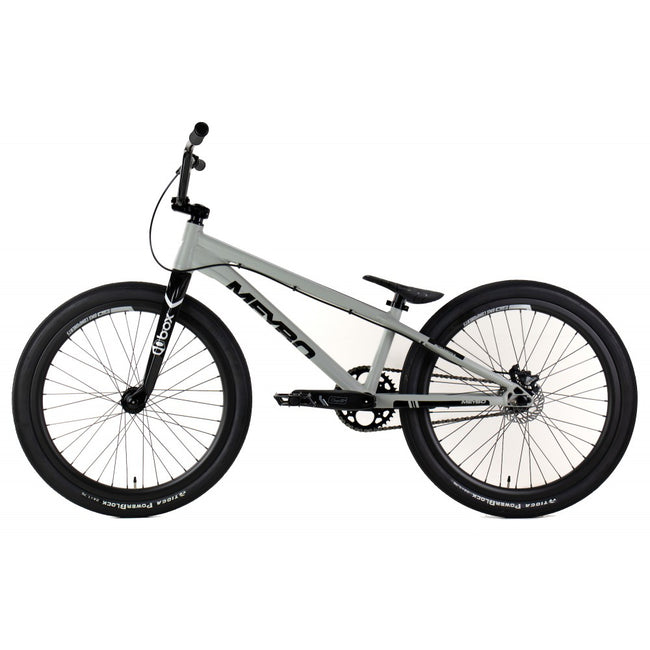

Meybo Patron Pro Cruiser 24" BMX Race Bike-Matte Grey/Shiny Black - 1

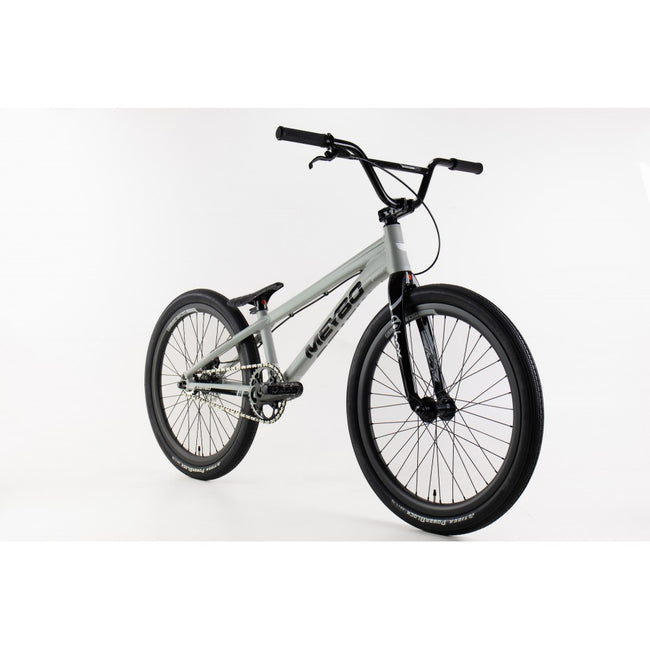

Meybo Patron Pro Cruiser 24" BMX Race Bike-Matte Grey/Shiny Black - 2

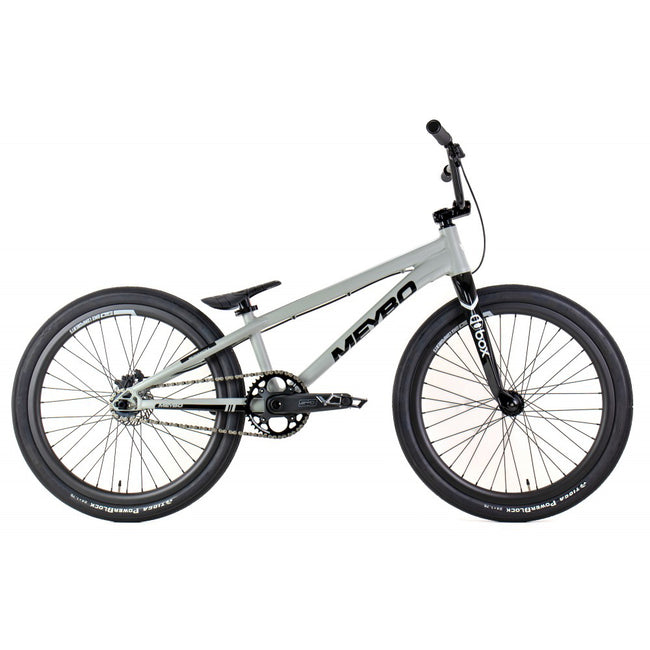

Meybo Patron Pro Cruiser 24" BMX Race Bike-Matte Grey/Shiny Black - 3

Meybo Patron Pro Cruiser 24" BMX Race Bike-Matte Grey/Shiny Black

Sold Out

About This Product: Meybo Patron Pro Cruiser 24" BMX Race Bike-Matte Grey/Shiny Black

The Meybo Patron BMX Race Bike-Matte Grey/Shiny Black-Cruiser is a premium BMX race bike built with components made to race straight out of the box. With the popular Holeshot frame as its foundation, the Meybo Patron offers lightweight responsive handling and efficient power transfer all around. The addition of carbon Box One forks and carbon SD rims means even more weight reduction and improved performance. High-end components from trusted brands fill out the rest of the Meybo Patron Race Bike. Tioga tires provide the perfect surface for ultimate speed and the Wellgo LU-313 platform pedals are made with ball bearings for smooth pedal action. Tried and true SD parts like SD Ace Hubs, SD Bengal Hydraulic brake lever and caliper and the SD Pro 4-hole crankset round out the championship-ready Meybo Patron so you can get out there and get racing.

SPECIFICATIONS

  • FORK: BOX One X5 carbon Tapered Fork 20mm through axle
  • HEADSET: FSA Sealed Full Integrated Tapered Headset
  • HANDLEBAR: SD cr-mo 5.75" pro Handlebar
  • STEM: SD CNC Stem 11/8" 50mm
  • GRIPS: SD 130 mm lock on grips
  • BRAKE LEVER: SD Bengal Hydraulic Lever
  • BRAKE: SD Bengal Hydraulic Caliper
  • FRONT HUB: SD Ace Pro Hub 36H 20mm through axle
  • REAR HUB: SD Ace Pro Cassette Disc Hub 36H 6 Pawls 180 clicks 15mm Trough Axle
  • SPOKES: Spokes Black
  • NIPPLES: Nipples Alloy Black
  • FRONT RIM: SD M58 24x 1.75 Carbon Rim 30mm
  • REAR RIM: SD M58 24x 1.75 Carbon Rim 30mm
  • FRONT TIRE: Tioga 24x 1.75 Wired
  • REAR TIRE: Tioga 24x 1.75 Wired
  • SEAT: Box Two pro seat 27,2 black
  • SEAT CLAMP: SD qr clamb 31,8 black
  • CRANKSET: SD Pro Hollow crankset 4hole, outboard bearings 175mm
  • BRACKET: SD hollow 24mm Euro, outboard bearings
  • PEDALS: Wellgo LU-313 platform
  • FRONT SPROCKET: SD CNC 6061 Chainring V2 4 Hole 41T Black
  • COG: Cog 18T
  • CHAINRING BOLTS: Black Steel
  • CHAIN: KMC K1 3/32 Silver/Black
  • DISC: SD Wave Disc 120mm

GEOMETRY

  • TOP TUBE RIDER AREA: 22.24"
  • DOWN TUBE: 22.72"
  • CHAINTSTAY: 15.35"
  • HEAD TUBE ANGLE: 74.0°
  • SEAT POST ANGLE: 71.0°
  • HEAD TUBE SIZE FULL INTEGRATED: Tapered 1 1/8" - 1.5"
  • SEAT POST SIZE: 27.2 mm
  • DROPOUT: 15 mm
  • BRACKET: BB30
  • DISC BRAKE ONLY: Postmount

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Meybo Bike Sizing Chart

Subrosa Bike Sizing Chart

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:

Need Some help Choosing a BMX Bike?

Selecting the right size BMX bike is vital for a smooth and delightful ride. At J&R Bicycles, we understand the BMX world inside out because we're passionate riders ourselves. Just reach out to us, and we'll be more than happy to assist you on your journey to finding the perfect BMX bike.

Curious to learn more? We've compiled a comprehensive BMX buyer's guide to demystify the process. Read on, and together, we'll uncover the BMX bike that perfectly matches your riding style and preferences.
