Meybo Patron Expert XL BMX Race Bike-Matte Black/Shiny Grey - 1
Meybo Patron Expert XL BMX Race Bike-Matte Black/Shiny Grey - 2

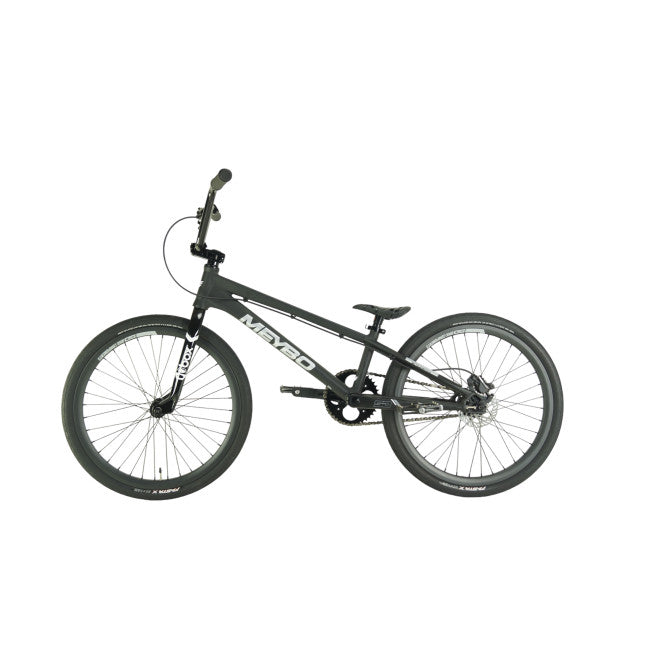

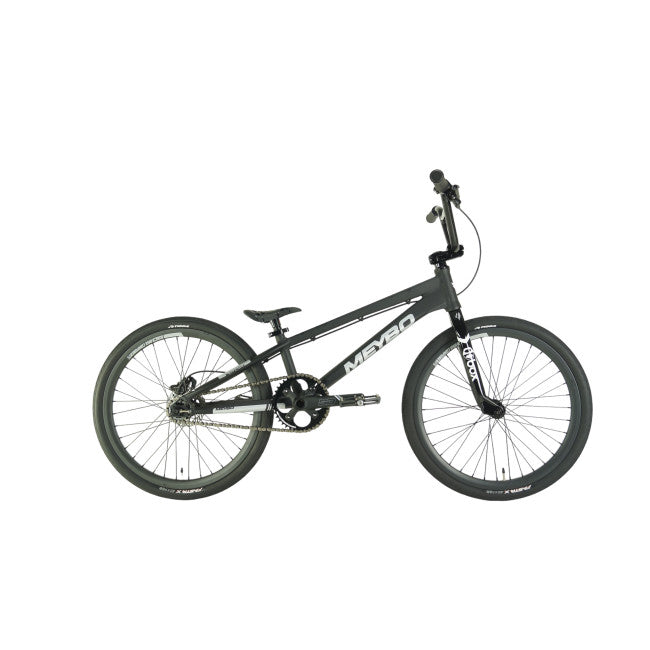

Meybo Patron Expert XL BMX Race Bike-Matte Black/Shiny Grey

Meybo
$2,199.99
Secure Checkout

About This Product: Meybo Patron Expert XL BMX Race Bike-Matte Black/Shiny Grey

The Meybo Patron Expert XL BMX Race Bike-Matte Black/Shiny Grey is a premium race bike built with quality components for racing right out of the box. With the popular Holeshot frame as its foundation, the Meybo Patron offers lightweight responsive handling and efficient power transfer all around. The addition of carbon Box One forks and carbon SD rims means even more weight reduction and improved performance. High-end components from trusted brands fill out the rest of the Meybo Patron Race Bike. Tioga Fastr-X folding tires provide the perfect surface for ultimate speed and the Wellgo B-219 platform pedals are made with sealed bearings for smooth pedal action. High-quality Shimano MT501 Hydraulic Brakes as well as tried and true SD parts like SD Ace Hubs and the SD 4-hole crankset round out the championship-ready Meybo Patron so you can get out there and get racing.

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacturer's warranty. Manufacturer's warranties differ for every brand. You can check the brand's website for warranty information.

SPECIFICATIONS

  • FORK: BOX One XL carbon fork 11/8" 10mm
  • HEADSET: FSA Sealed Full Integrated 11/8"
  • HANDLEBAR: SD Alloy Expert XL Handlebar
  • STEM: SD CNC Stem 11/8" 50mm
  • GRIPS: SD 130 mm lock on grips
  • BRAKE LEVER: Shimano MT501 Hydraulic Lever
  • BRAKE: Shimano MT501 Hydraulic Caliper
  • FRONT HUB: SD Ace Expert Hub 36H 8mm bolts
  • REAR HUB: SD Ace Cassette Disc Hub 36H 6 Pawls 180 clicks 8mm bolts
  • SPOKES: Spokes Black
  • NIPPLES: Nipples Alloy Black
  • FRONT RIM: SD M83 20x 1 3/8 Carbon Rim 25mm
  • REAR RIM: SD M83 20x 1 3/8 Carbon Rim 25mm
  • FRONT TIRE: Tioga Fastr-X 20x 1 3/8 Foldable
  • REAR TIRE: Tioga Fastr-X 20x 1 3/8 Foldable
  • SEAT: Box Two mini seat 25.4 black
  • SEAT CLAMP: SD qr clamb 28.6 black
  • CRANKSET: SD expert 4-lite 4hole, outboard bearings 165mm
  • BRACKET: SD hollow 24mm Euro, outboard bearings
  • PEDALS: Wellgo B-219 Sealed Bearing CNC platform
  • FRONT SPROCKET: SD CNC 6061 Chainring V2 4 Hole 40T Black
  • COG: Cog 16T
  • CHAINRING BOLTS: Black Steel
  • CHAIN: KMC K1 3/32 Silver/Black

GEOMETRY

  • TOP TUBE RIDER AREA: 20.67"
  • DOWN TUBE: 20.87"
  • CHAINTSTAY: 13.78"
  • HEAD TUBE ANGLE: 73.5°
  • SEAT POST ANGLE: 71.0°
  • HEAD TUBE SIZE FULL INTEGRATED: 1 1/8"
  • SEAT POST SIZE: 25.4 mm
  • DROPOUT: 10 mm
  • BRACKET: EU
  • DISC BRAKE ONLY: Postmount

IMAGE NOTE: Image is showing colorway and may not be size size specific. You will get the item in the size you order.

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Meybo Bike Sizing Chart

Subrosa Bike Sizing Chart

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
