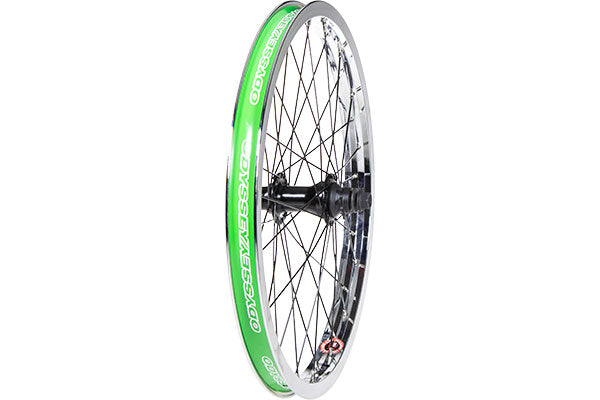

Odyssey Q1 BMX Freestyle Wheel-Rear-20"

Save 15%
Sold Out

About This Product: Odyssey Q1 BMX Freestyle Wheel-Rear-20"

QUARTET

The Quartet is a 36-H rear hub that is affordably priced, reliable rear hub with in-bound axle bolts that is guard compatible. Available now in Black or Vapor Blue. SPECS

6061-T6 forged aluminum hub shell
6902RS sealed cartridge ball bearings
9-T driver, 3-Pawl singular spring design and precision caged needle bearings (Compatible with V1, V2, and V3 Cassette Drivers)
3/8″, 4130 chromoly axle bolts w/15mm 4130 chromoly female axle
Hub collars feature integrated 14mm frame slot adapters
Weight: 16.6oz / 354g

MEASUREMENTS

Drive Side Effective Flange Diameter: 48mm
Non-Drive Side Effective Flange Diameter: 48mm
Drive Side Flange to Center Distance: 27mm
Non-Drive Side Flange to Center Distance: 30mm



HAZARD LITE

A long-running standard, the Hazard Lite is revered because of its strength, lightweight and affordable price. Constantly imitated but never matched in quality or reliability, the Hazard Lite is used regularly by pro-level riders even the ones that are being paid to ride something else.

SPECS

6000 series aluminum
32mm wide
17mm tall
36 or 48-H
20″ version (ERD: 390mm)
24″ version (ERD: 496mm)

Wheel Sizing Charts

Wheel Sizing Charts
RIDER WEIGHT RIDER AGE RECOMMENDED SIZE
RIDER WEIGHT: > 55 lbs RIDER AGE: > 5 RECOMMENDED SIZE: 18 x 1 inch
RIDER WEIGHT: 55 - 80 lbs RIDER AGE: 5 - 10 RECOMMENDED SIZE: 20 x 1.125 inch 24 x 1.125 inch
RIDER WEIGHT: 80 - 115 lbs RIDER AGE: 9 - 12 RECOMMENDED SIZE: 20 x 1.375 inch 24 x 1.375 inch
RIDER WEIGHT: 115 - 145 lbs RIDER AGE: 12 - 14 RECOMMENDED SIZE: 20 x 1.5 inch 24 x 1.5 inch
RIDER WEIGHT: 145 lbs < RIDER AGE: 14 < RECOMMENDED SIZE: 20 x 1.75 inch 24 x 1.75 inch
