Premium 22mm 2-Piece Crankset - 1
Premium 22mm 2-Piece Crankset - 2

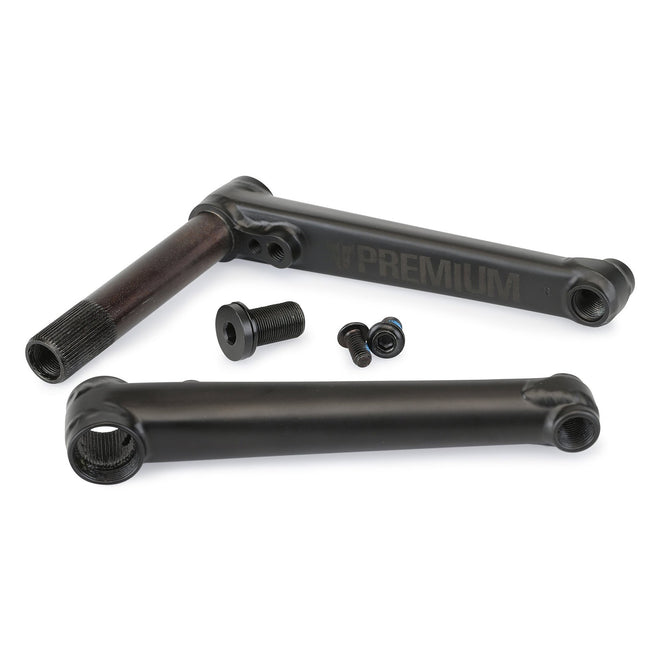

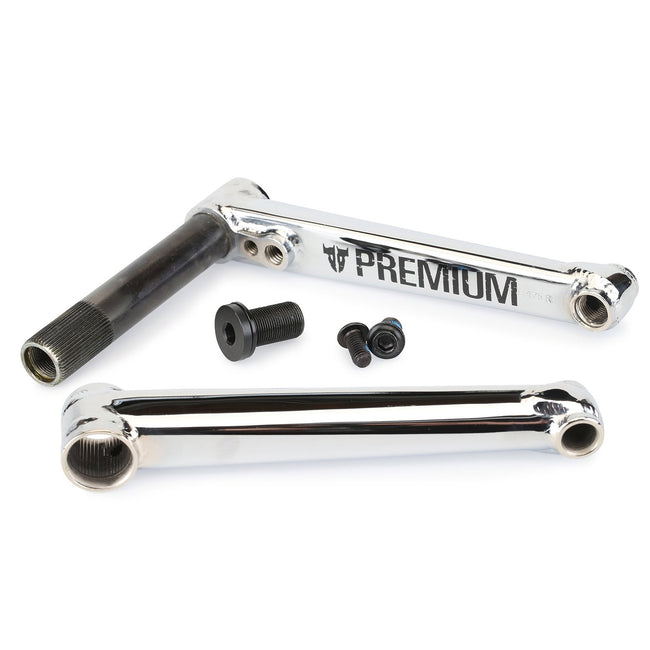

Premium 22mm 2-Piece Crankset

Haro
Sold Out

About This Product: Premium 22mm 2-Piece Crankset

The Premium 22mm 2-Piece Crankset simplifies the crank design by affixing the spindle to the right arm. This not only reduces the weight of those precious ounces, but also beefs up the stiffness, giving you solid, consistent torque with each rotation. The 22mm, 48-spline spindle is made from 4130 heat treated Cr-Mo, and can be set up for Right or Left hand drive.

SPECIFICATIONS

  • 4130 heat-treated Cr-Mo tubing, with wrap around gusset
  • Cr-Mo 22mm, 48-spline spindle
  • Right and Left side drive compatible
  • 175mm length
  • 9/16" pedal boss

Crank Size Chart

Crank Size Chart
Inseam length Crank Length
Crank Size: Micro, Mini. Junior
Inseam length: 15 - 16 inch Crank length: 130 mm
Inseam length: 16 - 17.5 inch Crank length: 135 mm
Inseam length: 17.5 - 19 inch Crank length: 140 mm
Inseam length: 19 - 20 inch Crank length: 145 mm
Inseam length: 20 - 22 inch Crank length: 150 mm
Crank Size: Junior, Expert, Expert XL
Inseam length: 20 - 22 inch Crank length: 150 mm
Inseam length: 22 - 23 inch Crank length: 155 mm
Inseam length: 23 - 25 inch Crank length: 160 mm
Inseam length: 25 - 26 inch Crank length: 165 mm
Crank Size: Pro and Larger
Inseam length: 26 - 27 inch Crank length: 170 mm
Inseam length: 27 - 28 inch Crank length: 175 mm
Inseam length: 28 - 30 inch Crank length: 177.5 mm
Inseam length: 30 - 31 inch Crank length: 180 mm
Inseam length: 31 - 32 inch Crank length: 185 mm
Inseam length: 33+ inch Crank length: 190 mm

How To Measure Your Inseam

  1. Start with a pair of pants you already have that fit you well and lay them flat on the floor.
  2. Carefully measure the length from the crotch seam to the bottom of the leg.
  3. THIS NUMBER IS YOUR INSEAM. Use this number to help you choose your cranks.
