Prophecy Scud Evo Carbon BMX Race Frame-Matte Carbon/Red - 1
Prophecy Scud Evo Carbon BMX Race Frame-Matte Carbon/Red - 2
Prophecy Scud Evo Carbon BMX Race Frame-Matte Carbon/Red - 3

Prophecy Scud Evo Carbon BMX Race Frame-Matte Carbon/Red

Prophecy
Sold Out

About This Product: Prophecy Scud Evo Carbon BMX Race Frame-Matte Carbon/Red

The Prophecy Scud Evo Carbon Race Frame-Matte Carbon/Yellow features 3K carbon layer tubing with new full rear carbon dropouts. The carbon BMX frame also features an internal cable routing system and a CNC machined aluminum quick release seat clamp that is specifically designed for use on carbon frames.

FEATURES

  • 3K layer carbon frame
  • Aluminum Euro bottom bracket shell
  • Designed for 1-1/8" internal (semi-integrated) headset

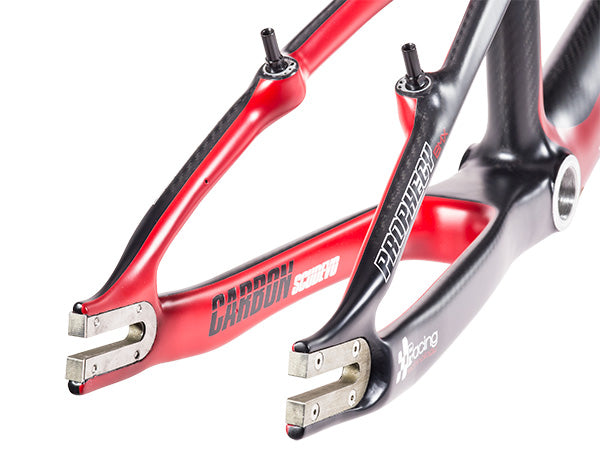

  • 10mm (3/8") dropouts with steel plates to protect the frame and create a sturdy surface to mount wheel

SPECIFICATIONS

  • USE: Race
  • MATERIAL: 3K Layer Carbon
  • HEADSET STYLE: Internal (semi-integrated) 1-1/8"
  • BRAKE MOUNTS: V-Brake
  • BB SHELL: Euro

GEOMETRY

Prophecy Scud Evo Carbon BMX Race Frame-Matte Carbon/Blue Geometry Chart
SIZE TT CS HA SA SP WEIGHT
SIZE: JUNIOR TT: 18.5" CS: 13.6" HA: 73­° SA: 70° SP: 25.4mm WEIGHT: 2.8lbs (44.8oz)
SIZE: EXPERT XL TT: 20" CS: 14" HA: 73­° SA: 70° SP: 25.4mm WEIGHT: 3.0lbs (48.3oz)
SIZE: PRO TT: 20.67" CS: 15" HA: 73.5­° SA: 71° SP: 27.2mm WEIGHT: 3.28lbs (53.4oz)
SIZE: PRO XL TT: 21.26" CS: 15.35" HA: 73­.5° SA: 71° SP: 27.2mm WEIGHT: 3.24lbs (51.9oz)
SIZE: PRO XXL TT: 21.65" CS: 15.35" HA: 73­.5° SA: 71.5° SP: 27.2mm WEIGHT: 3.3lbs (52.85oz)

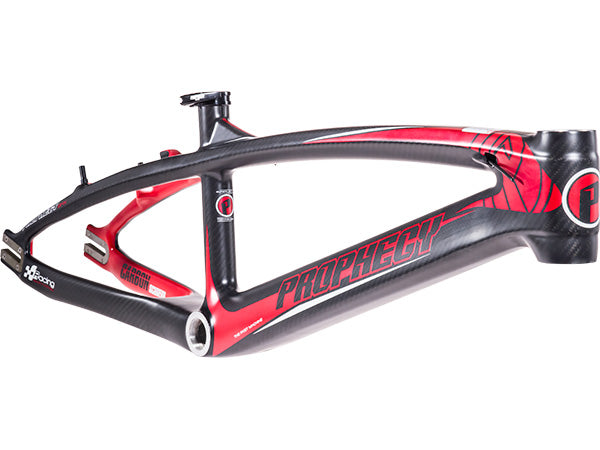

Photo of frame is same model and color but not necessarily the same size.

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
