Pure V5 Alloy BMX Race Frame-Chrome Rainbow - 1
Pure V5 Alloy BMX Race Frame-Chrome Rainbow - 2
Pure V5 Alloy BMX Race Frame-Chrome Rainbow - 3
Pure V5 Alloy BMX Race Frame-Chrome Rainbow - 4

Pure V5 Alloy BMX Race Frame-Chrome Rainbow

Pure
Save 40%
Sold Out

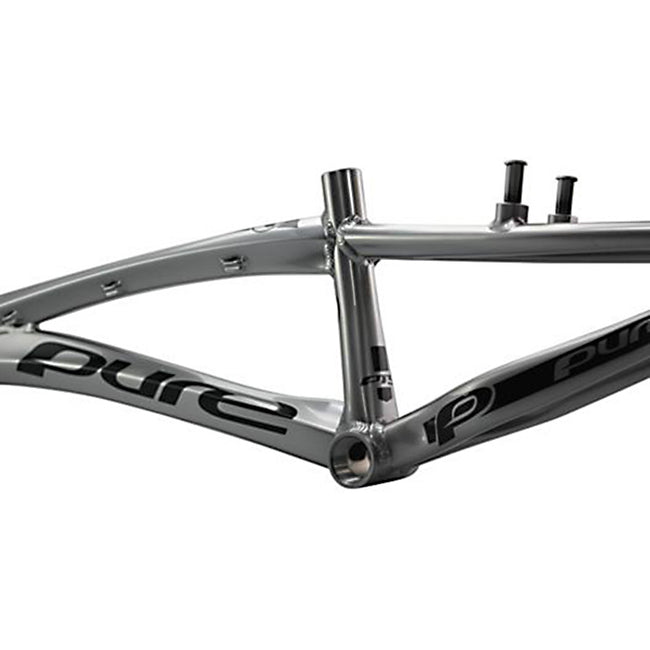

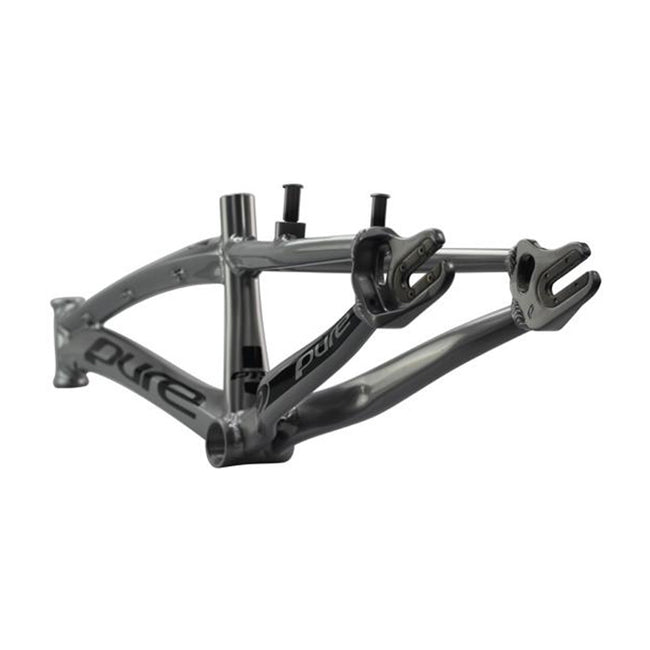

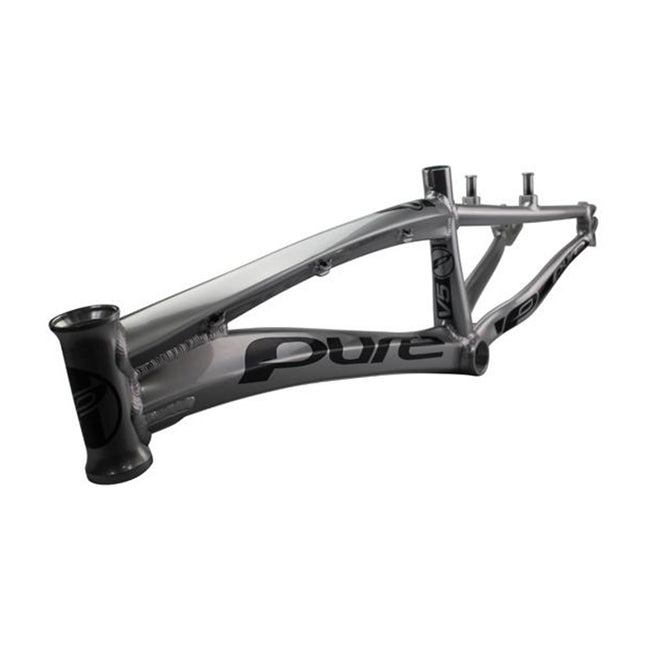

About This Product: Pure V5 Alloy BMX Race Frame-Chrome Rainbow

The PURE V5 BMX Race Frame-Chrome Rainbow continue to push BMX technology forward. The V5 frames are made from the highest quality of 6061 hydroformed aluminum in the industry. The tube set was designed specifically for the V5 to reduce power loss and flex so that every bit of energy passes through the frame and into forwarding motion.

FEATURES

  • CNC Machined head tube, bottom bracket shell and 3D dropouts
  • Hydroformed 6061 tubing
  • Shortened seat tube for improved geometry and mobility
  • Stainless steel insets in dropouts to increase the dropout life span
  • Geometry designed to balance frame properly for increased performance
  • Hard gloss powder coating finishing
  • Durable decals that are removable for customizing color options
  • Includes chain adjusters
  • Available in Junior 20" through Pro XXXL 20" as well as a Pro XL 24" and Pro XXL 24"

GEOMETRY

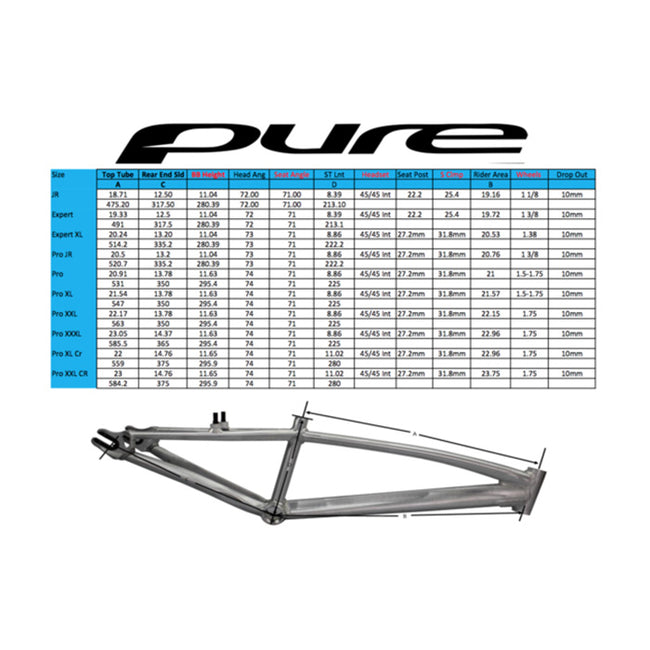

Pure Bicycles V5 Aluminum Race Frames Geometry Chart
SIZE TT REAR BB HEIGHT RIDER AREA HT ST POST SEAT CLAMP HEADSET BRAKES BB
SIZE: JUNIOR TT: 18.71" REAR: 12.5" BB HEIGHT: 11.04" RIDER AREA: 19.25" HT: 72° ST: 71° POST: 22.2mm SEAT CLAMP: 25.4mm HEADSET: 1" press fit BRAKES: V-Brake BB: Euro
SIZE: EXPERT TT: 19.33" REAR: 12.5" BB HEIGHT: 11.04" RIDER AREA: 19.7" HT: 72° ST: 71° POST: 22.2mm SEAT CLAMP: 25.4mm HEADSET: 1" press fit BRAKES: V-Brake BB: Euro
SIZE: EXPERT XL TT: 20.24" REAR: 12.99" BB HEIGHT: 11.04" RIDER AREA: 20.6" HT: 72° ST: 71° POST: 27.2mm SEAT CLAMP: 31.8mm HEADSET: 1-1/8" Int BRAKES: V-Brake BB: Euro
SIZE: PRO JUNIOR TT: 20.5" REAR: 13.2" BB HEIGHT: 11.04" RIDER AREA: 20.7" HT: 73° ST: 71° POST: 27.2mm SEAT CLAMP: 31.8mm HEADSET: 1-1/8" Int BRAKES: V-Brake BB: Euro
SIZE: PRO TT: 20.91" REAR: 13.43" BB HEIGHT: 11.63" RIDER AREA: 21.4" HT: 74° ST: 71° POST: 27.2mm SEAT CLAMP: 31.8mm HEADSET: 1-1/8" Int BRAKES: V-Brake BB: Euro
SIZE: PRO XL TT: 21.54" REAR: 13.78" BB HEIGHT: 11.63" RIDER AREA: 21.75" HT: 74° ST: 71° POST: 27.2mm SEAT CLAMP: 31.8mm HEADSET: 1-1/8" Int BRAKES: V-Brake BB: Euro
SIZE: PRO XXL TT: 22.17" REAR: 13.78" BB HEIGHT: 11.63" RIDER AREA: 22.5" HT: 74° ST: 71° POST: 27.2mm SEAT CLAMP: 31.8mm HEADSET: 1-1/8" Int BRAKES: V-Brake BB: Euro
SIZE: PRO XXXL TT: 23.05" REAR: 14.37" BB HEIGHT: 11.63" RIDER AREA: 23" HT: 74° ST: 71° POST: 27.2mm SEAT CLAMP: 31.8mm HEADSET: 1-1/8" Int BRAKES: V-Brake BB: Euro
SIZE: PRO XL 24" TT: 22" REAR: 14.76" BB HEIGHT: 11.65" RIDER AREA: 22.75" HT: 74° ST: 71° POST: 27.2mm SEAT CLAMP: 31.8mm HEADSET: 1-1/8" Int BRAKES: V-Brake BB: Euro
SIZE: PRO XXL 24" TT: 23" REAR: 14.76" BB HEIGHT: 11.65" RIDER AREA: 23.6" HT: 74° ST: 71° POST: 27.2mm SEAT CLAMP: 31.8mm HEADSET: 1-1/8" Int BRAKES: V-Brake BB: Euro

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
