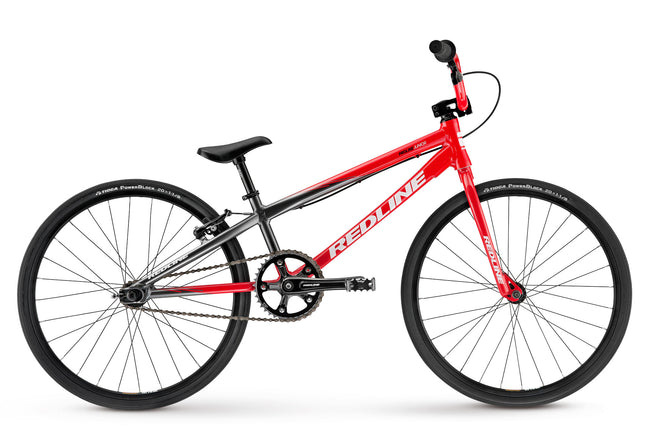

Redline Proline Race BMX Bike-Junior

Redline
Sold Out

About This Product: Redline Proline Race BMX Bike-Junior

PRODUCT DETAILS

New frame, fully sealed front and rear hubs brings the Proline Junior to the next level.



Frame 6061 T6 Alloy Formed Tubing, Machined BB, Integrated 1" Headtube
Fork RL Chromo 1" steer tube, tapered legs
Colors Gloss Red/Grey
Headset Integrated 1" Headset
Stem RL Mini Aluminum HollowPoint 40mm
Handlebar RL Junior Aluminum 4.5" 10˚ Back x 2˚ Up
Grips RL Mini Hex Grips
Seat RL Microline Combo 22.2 Aluminum post
Seat Post RL Microline Combo 22.2 Aluminum post
Seat Post Clamp Redline Proline Aluminum 25.4mm
Rims Sun M13II 28h
Front Hub Redline Aluminum Fully Sealed
Rear Hub Redline Aluminum, Cassette , Fully Sealed
Spokes Black, Stainless Steel
Tires Tioga PowerBlock 20 x 1-1/8" Tires
Crankset RL Microline 3pc 155mm,Cranks
Bottom Bracket Sealed Euro BB
Pedals Redline Jr Aluminum Platform / Chromo Spindle
Brake Tektro 926AL Linear
Brake Lever Tektro
Chain KMC Z33
Gearing 38/14
Extras Redline Chain Tensioners
Weight 14 lbs 6 oz (without pedals)

Additional Information

Barcode 027424
Special Shipping Group N/A

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
