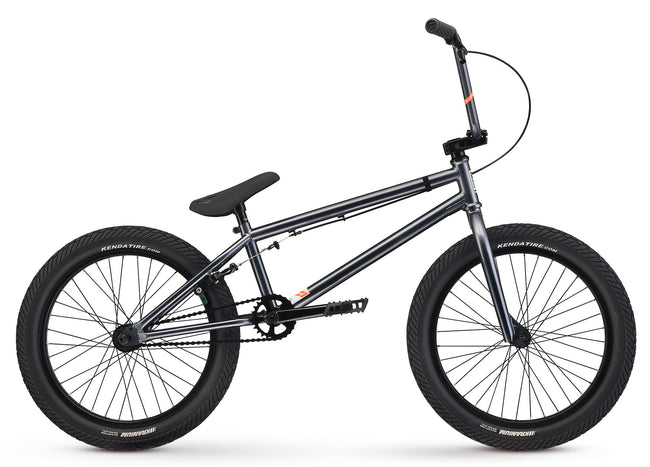

Redline Random Bike-Grey

Redline
Sold Out

About This Product: Redline Random Bike-Grey

PRODUCT DETAILS

This bike is built to ride and ride again and again. Forged top load stem, Monster 8.75” bars, chromo/steel frame, tapered fork with chromo steer, Odyssey Twisted PC pedals, Monster 151 flangeless grips and more.


  • Fully Sealed Front and Rear Hubs
  • Three Piece Chromo Cranks with Sealed Mid Bottom Bracket
  • Alienation Primus Rims wrapped with Kenda Kranium 2.30 tires
Head Angle 75˚
Seat Angle 70˚
Top Tube 20.75"
Chain Stay 13.75"
BB Height 11.8"
Standover 22.6"


Frame Hi-Ten with Chromo downtube, Integrated Headtube, Integrated Spc, mid bb
Fork RL Monster Chromo Steerer, Tapered leg fork
Colors Satin Puple, Matte Black, Matte Grey
Headset Integrated
Stem Top Load, 50mm
Handlebar Monster Chromo 8.75" Rise/ 28.5" Wide 12˚ Back, 1˚ Up
Grips Monster 151 Flangeless w/Plugs
Seat Monster Padded Combo Saddle
Seat Post 25.4
Seat Post Clamp Integrated Bolt
Rims Alienation Primus 36h
Front Hub Aluminum, Fully Sealed, Chromo 3/8" Axle
Rear Hub Aluminum, Fully Sealed, Chromo 14mm Axle
Spokes Black
Tires Kenda Kranium 20 x 2.30"
Crankset 100% heat treated Chromo 3pc Cranks
Bottom Bracket Sealed Mid BB
Pedals Odyssey Twisted PC
Brake Tektro FX 340 Rear U
Brake Lever Textro
Chain KMC Z410
Gearing 25/9
Weight 26 lbs 4 oz

Additional Information

Barcode 135731
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over
