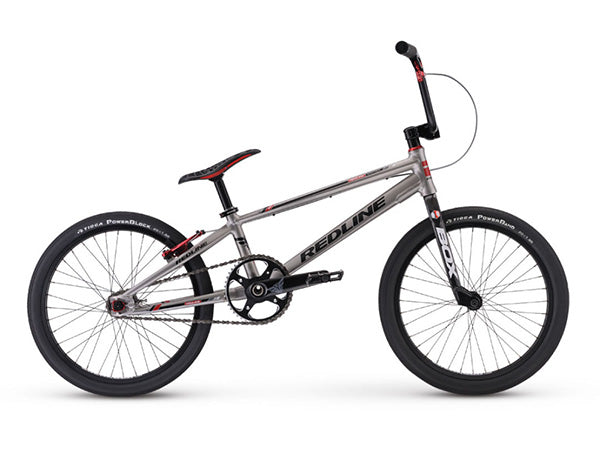

Redline Flight BMX Bike-Pro XL-Gray

Redline Flight BMX Bike-Pro XL-Gray

Name: Redline Flight BMX Bike-Pro XL-Gray
Brand: Redline
Price: 1399.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Flight BMX Bike-Pro XL-Gray

PRODUCT DETAILS

The R7 frame with result proven geometry has been engineered for the rigors specific to high level BMX racing. Proprietary Redline formed R7 tubing, press-fit BB -86, Redline convertible dropouts and combined with top of the line components, creates the most technically advanced alloy race bike on the market today. No gimmicks, just winning.

KEY FEATURES

Redline Flight AL Hollow Forged Cranks w/24mm Chromo Spindle
BOX Pro Carbon “X” w/ Chromo Steer and 3/8 dropout
Alienation Malice Rims – Tubeless Compatible
Redline Flight 120 Instant Cassette Hub w/15mm Through Axle
Promax TX-131 Brakes w/Grip Integrated Lever
Tioga Power Block Tires

FRAME SPECS:

Toptube Length: 21"
Head Angle: 74
Seat Angle: 70
BB Height: 11.5"
Chainstay: 14.75" - 16"

RECOMMENDED RIDER HEIGHT:

5' 10"+

Frame	Redline Proprietary R7 Formed and Butted Tubing. Integrated HT, Press-Fit BB-86, Convertible Dropouts
Fork	BOX Pro Carbon “X” w/ Chromo Steer and 3/8 dropout
Colors	Gloss Gray
Headset	FSA Poly Carbonate Integrated 1 1/8"
Stem	RL Flight Forged+CNC Aluminum, 55mm w/M8 Bolts
Handlebar	RL Pro Cromo, 28.25" W x 8" T, 12˚ Back, 1˚ up
Grips	RL Flight Locking 145mm
Seat	Tioga D-Spyder S-Spec Pivotal
Seat Post	RL Spec Aluminum Pivotal, Micro Adjust, 26.8mm
Seat Post Clamp	Integrated QR
Rims	Alienation Malice, 36H - Tubeless Compatible
Front Hub	Flight, Alum SB w/Chromo Axle
Rear Hub	Flight 120 Instant Cassette Hub, Alum, SB, 15mm Through Axle
Spokes	Stainless Steel 14G
Tires	Tioga PowerBand (F) 20 x 1.85" / PowerBlock (R) 20 x 1.75"
Crankset	Flight AL 180mm, Hollow Forged, 24mm Hollow Chromo Spindle
Bottom Bracket	Sealed Press-Fit BB86
Pedals	RL Spec Aluminum Platform 9/16
Brake	Promax TX-131, 108mm , Directional cartridge pads
Brake Lever	Promax w/ Lock-on grip Integration
Chain	KMC Z610HX
Gearing	44/16
Extras	3/8 and 15mm Chain Adjusters

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.

Additional Information

Barcode	030956
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
