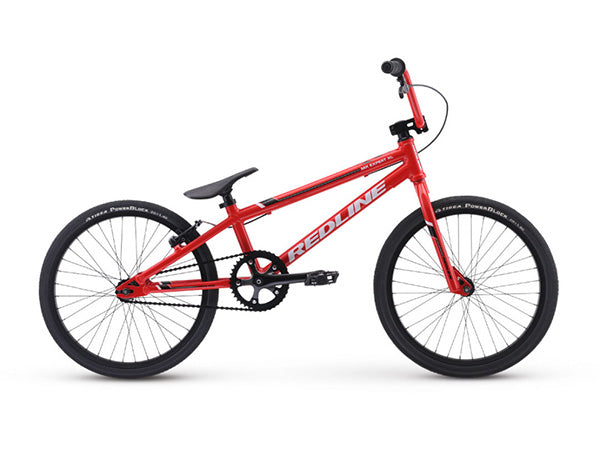

Redline MX BMX Bike-Expert XL-Red

Redline
Sold Out

About This Product: Redline MX BMX Bike-Expert XL-Red

PRODUCT DETAILS

Ready to hit the track out of the box. 6061 Alloy frame, Three piece crank and integrated headset. With a size for everyone, this the perfect choice for the new and experienced racer.

KEY FEATURES

  • 6061 Aluminum, Integrated HT, Ovalized Anti-Flex Stays
  • Pivotal Race Saddle
  • Chromo 3pc Cranks
  • Tioga Power Block Tires

FRAME SPECS:

  • Toptube Length: 20"
  • Head Angle: 73
  • Seat Angle: 69
  • BB Height: 11.2"
  • Chainstay: 13.8"

RECOMMENDED RIDER HEIGHT:

4' 10" - 5' 4"


Frame 6061 Aluminum, Integrated HT, Ovalized Anti-Flex Stays
Fork RL Race Chromo Steer, Taperd leg, 30mm Off set
Colors Gloss Red
Headset Integrated 1 1/8"
Stem RL Race 50mm Aluminum 1 1/8" threadless
Handlebar RL Race 6.5" , 12˚ Back 1˚ Up
Grips Redline Hex expert w/plugs
Seat Pivotal Race
Seat Post Pivotal 26.8
Seat Post Clamp Alloy 31.8
Rims Race 20 x 1.5, 36h
Front Hub RL Aluminum
Rear Hub RL Aluminum Flip-Flop
Spokes Black 14g
Tires Tioga PowerBlock (F)20 x 1.6" / (R)20 x 1.4"
Crankset RL Race Aluminum 170mm 3pc Cranks
Bottom Bracket Sealed Euro
Pedals RL Race 9/16" PC pedal
Brake Tektro BX-1 Linear
Brake Lever Tektro
Chain KMC Z410
Gearing 39/14

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.

Additional Information

Barcode 030926
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over
