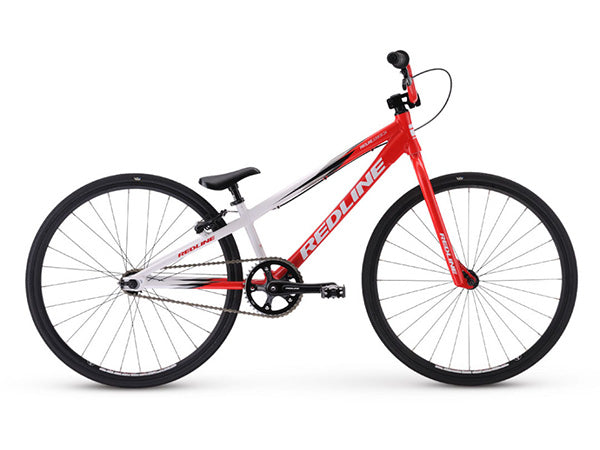

Redline Proline Junior Cruiser 24" BMX Race Bike-Red

Redline
Sold Out

About This Product: Redline Proline Junior Cruiser 24" BMX Race Bike-Red

For the small rider and looking to jump in the cruiser class. The New Redline Proline Junior Cruiser 24" BMX Race Bike-Red uses our Proprietary Redline formed 6061-T-6 alloy frame, sealed hubs, and 100% Chromoly butted and tapered race fork for performance and value that is unbeatable.

FEATURES

  • Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
  • RL Mini/JR Fork 100% Full Chromo Steerer with Tapered Legs
  • Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
  • Redline Microline 3pc, Cranks
  • Redline Microline Seat/Post combo
  • Vee Speedster tires

SPECIFICATIONS

  • Frame: Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
  • Fork: RL Chromo 1"steer tube, tapered legs
  • Colors: Gloss Red/White
  • Headset: Integrated 1 "Headset
  • Stem: RL Mini Aluminum HollowPoint 40mm
  • Handlebar: RL Junior Aluminum 4.5" 10˚ Back x 2˚ Up
  • Grips: RL Mini Hex Grips
  • Seat: RL Microline Combo 22.2 Aluminum post
  • Seat Post: RL Microline Combo 22.2 Aluminum post
  • Seat Post Clamp: Redline Proline Aluminum 25.4mm
  • Rims: Alienation Ankle Biter 28h
  • Front Hub: Redline Aluminum Fully Sealed
  • Rear Hub: Redline Aluminum, Cassette , Fully Sealed
  • Spokes: Black, Stainless Steel
  • Tires: Vee Speedster 24 x 1-1/8" Tires
  • Crankset: RL Microline 3pc 155mm,Cranks
  • Bottom Bracket: Sealed Euro BB
  • Pedals: Redline Jr Aluminum Platform / Chromo Spindle
  • Brake: Tektro 926AL Linear
  • Brake Lever: Tektro
  • Chain: KMC Z33
  • Gearing: 39/16
  • Extras: Redline Chain Tensioners
  • Recommended Rider Height: 4' 6" - 5' 2"

GEOMETRY

  • Toptube Length: 19.8"
  • Head Angle: 73
  • Seat Angle: 69
  • BB Height: 10.6"
  • Chainstay: 14.3" - 15.3"

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
