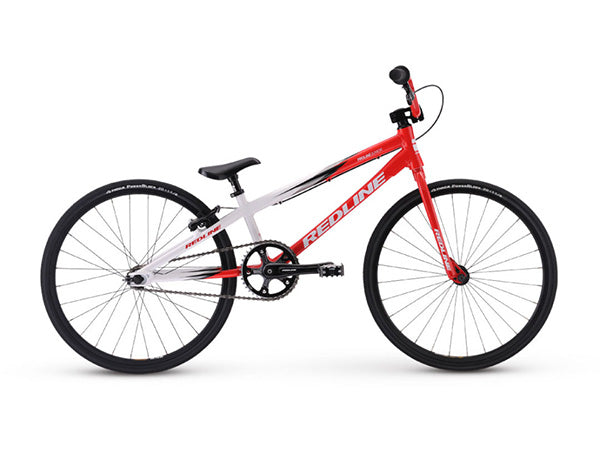

Redline Proline BMX Bike-Junior-Red

Redline Proline BMX Bike-Junior-Red

Name: Redline Proline BMX Bike-Junior-Red
Brand: Redline
Price: 549.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Proline BMX Bike-Junior-Red

PRODUCT DETAILS

For the rider looking to get serious about racing. Proprietary Redline formed 6061-T-6 alloy frame, sealed hubs and 100% Chromoly butted and tapered race fork for performance and value that is top of the class.

KEY FEATURES

Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
RL Mini/JR Fork 100% Full Chromo Steerer with Tapered Legs
Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
Redline Microline 3pc, Cranks
Redline Microline Seat/Post combo
Tioga Power Block tires

FRAME SPECS:

Toptube Length: 18.5"
Head Angle: 73
Seat Angle: 69
BB Height: 10.8"
Chainstay: 13" - 14"

RECOMMENDED RIDER HEIGHT:

4' 4" - 4' 9"

Frame	Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
Fork	RL Chromo 1"steer tube, tapered legs
Colors	Gloss Red/White
Headset	Integrated 1 "Headset
Stem	RL Mini Aluminum HollowPoint 40mm
Handlebar	RL Junior Aluminum 4.5" 10˚ Back x 2˚ Up
Grips	RL Mini Hex Grips
Seat	RL Microline Seat/Post Combo 22.2 Aluminum post
Seat Post	RL Microline Seat/Post Combo 22.2 Aluminum post
Seat Post Clamp	Redline Proline Aluminum 25.4mm
Rims	Sun M13II 28h
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Black, Stainless Steel
Tires	Tioga PowerBlock 20 x 1-1/8" Tires
Crankset	RL Microline 3pc 155mm,Cranks
Bottom Bracket	Sealed Euro BB
Pedals	Redline Jr Aluminum Platform / Chromo Spindle
Brake	Tektro 926AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	38/14
Extras	Redline Chain Tensioners

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.

Additional Information

Barcode	030967
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
