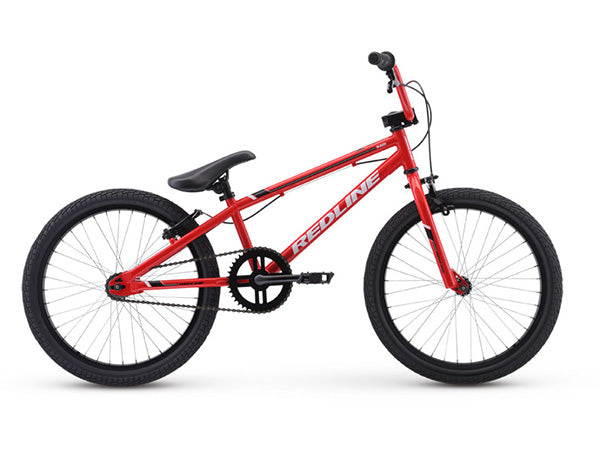

Redline Raid FW BMX Bike-Red

Redline
Sold Out

About This Product: Redline Raid FW BMX Bike-Red

PRODUCT DETAILS

Race inspired geometry and short top tube make this the ultimate neighborhood bike.

KEY FEATURES

  • Available in both Freewheel and Coaster Brake models
  • Race Inspired Graphics
  • 20” Alloy rims wrapped with Kenda Kontact tires

FRAME SPECS:

  • Toptube Length: 18"
  • Head Angle: 72
  • Seat Angle: 69
  • BB Height: 10.25"
  • Chainstay: 13.9"

RECOMMENDED RIDER HEIGHT:

4' 4" - 4' 9"

Frame RL spec 100% Hi ten tubing, Sloping Top Tube, Race inspired geometry
Fork RL spec 100% Hi ten tubular fork
Colors Gloss Red, Gloss Bright Green
Headset RL spec 1" Threadless
Stem RL spec 40mm Aluminum
Handlebar RL spec 100% Hi ten , 5.5", 12˚ Back, 1˚ Up
Grips Redline Hex Mini w/Plugs
Seat RL Padded
Seat Post 22.2
Seat Post Clamp Alloy 25.4
Rims RL spec Aluminum
Front Hub RL Spec
Rear Hub RL Spec FW
Spokes 14g
Tires Kenda Kontact 20 x 1.95"
Crankset RL spec 140mm One Piece crank
Bottom Bracket American
Pedals RL spec PC Platform 1/2"
Brake RL spec Linear
Brake Lever RL Spec
Chain KMC Z410
Gearing 40/16

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacture's warranty. Manufacture's warranties differ for every brand. You can check the brand's website for warranty information.

Additional Information

Barcode 030931
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over
