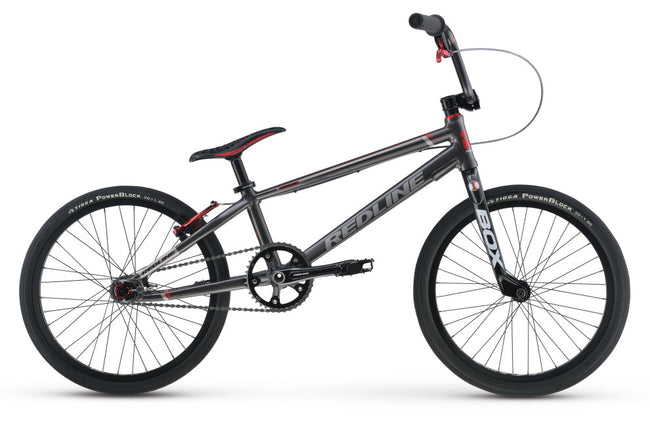

Redline Flight Expert XL Bike-Gray

Redline Flight Expert XL Bike-Gray

Name: Redline Flight Expert XL Bike-Gray
Brand: Redline
Price: 889.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Flight Expert XL Bike-Gray

The R7 frame with result proven geometry has been engineered for the rigors specific to high level BMX racing. Proprietary Redline formed R7 tubing, press-fit BB -86, Redline convertible dropouts and combined with top of the line components, creates the most technically advanced alloy race bike on the market today. No gimmicks, just winning.

Specifications

Frame: Redline Proprietary R7 Formed and Butted Tubing. Integrated HT, Press-Fit BB-86, Convertible Dropouts
Fork: BOX Pro Lite Carbon ÒXLÓ w/Alloy Steer and 3/8 dropout
Colors: Gloss Gray
Headset: FSA Poly Carbonate Integrated 1 1/8"
Stem: RL Flight Forged+CNC Aluminum , 50mm W/M8 Bolts
Handlebar: RL Expert XL Cromo, 28.5" W x 6.5" T, 10¡ Back, 4¡ up
Grips: RL Flight Locking 145mm
Seat: Tioga D-Spyder S-Spec Pivotal
Seat Post: RL Spec Aluminum Pivotal, Micro Adjust, 26.8mm
Seat Post Clamp: Integrated QR
Rims: Alienation MIA, 36h
Front Hub: Flight, Alum SB w/Chromo Axle
Rear Hub: Flight 120 Instant Cassette Hub, Alum, SB, 15mm Through Axle
Spokes: Stainless Steel 14G
Tires: Tioga PowerBlock (F)20 x 1.6" / (R) 20 x 1.4" Tires
Crankset: RL 170mm Microline 2pc Forged 6061 Aluminum
Bottom Bracket: Sealed Press-Fit BB86
Pedals: RL Spec Aluminum Platform 9/16
Brake: Promax TX-131, 108mm , Directional cartridge pads
Brake Lever: Promax w/ Lock-on grip Integration
Chain: KMC HP6L Hollow Plate
Gearing: 38/14
Extras: 3/8 and 15mm Chain Adjusters
Bicycle Weight: 17 lbs.12oz (without pedals)
Top Tube: 20"
Head Angle: 73˚
Seat Angle: 69˚
BB Height: 11.2"
Chainstay: 13.25" - 14.25"

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
