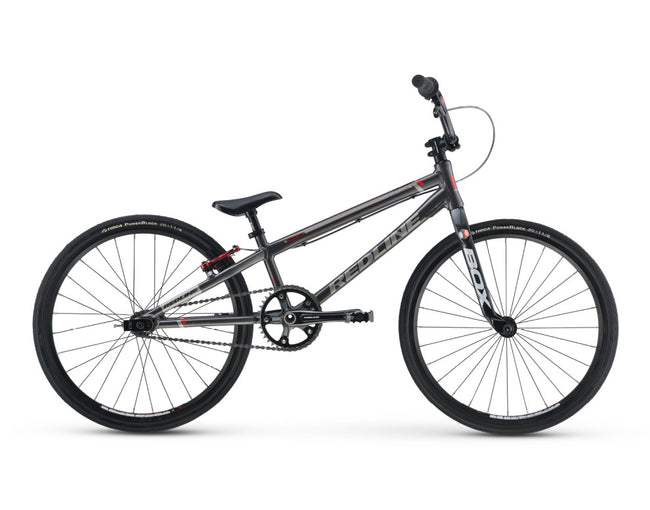

Redline Flight Junior Bike-Gray

Redline
Sold Out

About This Product: Redline Flight Junior Bike-Gray

PRODUCT DETAILS

Engineered and designed for the smaller rider to win races. Redline Proprietary R6 formed tubing, winning geometry and careful selection of components make the Flight Junior a winner out of the box.



KEY FEATURES

  • Redline Microline 2pc 6061 Aluminum Cranks
  • BOX Mini Carbon “XS” Carbon Forks
  • Alienation Ankle Biter Rims
  • Flight Alum SB Cassette w/Hollow Chromo Axle
  • PromaxMV-88, 85mmBrakes
  • TiogaPowerBlockTires

Top Tube 18.5"
Head Angle 73˚
Seat Angle 69˚
BB Height 10.8"
Chainstay 13" - 14"
Frame RL R6 Formed Tubing, Machined BB, Integrated 1" Headtube
Fork BOX Mini Carbon "XS"
Colors Gloss Gray
Headset FSA Orbit IS 1"Sealed
Stem RL Microline Forged Aluminum , Laser etched, 40mm , Cromo Allen bolts
Handlebar RL Junior 6061 T-6 Aluminum, 24" W x 4.5" T, 10¡ back , 2¡ up
Grips Redline Mini Hex
Seat RL Microline Integrated Saddle post combo 22.2mm
Seat Post RL Microline Integrated Saddle post combo 22.2mm
Seat Post Clamp Redline Flight 25.4mm
Rims Alienation Ankle Biter, 28h
Front Hub Flight Alum SB w/Hollow Flight Axle & Race Skewer
Rear Hub Flight Alum SB Cassette w/Hollow Chromo Axle
Spokes Stainless Steel 15G
Tires Tioga PowerBlock 20 x 1-1/8"
Crankset RL 155mm Microline 2pc Forged 6061 Aluminum
Bottom Bracket External Sealed Euro BB
Pedals Redline Jr. Aluminum Platform / Chromo Axle
Brake Promax MV-88, 85mm , Directional cartridge pads
Brake Lever RL Spec
Chain KMC HP6L Hollow Plate
Gearing 37/14
Extras Redline Chain Tensioners
Bicycle Weight 13 lbs 11 oz.(without pedals)

Additional Information

Barcode 133866
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over
