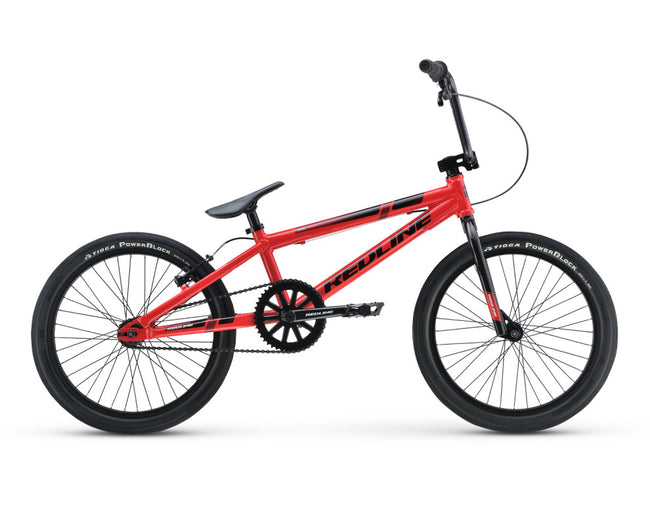

Redline MX-20 Bike-Red

Redline
Sold Out

About This Product: Redline MX-20 Bike-Red

PRODUCT DETAILS

Ready to hit the track out of the box. 6061 Alloy frame, Three piece crank and integrated headset. The perfect choice for the new racer or someone returning to the sport.


KEY FEATURES

  • 6061 Aluminum ,Integrated HT, Ovalized Anti-Flex Stays
  • Pivotal Race Saddle
  • Chromo 3pc Cranks
  • Tioga Power Block Tires


Top Tube N/A
Head Angle 74˚
Seat Angle 70˚
BB Height 12"
Chainstay 15.1"

Frame 6061 Aluminum ,Integrated HT, Ovalized Anti-Flex Stays
Fork RL Race Chromo Steer, Taperd leg, 30mm Off set
Colors Gloss Silver, Gloss Red
Headset Integrated 1 1/8"
Stem RL Hollowpoint Aluminum 55mm Threadless with M8 bolts
Handlebar RL Race 8" , 10¡ Back, 4¡ up
Grips Redline Hex Pro w/plugs
Seat Pivotal Race
Seat Post Pivotal 26.8
Seat Post Clamp Alloy 31.8
Rims Race 20 x 1.75, 36h
Front Hub RL Aluminum
Rear Hub RL Aluminum Flip-Flop
Spokes Black 14g
Tires Tioga PowerBlock (F)20 x 1.9 / (R)20 x 1.75" Tires
Crankset RL Chromo 175mm 3pc Cranks
Bottom Bracket Sealed Euro
Pedals RL Aluminum 9/16" Platform
Brake Tektro 918 Linear
Brake Lever Tektro
Chain KMC Z410
Gearing 44/16
Extras
Bicycle Weight 20 lbs 15 oz

Additional Information

Barcode 133874
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over
