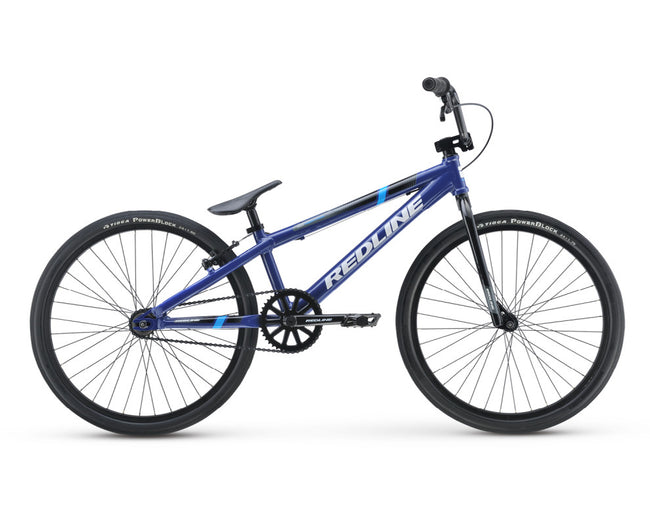

Redline MX-24 Pro Cruiser 24" BMX Race Bike-Blue

Redline
Sold Out

About This Product: Redline MX-24 Pro Cruiser 24" BMX Race Bike-Blue

PRODUCT DETAILS

Ready to hit the track out of the box. 6061 Alloy frame, Three piece crank and integrated headset. The perfect choice for the new racer or someone returning to the sport.

KEY FEATURES

  • 6061 Aluminum ,Integrated HT, Ovalized Anti-Flex Stays
  • Pivotal Race Saddle
  • Chromo 3pc Cranks
  • Tioga Power Block Tires

Top Tube 21.8"
Head Angle 74˚
Seat Angle 70˚
BB Height 12"
Chainstay 15.1"


Frame 6061 Aluminum ,Integrated HT, Ovalized Anti-Flex Stays
Fork RL Race Chromo Steer, Taperd leg, 30mm Off set
Colors Gloss Silver, Gloss Dark Blue
Headset Integrated 1 1/8"
Stem RL Hollowpoint Aluminum 55mm Threadless with M8 bolts
Handlebar RL Race 5.5" , 12¡ Back 1¡ Up
Grips Redline Hex Pro w/plugs
Seat Pivotal Race
Seat Post Pivotal 26.8
Seat Post Clamp Alloy 31.8
Rims Race 24 x 1.75, 36h
Front Hub RL Aluminum
Rear Hub RL Aluminum Flip-Flop
Spokes Black 14g
Tires Tioga PowerBlock (F)24 X 1.75" / (R) 24 X 1.60" Tires
Crankset RL Chromo 175mm 3pc Cranks
Bottom Bracket Sealed Euro
Pedals RL Aluminum 9/16" Platform
Brake Tektro 918 Linear
Brake Lever Tektro
Chain KMC Z410
Gearing 41/18
Extras
Bicycle Weight 21 lbs 15 oz

Additional Information

Barcode 133872
Special Shipping Group Oversized_Items

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
