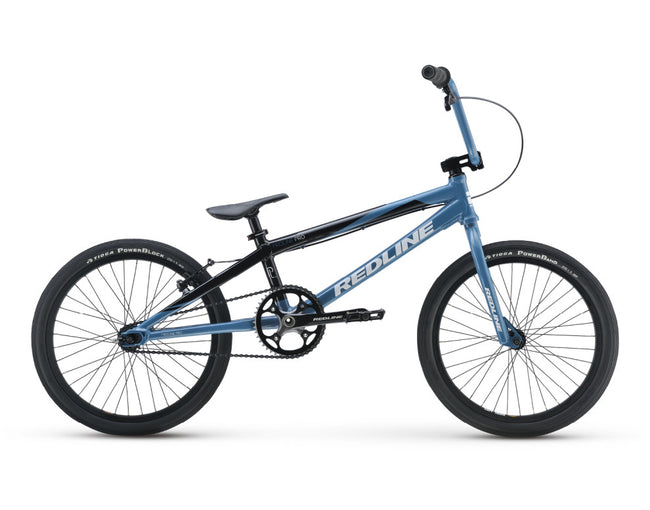

Redline Proline Pro XL Bike-Gloss Black/Gray

Name: Redline Proline Pro XL Bike-Gloss Black/Gray
Brand: Redline
Price: 749.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Proline Pro XL Bike-Gloss Black/Gray

PRODUCT DETAILS

For the rider looking to get serious about racing. Proprietary Redline formed 6061-T-6 alloy frame, sealed hubs and 100% Chromoly butted and tapered race fork for performance and value that is top of the class.

KEY FEATURES

Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
Redline Fully Sealed Aluminum Rear Cassette Hub , Fully Sealed Front Hub
RL 100% Full Chromo Fork, Multi Butted with Tapered Legs
2-pc Alloy Forged Cranks w/24mm Chromo Spindle
No padding Pivotal seat w/quick release seat clamp
Tioga Power Block tires

Top Tube	20.4"
Head Angle	73˚
Seat Angle	69˚
BB Height	11.5"
Chainstay	14.5" - 15.5"

Frame	Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
Fork	RL 100% Full Chromo, Multi Butted with Tapered Legs
Colors	Gloss Black/Gray
Headset	Integrated Headset 1 1/8, Aluminum top cap
Stem	RL Aluminum HollowPoint 55mm
Handlebar	RL Pro Chromo 8" 12˚ Back, 1˚ Up
Grips	RL Pro Hex Grips
Seat	Pivotal No padding
Seat Post	Aluminum Pivotal 26.8mm
Seat Post Clamp	Redline Quick Release Aluminum 31.8mm
Rims	Sun Rhyno Lite
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Black, Stainless Steel
Tires	Tioga PowerBand F. 20 x 1.85" / PowerBlock R. 20 x 1.6" Tires
Crankset	2pc Alloy Forged Cranks 180mm w/24mm Chromo Spindle
Bottom Bracket	Sealed Euro BB
Pedals	RL Aluminum 9/16" Platform
Brake	Tektro 930AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	44/16
Extras	Redline Chain Tensioners

Additional Information

Barcode	138644
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
