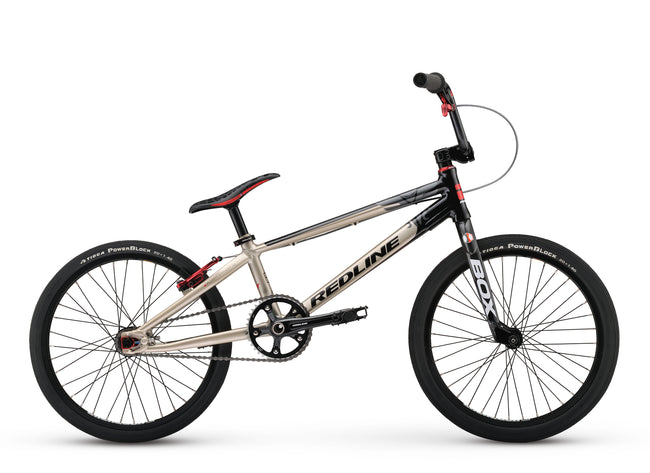

Redline Flight Expert XL Bike-Champagne/Black

Name: Redline Flight Expert XL Bike-Champagne/Black
Brand: Redline
Price: 899.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Flight Expert XL Bike-Champagne/Black

PRODUCT DETAILS

Redline Flight bicycles are designed to win races. The Flight Expert XL features: Redline Proprietary R7 formed and butted tubing press-fit BB-86 RL convertible dropouts and 1-1/8 Integrated headtube BOX Pro Lite XL carbon fork RL Microline 170mm 2pc cranks Flight 120 15mm cassette hub Alienation MIA rims wrapped in Tioga PowerBlock 20x1.6" Front / 20x1.4" Rear tires . No gimmicks just winning. Features

Redline Microline 2pc 6061 Aluminum Cranks
BOX Pro Lite Carbon “XL” Forks w/Alloy Steer and 3/8 dropouts
Redline Flight 120 Instant Cassette Hub w/15mm Through Axle
Alienation MIA Rims
Tioga Power Block Tires

Recommended Rider Height: 4'10" - 5'3"

Top Tube	20"
Head Angle	73°
Seat Angle	69°
BB Height	11.2"
Chainstay	13.25"

Frame	Proprietary R7 Alloy Formed and Butted Tubing
Fork	BOX Carbon Pro Lite "XL" w Alloy steer and 3/8 dropout
Colors	Champagne/Black
Headset	FSA PC Impact Integrated 1 1/8"
Stem	RL Flight Forged+CNC Aluminum
Handlebar	RL Expert XL Cromo, 28.5" W x 6.5" T, 10° Back, 4° up
Grips	RL Flight Locking 145mm
Seat	Tioga D-Spyder S-Spec Pivotal
Seat Post	RL Spec Aluminum Pivotal, Micro Adjust, 26.8mm
Seat Post Clamp
Rims	Alienation MIA, 36h
Front Hub	RL Alum SB w/ Chromo Axle
Rear Hub	RL Cassette Hub, Alum, 6 Pawls, SB, 15mm Through Axle
Spokes	Stainless Steel 14G
Tires	Tioga PowerBlock (F)20 x 1.6" / (R) 20 x 1.4" Tires
Crankset	RL Microline 2pc, Forged 6061 Aluminim, 170mm
Bottom Bracket	Sealed Press-Fit BB86
Pedals	RL Spec Aluminum Platform 9/16
Brake	Promax TX-131, 108mm , Directional cartridge pads
Brake Lever	Promax w/ Lock-on grip Integration
Chain	KMC HP6L Hollow Plate
Gearing	38/14
Extras	3/8 and 15mm Chain Adjusters

Weight:

Additional Information

Barcode	139251
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
