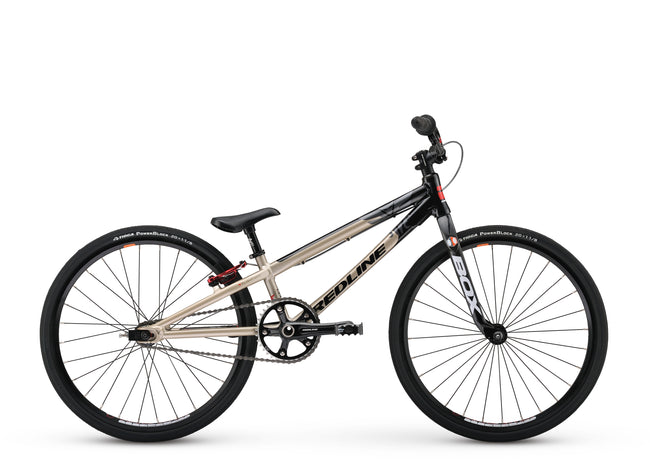

Redline Flight Mini Bike-Champagne/Black

Name: Redline Flight Mini Bike-Champagne/Black
Brand: Redline
Price: 699.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Flight Mini Bike-Champagne/Black

PRODUCT DETAILS

Recommended Rider Height: 3' 10" - 4' 8"

Top Tube	17.5"
Head Angle	72°
Seat Angle	69°
BB Height	10.5"
Chainstay	12.5"

Frame	Proprietary R6 Alloy Formed and Butted Tubing
Fork	BOX Carbon Mini XS
Colors	Champagne/Black
Headset	FSA Orbit IS 1"
Stem	RL Microline Forged Aluminum , Laser etched, 40mm , Cromo Allen bolts
Handlebar	RL Mini 6061 T-6 Aluminum, 22" W x 2.5" T, 10° back , 2° up
Grips	Redline Mini Hex
Seat	RL Microline Integrated Saddle post combo 22.2mm
Seat Post
Seat Post Clamp
Rims	Alienation Ankle Biter, 28h
Front Hub	Flight Alum SB w/Hollow Flight Axle & Race Skewer
Rear Hub	RL Alum SB Cassette w/3/8" Hollow Chromo Axle
Spokes	Stainless Steel 15G
Tires	Tioga PowerBlock 20 x 1-1/8"
Crankset	RL Microline 2pc, Forged 6061 Aluminim, 140mm
Bottom Bracket	External Sealed Euro BB
Pedals	Redline Jr. Aluminum Platform / Chromo Axle
Brake	Promax MV-88, 85mm , Directional cartridge pads
Brake Lever
Chain	KMC HP6L Hollow Plate
Gearing	37t, Alloy, 110 BCD, 14t cogset
Extras	Redline Chain Tensioners

Weight:

Additional Information

Barcode	139253
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over

Need Some help Choosing a BMX Bike?

Selecting the right size BMX bike is vital for a smooth and delightful ride. At J&R Bicycles, we understand the BMX world inside out because we're passionate riders ourselves. Just reach out to us, and we'll be more than happy to assist you on your journey to finding the perfect BMX bike.

Curious to learn more? We've compiled a comprehensive BMX buyer's guide to demystify the process. Read on, and together, we'll uncover the BMX bike that perfectly matches your riding style and preferences.

Read The Guide
