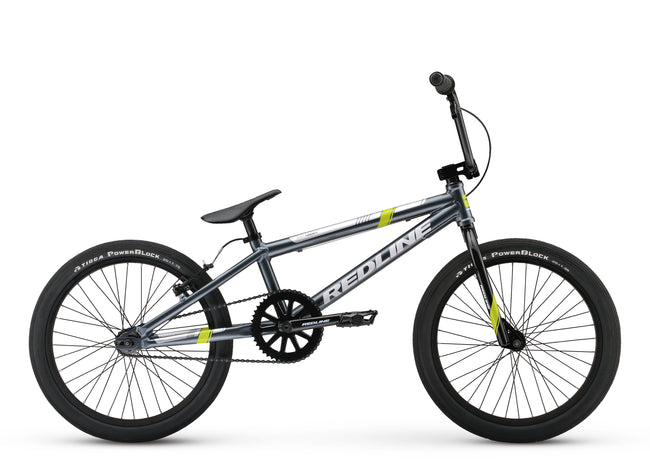

Redline MX 20 Bike-Gray

Redline MX 20 Bike-Gray

Name: Redline MX 20 Bike-Gray
Brand: Redline
Price: 299.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline MX 20 Bike-Gray

PRODUCT DETAILS

Ready to hit the track out of the box. Featuring a 6061 alloy frame Three piece crank and integrated headset. The MX-20 is a perfect choice for the new and experienced racer.

Features

6062 Aluminum, Integrated HT, Ovalized Anti-Flex Stays
Pivotal Race Saddle
Chromo 3pc Crank
Tioga Power Block Tires

Recommended Rider Height: 5' - 5' 8"

Top Tube	20.25"
Head Angle	74°
Seat Angle	70°
BB Height	11.5"
Chainstay	15.5"

Frame	6065 Alloy w/Integrated Headtube
Fork	RL Race Hi-Ten w/ Tapered legs
Colors	Gray
Headset	Integrated 1 1/8"
Stem	RL Hollow Point Aluminum 1 1/8" threadless
Handlebar	RL Race 8" , 10° Back, 4° up
Grips	Redline Hex expert w/plugs
Seat	Pivotal Race
Seat Post	Pivotal 26.9
Seat Post Clamp
Rims	Alloy Race 20 x 1.75, 36h
Front Hub	Redline Aluminum
Rear Hub	RL Aluminum Flip-Flop
Spokes
Tires	Tioga PowerBlock (F)20 x 1.9 / (R)20 x 1.75" Tires
Crankset	Race Chromo 175mm 3pc Cranks
Bottom Bracket	Euro
Pedals	RL Aluminum 9/16" Platform
Brake	Tektro 918 Linear
Brake Lever	Tektro
Chain	KMC Z410
Gearing	44t, Alloy, 16t cogset
Extras

Weight:

Additional Information

Barcode	139263
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
