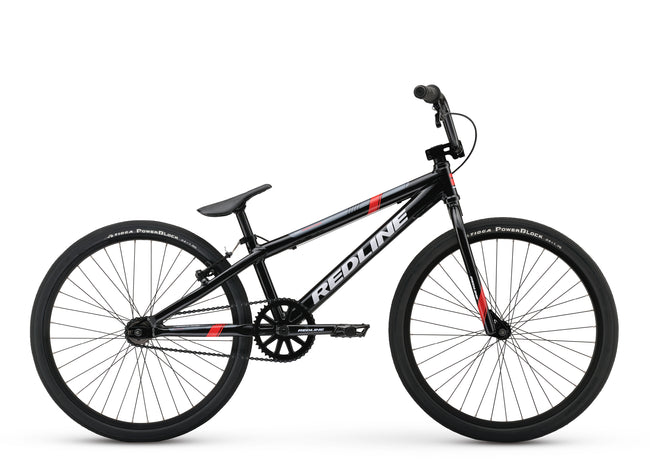

Redline MX 24 Pro Cruiser 24" BMX Race Bike-Black

Name: Redline MX 24 Pro Cruiser 24" BMX Race Bike-Black
Brand: Redline
Price: 329.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline MX 24 Pro Cruiser 24" BMX Race Bike-Black

PRODUCT DETAILS

Ready to hit the track out of the box. Featuring a 6061 alloy frame Three piece crank and integrated headset. The MX-24 is a perfect choice for the new racer or an experienced racer returning to the sport.

Features

6063 Aluminum, Integrated HT, Ovalized Anti-Flex Stays
Pivotal Race Saddle
Chromo 3pc Crank
Tioga Power Block Tires

Recommended Rider Height: 5' 10" +

Top Tube	21.8"
Head Angle	74°
Seat Angle	70°
BB Height	12"
Chainstay	15.1"

Frame	6066 Alloy w/Integrated Headtube
Fork	RL Race Hi-Ten w/ Tapered legs
Colors	Black
Headset	Integrated 1 1/8"
Stem	RL Hollow Point Aluminum 1 1/8" threadless
Handlebar	RL Race 5.5" , 12° Back 1° Up
Grips	Redline Hex expert w/plugs
Seat	Pivotal Race
Seat Post	Pivotal 26.9
Seat Post Clamp
Rims	Alloy Race 24 x 1.75, 36h
Front Hub	Redline Aluminum
Rear Hub	RL Aluminum Flip-Flop
Spokes
Tires	Tioga PowerBlock (F)24 X 1.75" / (R) 24 X 1.60" Tires
Crankset	Race Chromo 175mm 3pc Cranks
Bottom Bracket	Euro
Pedals	RL Aluminum 9/16" Platform
Brake	Tektro 918 Linear
Brake Lever	Tektro
Chain	KMC Z410
Gearing	41t, Alloy, 18t cogset
Extras

Weight:

Additional Information

Barcode	139264
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE	HEIGHT	TYPICAL AGE
FRAME/BIKE SIZE: MICRO	HEIGHT: 3' - 3'7"	TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI	HEIGHT: 3'4" - 4'	TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR	HEIGHT: 3'10" - 4'5"	TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT	HEIGHT: 4'2" - 4'9"	TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL	HEIGHT: 4'6" - 5'2"	TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO	HEIGHT: 4'9" - 5'7"	TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL	HEIGHT: 5'6" - 6'1"	TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL	HEIGHT: 5'9" - 6'5"	TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL	HEIGHT: 6'3" - 6'9"	TYPICAL AGE:

Need Some help Choosing a BMX Bike?

Selecting the right size BMX bike is vital for a smooth and delightful ride. At J&R Bicycles, we understand the BMX world inside out because we're passionate riders ourselves. Just reach out to us, and we'll be more than happy to assist you on your journey to finding the perfect BMX bike.

Curious to learn more? We've compiled a comprehensive BMX buyer's guide to demystify the process. Read on, and together, we'll uncover the BMX bike that perfectly matches your riding style and preferences.

Read The Guide
