Name: Redline MX Expert Bike-Blue
Brand: Redline
Price: 279.95 USD
Availability: Discontinued

Redline

Sold Out

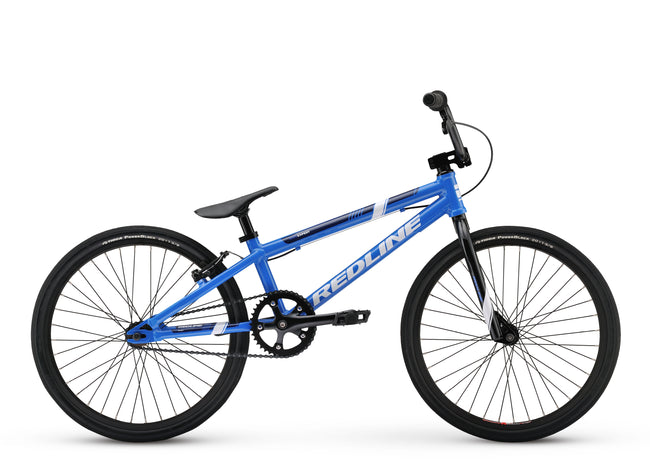

About This Product: Redline MX Expert Bike-Blue

PRODUCT DETAILS

Ready to hit the track out of the box. Featuring a 6061 alloy frame Three piece crank and integrated headset. The MX Expert is available in XL (20 Top Tube) or Standard (19.5 Top Tube) sizes. The Mx Experts are a perfect choice for the new and experienced Expert racers.

Features

6059 Aluminum, Integrated HT, Ovalized Anti-Flex Stays
Pivotal Race Saddle
Chromo 3pc Crank
Tioga Power Block Tires

Recommended Rider Height:

Top Tube	19.5"
Head Angle	73°
Seat Angle	69°
BB Height	11.4"
Chainstay	13.75"

Frame	6061 Alloy w/Integrated Headtube
Fork	RL Race Hi-Ten w/ Tapered legs
Colors	Blue
Headset	Integrated 1 1/8"
Stem	RL Hollow Point Aluminum 1 1/8" threadless
Handlebar	RL Race 5.5" , 12° Back 1° Up
Grips	Redline Hex expert w/plugs
Seat	Pivotal Race
Seat Post	Pivotal 26.8
Seat Post Clamp
Rims	Alloy Race 20 x 1 1/8, 36h
Front Hub	Redline Aluminum
Rear Hub	RL Aluminum Flip-Flop
Spokes
Tires	Tioga PowerBlock 20 x 1-3/8" Tires
Crankset	Race Aluminum 3pc, 165mm
Bottom Bracket	Euro
Pedals	RL Race 9/16" PC pedal
Brake	Tektro BX-1 Linear
Brake Lever	Tektro
Chain	KMC Z410
Gearing	39t, Alloy, 15t cogset
Extras

Weight:

Additional Information

Barcode	139258
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
