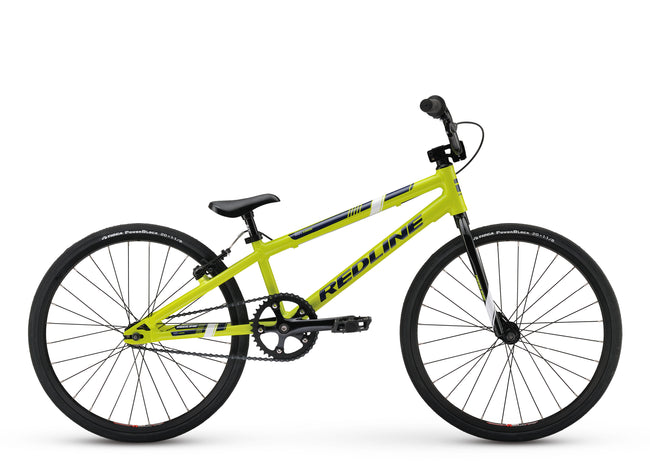

Redline MX Junior Bike-Lime Green

Redline MX Junior Bike-Lime Green

Name: Redline MX Junior Bike-Lime Green
Brand: Redline
Price: 249.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline MX Junior Bike-Lime Green

PRODUCT DETAILS

Ready to hit the track out of the box. Featuring a 6061 alloy frame Three piece crank and integrated headset. The MX Junior is a perfect choice for the new and experienced Junior racer.

Features

6061 Aluminum, Integrated HT, Ovalized Anti-Flex Stays
RL Race Integrated Saddle/Post combo
Alloy 3pc Cranks
Tioga Power Block Tires

Recommended Rider Height: 4' 4" - 4' 9"

Top Tube	18.5"
Head Angle	73°
Seat Angle	69°
BB Height	10.8"
Chainstay	13.5"

Frame	6063 Alloy w/Integrated Headtube
Fork	RL Race Hi-Ten w/ Tapered legs
Colors	Lime Green
Headset	Integrated 1"
Stem	RL Hollow Point Aluminum 1 1/8" threadless
Handlebar	RL Race Aluminum 3" , 10° Back 2° Up
Grips	Redline Hex expert w/plugs
Seat	RL Race Integrated w/22.2 Post
Seat Post
Seat Post Clamp
Rims	Alloy Race 20 x 1 1/8
Front Hub	Redline Aluminum
Rear Hub	RL Aluminum Flip-Flop
Spokes
Tires	Tioga PowerBlock 20 x 1-1/8" Tires
Crankset	Race Aluminum 3pc, 155mm
Bottom Bracket	Euro, Square Taper JIS
Pedals	RL Race 9/16" PC pedal
Brake	Tektro 926 Linear
Brake Lever	Tektro
Chain	KMC Z410
Gearing	38t, Alloy, 14t cogset
Extras

Weight:

Additional Information

Barcode	139260
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
