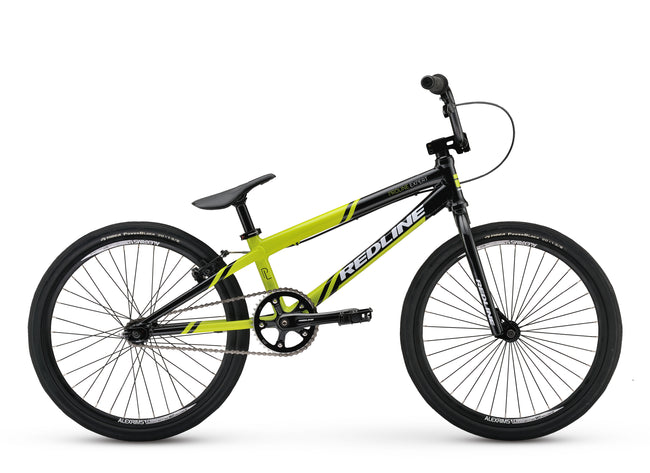

Redline Proline Expert Bike-Lime Green/Black

Name: Redline Proline Expert Bike-Lime Green/Black
Brand: Redline
Price: 479.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Proline Expert Bike-Lime Green/Black

PRODUCT DETAILS

The Proline Expert (19.5" TT) is designed for the rider looking to get serious about racing. Proprietary Redline formed 6061-T-6 alloy frame sealed hubs and 100% CrMo butted and tapered race fork for performance and value that is at top of the class. Features: 1-1/8" Integrated headset Euro Threaded BB RL Sealed bearing cassette hub and sealed bearing front hub RL Microline 3pc cranks RL no-padding Pivotal Seat QR seatpost collar and Sun ICI-1 alloy rims wrapped in Tioga PowerBlock 20x1-3/8" tires. Features

Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
RL 100% Full Chromo Fork, Multi Butted with Tapered Legs
Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
Redline Microline 3pc, Cranks
No padding Pivotal seat w/quick release seat clamp
Tioga Power Block Tires

Recommended Rider Height: 4' 6" - 5' 2"

Top Tube	19.5"
Head Angle	73°
Seat Angle	69°
BB Height	11"
Chainstay	13.25"

Frame	Proprietary Alloy Formed and Butted Tubing
Fork	Full Chromo With Tapered Legs
Colors	Lime Green/Black
Headset	Sealed Integrated Headset 1 1/8, Aluminum top cap
Stem	RL Aluminum HollowPoint
Handlebar	RL Expert Aluminum 5.5" 10° Back, 2° Up
Grips	RL Pro Hex Grips
Seat	Pivotal No padding
Seat Post	Aluminum Pivotal 26.8mm
Seat Post Clamp
Rims	Alex DA22, 20 x 1 1/8, 36h
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Stainless 14g, Black
Tires	Tioga PowerBlock 20 x 1-3/8" Tires
Crankset	Redline Microline 3pc 165mm,Cranks
Bottom Bracket	Sealed Euro BB
Pedals	RL Aluminum 9/16" Platform
Brake	Tektro BV-1V Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	39t, Alloy, 110 BCD, 15t cogset
Extras	Redline Chain Tensioners

Weight:

Additional Information

Barcode	139266
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
