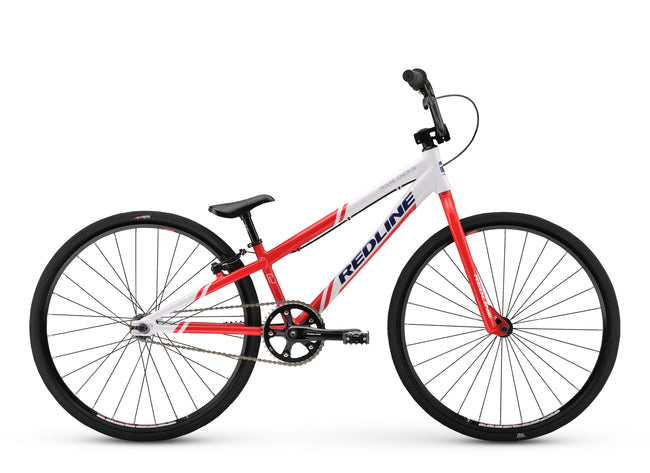

Redline Proline Junior Cruiser 24" BMX Race Bike-White/Red

Name: Redline Proline Junior Cruiser 24" BMX Race Bike-White/Red
Brand: Redline
Price: 479.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Proline Junior Cruiser 24" BMX Race Bike-White/Red

PRODUCT DETAILS

The Proline Junior 24 is designed for the younger rider looking to get seriousand jump into the cruiser class. Proprietary Redline formed 6061-T-6 alloy frame, sealed hubs and 100% CrMo butted and tapered race fork for performance and value that is at top of the class. Features: 1" Integrated headse,t Euro Threaded BB, RL Sealed bearing cassette hub and sealed bearing front hub, RL Microline 3pc cranks, RL Mincroline Seat/Post combo and Alienation Ankle Biter alloy rims wrapped in Vee Speedster 24x1-1/8" tires.

Features

Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
RL Mini/JR Fork 100% Full Chromo Steerer with Tapered Legs
Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
Redline Microline 3pc, Cranks
Redline Microline Seat/Post combo
Vee Speedster tires

Recommended Rider Height: 4' 6" - 5' 2"

Top Tube	19.8"
Head Angle	73°
Seat Angle	69°
BB Height	10.6"
Chainstay	14.3"

Frame	Proprietary Alloy Formed and Butted Tubing
Fork	Full Chromo With Tapered Legs
Colors	White/Red
Headset	Sealed Integrated 1"
Stem	RL Mini Aluminum HollowPoint 40mm
Handlebar	RL Junior Aluminum 4.5" 10° Back x 2° Up
Grips	RL Mini Hex Grips
Seat	RL Microline Seat/Post Combo 22.2 Aluminum post
Seat Post
Seat Post Clamp
Rims	Alienation Ankle Biter, 24 x 1 1/8, 28h
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Stainless 14g, Black
Tires	Vee Speedster 24 x 1-1/8" Tires
Crankset	RL Microline 3pc 155mm,Cranks
Bottom Bracket	Sealed Euro BB
Pedals	Redline Jr Aluminum Platform / Chromo Spindle
Brake	Tektro 926AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	39t, Alloy, 110 BCD, 16t cogset
Extras	Redline Chain Tensioners

Weight:

Additional Information

Barcode	139269
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE	HEIGHT	TYPICAL AGE
FRAME/BIKE SIZE: MICRO	HEIGHT: 3' - 3'7"	TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI	HEIGHT: 3'4" - 4'	TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR	HEIGHT: 3'10" - 4'5"	TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT	HEIGHT: 4'2" - 4'9"	TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL	HEIGHT: 4'6" - 5'2"	TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO	HEIGHT: 4'9" - 5'7"	TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL	HEIGHT: 5'6" - 6'1"	TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL	HEIGHT: 5'9" - 6'5"	TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL	HEIGHT: 6'3" - 6'9"	TYPICAL AGE:

Need Some help Choosing a BMX Bike?

Selecting the right size BMX bike is vital for a smooth and delightful ride. At J&R Bicycles, we understand the BMX world inside out because we're passionate riders ourselves. Just reach out to us, and we'll be more than happy to assist you on your journey to finding the perfect BMX bike.

Curious to learn more? We've compiled a comprehensive BMX buyer's guide to demystify the process. Read on, and together, we'll uncover the BMX bike that perfectly matches your riding style and preferences.

Read The Guide
