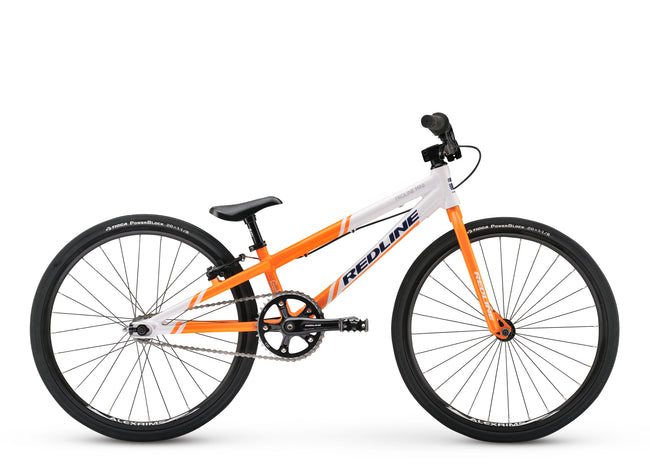

Redline Proline Mini Bike-White/Orange

Name: Redline Proline Mini Bike-White/Orange
Brand: Redline
Price: 449.95 USD
Availability: Discontinued

Redline

Sold Out

About This Product: Redline Proline Mini Bike-White/Orange

PRODUCT DETAILS

The Proline Mini is designed for the rider looking to get serious about racing. Proprietary Redline formed 6061-T-6 alloy frame sealed hubs and 100% CrMo butted and tapered race fork for performance and value that is at top of the class. Features: 1" Integrated headset Euro Threaded BB RL Sealed bearing cassette hub and sealed bearing front hub RL Microline 3pc cranks RL Mincroline Seat/Post combo and Sun M13II alloy rims wrapped in Tioga 20x1-1/8" PowerBlock tires. Features

Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
RL Mini/JR Fork 100% Full Chromo Steerer with Tapered Legs
Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
Redline Microline 3pc, Cranks
Redline Microline Seat/Post combo
Tioga Power Block Tires

Recommended Rider Height: 3' 10" - 4' 8"

Top Tube	17.5"
Head Angle	72°
Seat Angle	69°
BB Height	10.5"
Chainstay	12.5"

Frame	Proprietary Alloy Formed and Butted Tubing
Fork	Full Chromo With Tapered Legs
Colors	White/Orange
Headset	Sealed Integrated 1"
Stem	RL Mini Aluminum HollowPoint 40mm
Handlebar	RL Mini Aluminum 2.5" 10° Back x 2° Up
Grips	RL Mini Hex Grips
Seat	RL Microline Seat/Post Combo 22.2 Aluminum post
Seat Post
Seat Post Clamp
Rims	Alex R450, 20 x 1 1/8, 28h
Front Hub	Redline Aluminum Fully Sealed
Rear Hub	Redline Aluminum, Cassette , Fully Sealed
Spokes	Stainless 14g, Black
Tires	Tioga PowerBlock 20 x 1-1/8" Tires
Crankset	RL Microline 3pc 140mm,Cranks
Bottom Bracket	Sealed Euro BB
Pedals	Redline Jr Aluminum Platform / Chromo Spindle
Brake	Tektro 926AL Linear
Brake Lever	Tektro
Chain	KMC Z33
Gearing	38t, Alloy, 110 BCD, 14t cogset
Extras	Redline Chain Tensioners

Weight:

Additional Information

Barcode	139271
Special Shipping Group	No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size	Rider's Height
: Micro	: 4'4" and under
: Mini	: 4'2" - 4'6"
: Junior	: 4'6" - 5'1"
: Pitboss	: 4'2" - 5'1"
: Expert	: 5'0" - 5'4"
: Expert XL	: 5'2" - 5'6"
: Pro	: 5'3" - 5'8"
: Pro XL	: 5'7" - 6'0"
: Pro XXL	: 6'0" and over
: Pro 24	: 5'7" and over
