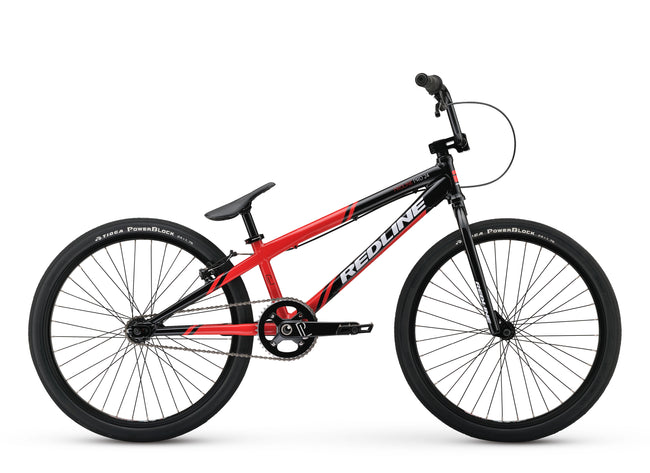

Redline Proline Pro Cruiser 24" BMX Race Bike-Red/Black

Redline
Sold Out

About This Product: Redline Proline Pro Cruiser 24" BMX Race Bike-Red/Black

The Redline Proline Pro Cruiser 24" BMX Race Bike-Red/Black is designed for the rider looking to get serious about racing or making a serious return to the sport. Proprietary Redline formed 6061-T-6 alloy frame sealed hubs and 100% CrMo butted and tapered race fork for performance and value that is at top of the class. Features: 1-1/8" Integrated headset Machined Euro Threaded BB shell RL Sealed bearing cassette hub and sealed bearing front hub RL Alloy 2pc cranks RL no-padding Pivotal Seat QR seatpost collar and Sun Rhyno Lite alloy rims wrapped in Tioga PowerBlock 24x1.75" Front / 24x1.6" Rear tires.

FEATURES

  • Redline Proprietary 6061 T6 Alloy Formed Tubing, Integrated HT, Euro BB
  • RL 100% Full Chromo Fork, Multi Butted with Tapered Legs
  • Redline Fully Sealed Aluminum Rear Cassette Hub, Fully Sealed Front Hub
  • 2pc Alloy Forged Cranks w/24mm Chromo Spindle
  • No padding Pivotal seat w/quick release seat clamp
  • Tioga Power Block Tires

SPECIFICATIONS

  • Frame: Proprietary Alloy Formed and Butted Tubing
  • Fork: Full Chromo With Tapered Legs
  • Colors: Red/Black
  • Headset: Sealed Integrated Headset 1 1/8, Aluminum top cap
  • Stem: RL Aluminum HollowPoint 55mm
  • Handlebar: RL Pro Chromo 5.5" 10° Back, 4° Up
  • Grips: RL Pro Hex Grips
  • Seat: Pivotal No padding
  • Seat Post: Aluminum Pivotal 26.8mm
  • Rims: Alex DM24, 24 x 1.75, 36h
  • Front Hub: Redline Aluminum Fully Sealed
  • Rear Hub: Redline Aluminum, Cassette , Fully Sealed
  • Spokes: Stainless 14g, Black
  • Tires: Tioga PowerBlock F. 24 x 1.75" / R. 24 x 1.75"
  • Crankset: Proline 2pc Alloy Forged Cranks, 180mm w/24mm Chromo Spindle
  • Bottom Bracket: External Sealed Euro BB
  • Pedals: RL Aluminum 9/16" Platform
  • Brake: Tektro 930AL Linear
  • Brake Lever: Tektro
  • Chain: KMC Z33
  • Gearing: 41t, Alloy, 104 BCD, 18t cogset
  • Extras: Redline Chain Tensioners

GEOMETRY

  • Top Tube: 21.8"
  • Head Angle: 74°
  • Seat Angle: 70°
  • BB Height: 12"
  • Chainstay: 14.4"

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:

Need Some help Choosing a BMX Bike?

Selecting the right size BMX bike is vital for a smooth and delightful ride. At J&R Bicycles, we understand the BMX world inside out because we're passionate riders ourselves. Just reach out to us, and we'll be more than happy to assist you on your journey to finding the perfect BMX bike.

Curious to learn more? We've compiled a comprehensive BMX buyer's guide to demystify the process. Read on, and together, we'll uncover the BMX bike that perfectly matches your riding style and preferences.

Read The Guide
