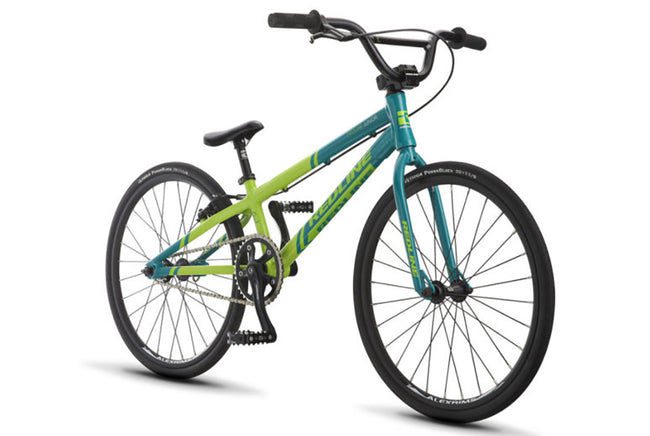

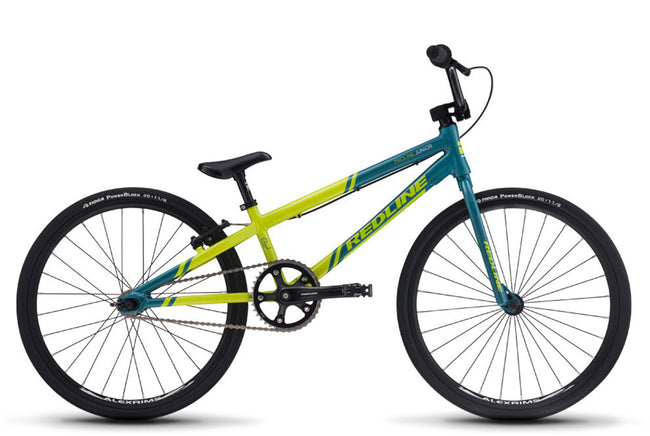

Redline Proline Junior Bike-Gloss Green - 1
Redline Proline Junior Bike-Gloss Green - 2
Redline Proline Junior Bike-Gloss Green - 3

Redline Proline Junior Bike-Gloss Green

Redline
Sold Out

About This Product: Redline Proline Junior Bike-Gloss Green

The Redline 2018 Proline Junior complete BMX race bike is for the rider looking to get serious about racing. Proprietary Redline formed 6061-T-6 alloy frame, sealed hubs and 100% Chromoly butted and tapered race fork for performance and value that is top of the class.

SPECIFICATIONS

  • Frame: Redline Proprietary 6061 T6 Alloy Formed Tubing, Machined BB, Integrated HT, Euro BB
  • Fork: RL Chromo 1"steer tube, tapered legs
  • Colors: Gloss Green
  • Headset: Integrated 1 "Headset
  • Stem: RL Mini Aluminum HollowPoint 40mm
  • Handlebar: RL Junior Aluminum 4.5" 10¡ Back x 2¡ Up
  • Grips: RL Mini Hex Grips
  • Seat: RL Microline Seat/Post Combo 22.2 Aluminum post
  • Seat Post: RL Microline Seat/Post Combo 22.2 Aluminum post
  • Seat Post: Clamp Redline Proline Aluminum 25.4mm
  • Rims: Sun M13II 28h
  • Front Hub: Redline Aluminum Fully Sealed
  • Rear Hub: Redline Aluminum, Cassette , Fully Sealed
  • Spokes: Black, Stainless Steel
  • Tires: Tioga PowerBlock 20 x 1-1/8" Tires

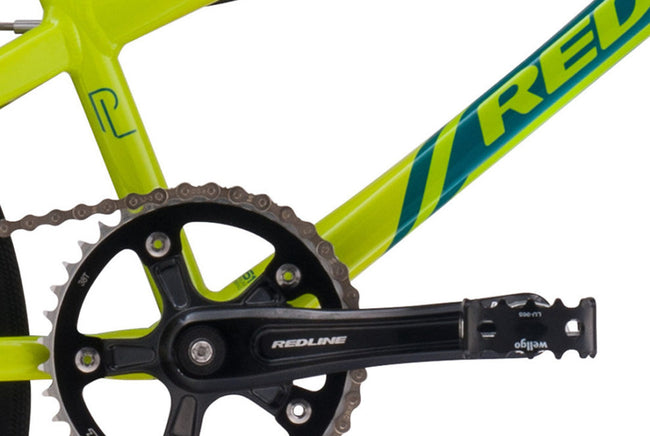

  • Crankset: RL Microline 3pc 155mm,Cranks
  • Bottom Bracket: Sealed Euro BB
  • Pedals: Redline Jr Aluminum Platform / Chromo Spindle
  • Brake: Tektro 926AL Linear
  • Brake Lever: Tektro
  • Chain: KMC Z33
  • Gearing: 38/14
  • Extras: Redline Chain Tensioners
  • Bicycle Weight: 14 lbs 6 oz (without pedals)
  • Top Tube: 18.5"
  • Head Angle: 73˚
  • Seat Angle: 69˚
  • BB Height: 10.8"
  • Chainstay: 13" - 14"

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over

Need Some help Choosing a BMX Bike?

Selecting the right size BMX bike is vital for a smooth and delightful ride. At J&R Bicycles, we understand the BMX world inside out because we're passionate riders ourselves. Just reach out to us, and we'll be more than happy to assist you on your journey to finding the perfect BMX bike.

Curious to learn more? We've compiled a comprehensive BMX buyer's guide to demystify the process. Read on, and together, we'll uncover the BMX bike that perfectly matches your riding style and preferences.
