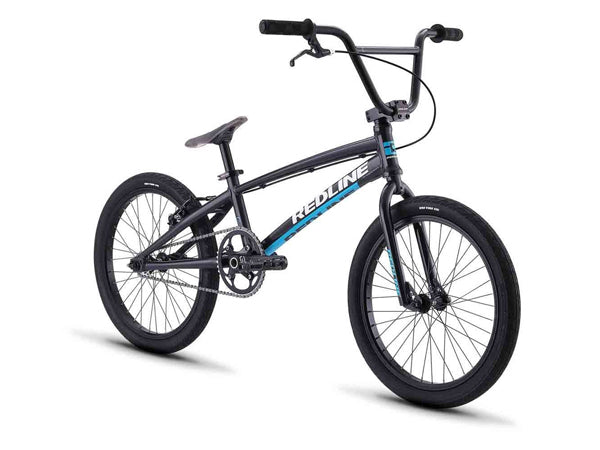

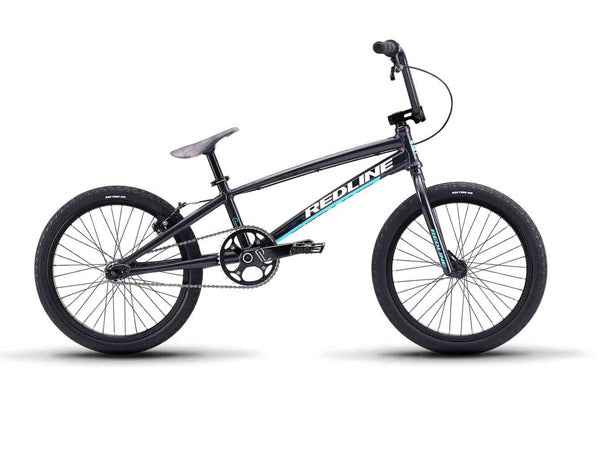

Redline Proline Pro XL 20" Bike-Blue

Redline
Sold Out

About This Product: Redline Proline Pro XL 20" Bike-Blue

The Proline Pro (XL = 21"TT, Pro = 20.5"TT) is designed for the rider looking to get serious about racing. Proprietary Redline formed 6061-T-6 alloy frame sealed hubs and 100 CrMo butted and tapered race fork for performance and value that is at top of the class. Features: 1-1/8" Integrated headset Machined Euro Threaded BB shell RL Sealed bearing cassette hub and sealed bearing front hub RL Alloy 2pc cranks RL no-padding Pivotal Seat QR seatpost collar and alloy rims wrapped in Vee Speed Booster 20 x 1.95" Front / 20 x 1.75" Rear Tires.

SPECIFICATIONS

  • Frame: Proprietary Alloy Formed and Butted Tubing

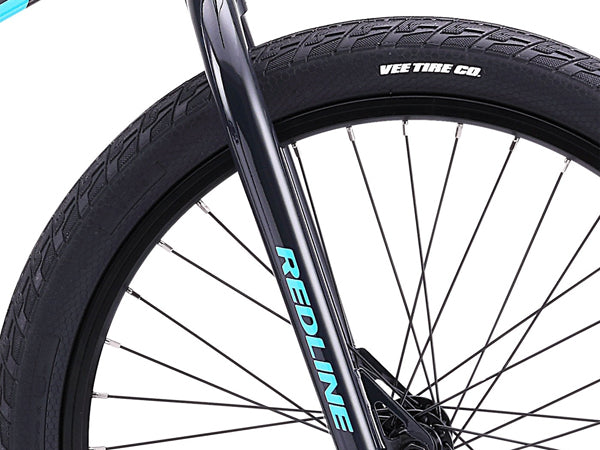

  • Fork Type: Full Chromo With Tapered Legs
  • Headset: Sealed Integrated Headset 1 1/8, Aluminum top cap

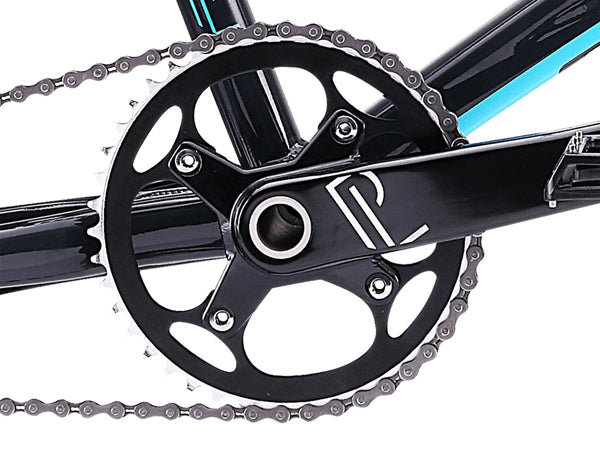

  • Cranks: Proline 2pc Alloy Forged Cranks, 180mm w/24mm Chromo Spindle
  • Sprocket: 44t, Alloy, 104 BCD
  • Bottom Bracket: External Sealed Euro BB
  • Cog Set: 16t
  • Chain: KMC Z6
  • Front Hub: Redline Aluminum Fully Sealed

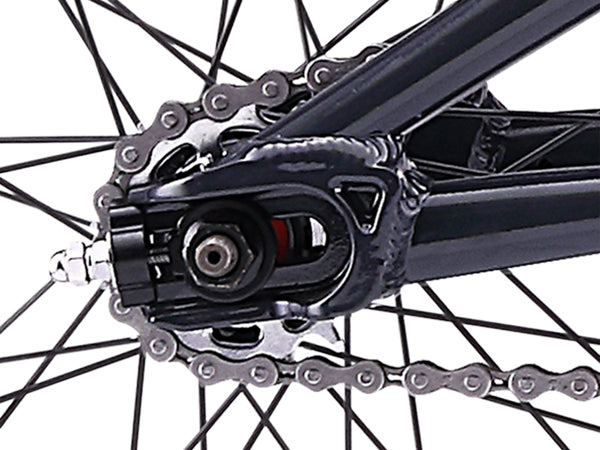

  • Rear Hub: Redline Aluminum, Cassette , Fully Sealed
  • Spokes: Stainless 14g, Black
  • Rims: Alloy Race, 24 x 1.75, 36h
  • Tires: Vee Speed Booster F. 20 x 1.95" / R. 20 x 1.75" Tires
  • Brakes: Tektro 930AL Linear
  • Brake Levers: Tektro
  • Pedals: RL Aluminum 9/16" Platform

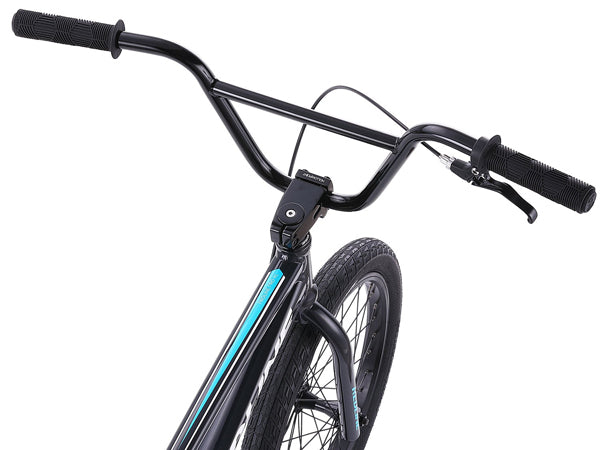

  • Handlebar: RL Pro Chromo 8" Rise/ 10 deg Back/ 4 deg Up

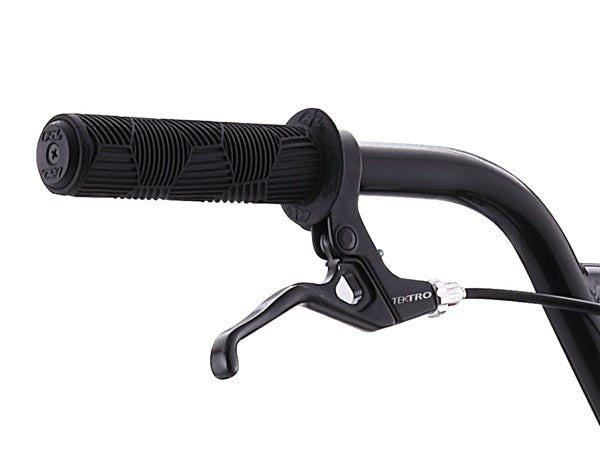

  • Grips: RL Pro Hex Grips
  • Stem: RL Aluminum HollowPoint 55mm

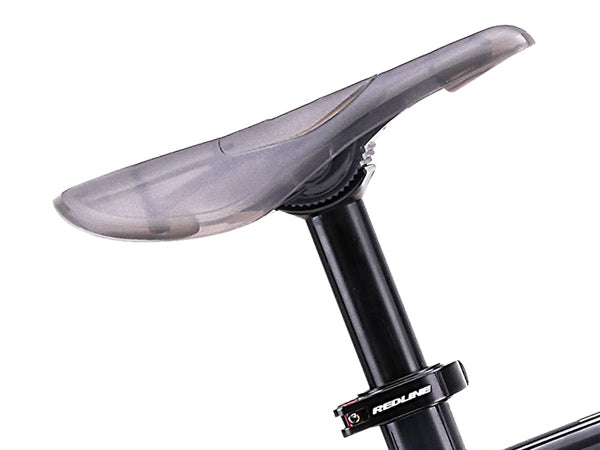

  • Seat: Race Pivotal, No padding
  • Seat Post: Aluminum Pivotal 26.8mm
  • Extras: Chain Tensioners
  • Top Tube: XL = 21"TT, Pro = 20.5"TT

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over
