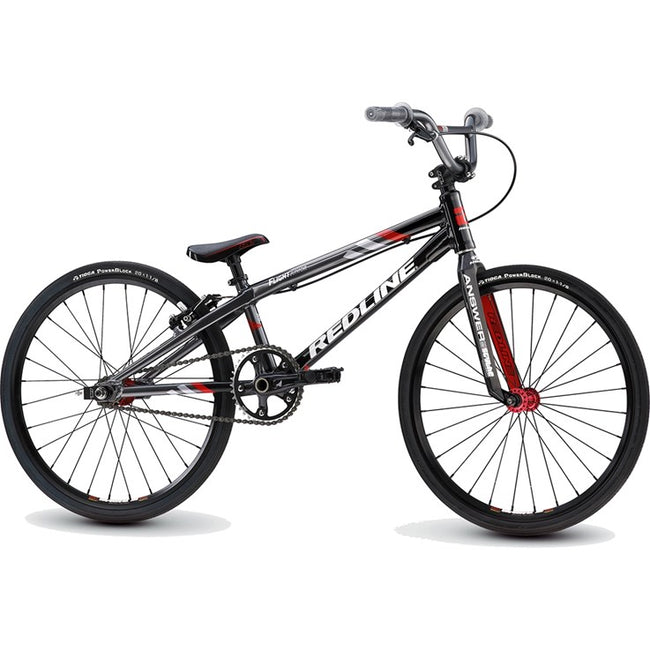

Redline Flight Race Bike-Junior

Redline
Sold Out

About This Product: Redline Flight Race Bike-Junior

PRODUCT DETAILS

FRAME R6 formed aluminum tubing, CNC machined Euro bottom bracket, 3-D drop-outs and Integrated 1 "head tube,
FORK Answer Scythe Mini Carbon with 1 "7075 alloy steerer
HEADSET FSA Orbit IS Integrated 1 "sealed
STEM Redline Microline forged aluminum with chromoly bolts - L40mm
RULE Redline Junior 6061 T-6 aluminum, W24 "x 4.5" rise, 10 degrees back, 2 ° up
GRIPS Redline Mini Hex - W102mm
SEAT Redline Microline Integrated saddle / seatpost combo
SEATPOST Redline Microline Integrated saddle / seatpost combo 22.2mm
SEATPOST CLAMP Flight alloy bolt type - 25.4mm
FRONT RIM Sun Assault SL1 - 28H
REAR RIM Sun Assault SL1 - 28H
FRONT HUB Flight sealed bearing alloy with hollow axle & race skewer - 28H
REAR HUB Flight alloy sealed bearing cassette with hollow chromoly axle - 28H
REAR SPROCKET 14T
SPOKES Stainless steel 15 guage silver
TIRE Tioga Power Block 20 x 1-1 / 8 "
CRANKS Redline Microline 2pc 6061 forged aluminum - L155mm
BOTTOM BRACKET External sealed bearing
FRONT SPROCKET 37T Alloy
PEDAL Redline Jr. aluminum platform with chromoly axle - 9/16 "
BRAKES Linear Pull, L85mm with directional cartridge pads
BRAKE LEVER Tektro
CHAIN KMC HP6L Hollow Plate
OTHER Redline Chain tensioners
WEIGHT 14.5 lbs / 6.5 kgs

Additional Information

Barcode 018940
Special Shipping Group No

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
