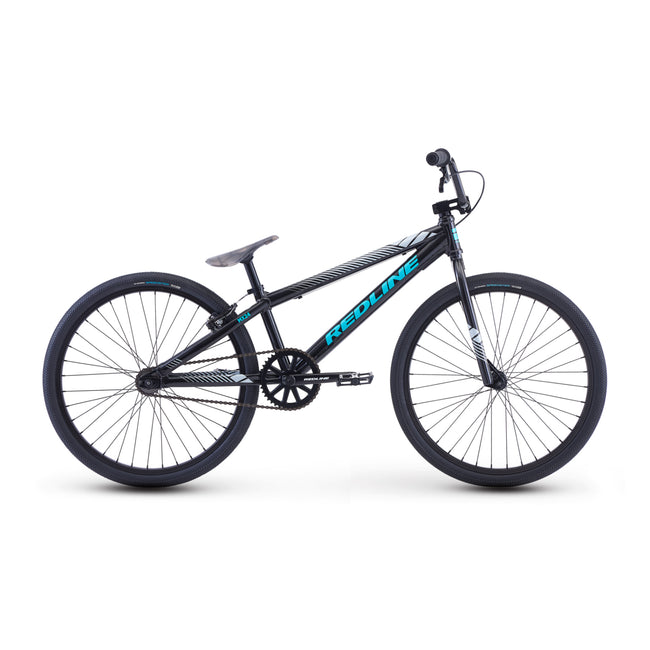

Redline MX 24 Cruiser 24" BMX Race Bike-Gloss Black

Ready to snap the gate for the first time? Returning to the sport? Made with an aluminum frame and integrated head tube, the Redline MX 24 Cruiser 24" BMX Race Bike-Gloss Black is lightweight and easy to maneuver. The MX24 features a high-quality 3-piece crank set, integrated headset, Pivotal Race saddle, and 24 inch wheels. The Redline MX24 is top of class for value and quality, and best of all, it’s race-ready out of the box.

SPECIFICATIONS

• FRAME: 6061 Alloy w/Integrated Headtube
• FORK: RL Race Hi-Ten w/ Tapered legs
• HEADSET: Integrated 1 1/8"
• CRANKS: Race Chromo 175mm 3pc Cranks
• SPROCKET: 41t, Alloy
• BOTTOM BRACKET: Euro
• COGSET: 18t
• CHAIN: KMC Z410
• FRONT HUB: Redline Aluminum
• REAR HUB: RL Aluminum Flip-Flop
• SPOKES: 14g Steel
• RIMS: Alloy Race 24 x 1.75, 36h
• TIRES: Vee Speedster 24 X 1.75"
• BRAKE LEVERS: Tektro
• PEDALS: RL Aluminum 9/16" Platform
• HANDLEBAR: RL Race, 5.5" Rise / 12° Back / 1° Up
• GRIPS: Redline Hex Expert w/plugs
• STEM: RL Hollow Point Aluminum 1 1/8" threadless
• SEAT: Pivotal Race
• SEATPOST: Pivotal 26.8
• BRAKES: Tektro BX310 Linear

GEOMETRY

• Frame Size: 24"
• Top Tube Length: 21.8"
• Head Angle: 74.0°
• Seat Angle: 70.0°
• Chain Stay Length: 15.1"
• Bb Height: 12.0"
• Stem Length: 55.0"
• Handlebar Width: 28.0"
• Crank Length: 175.0"
