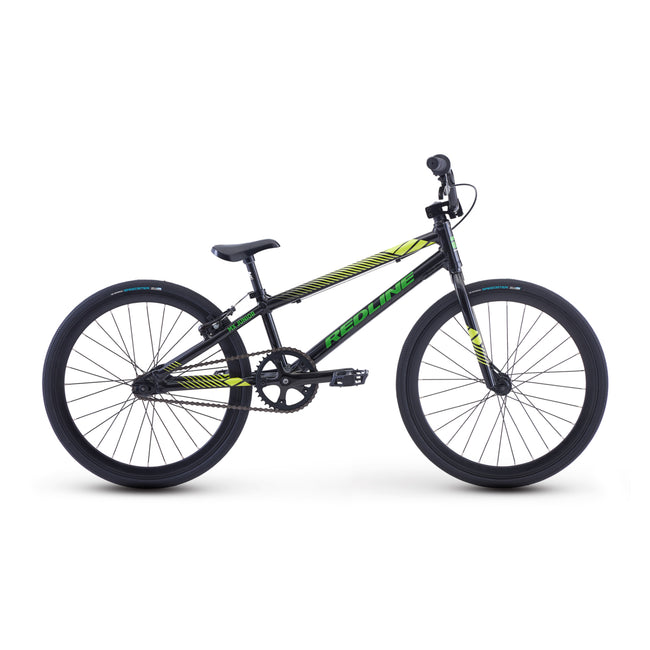

Redline MX Junior BMX Race Bike-Gloss Black

The Redline MX Junior BMX Race Bike-Gloss Black is the perfect entry-level BMX race bike for the beginning youth racer who is 4’6” to 5’1” tall. Made with an aluminum frame and integrated head tube, the Redline MX Junior is lightweight and easy to maneuver. The MX Junior features high-quality 155mm 3-piece aluminum cranks, integrated headset, 20 inch wheels, and an integrated saddle and seat post combination for weight savings.

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacturer's warranty. Manufacturer's warranties differ for every brand. You can check the brand's website for warranty information.

SPECIFICATIONS

• FRAME: 6061 Alloy w/Integrated Headtube
• FORK: RL Race Hi-Ten w/ Tapered legs
• HEADSET: Integrated 1"
• CRANKS: Race Aluminum 3pc, 155mm
• SPROCKET: 38t, Alloy
• BOTTOM BRACKET: Euro, Square Taper JIS
• COGSET: 14t
• CHAIN: KMC Z410
• FRONT HUB: Redline Aluminum
• REAR HUB: RL Aluminum Flip-Flop
• SPOKES: 14g Steel
• RIMS: Alloy Race 20 x 1 1/8
• TIRES: Vee Speedster 20 x 1-1/8"
• BRAKE LEVERS: Tektro
• PEDALS: RL Race 9/16" PC pedal
• HANDLEBAR: RL Race Aluminum 4.5" Rise / 10° Back / 2° Up
• GRIPS: Redline Hex Expert w/plugs
• STEM: RL Hollow Point Aluminum 1 1/8" threadless
• SEAT: RL Race Integrated w/22.2 Post
• BRAKES: Tektro 926 AL Linear

GEOMETRY

• Frame Size: 20"
• Top Tube Length: 18.5"
• Head Angle: 73.0°
• Seat Angle: 69.0°
• Chain Stay Length: 13.5"
• Bb Height: 10.8"
• Stem Length: 40.0"
• Handlebar Width: 24.0"
• Crank Length: 155.0"
