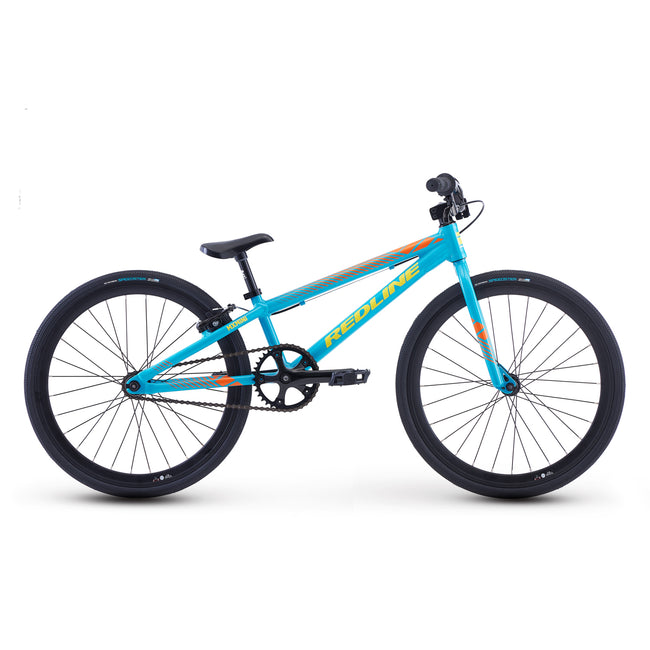

Redline MX Mini BMX Race Bike-Blue Gloss

Sold Out

About This Product: Redline MX Mini BMX Race Bike-Blue Gloss

The Redline MX Mini BMX Race Bike-Blue Gloss is the perfect entry-level BMX race bike for the beginning youth racer who is 50 to 54 inches tall. Made with an aluminum frame and integrated head tube, the Redline MX Mini is lightweight and easy to maneuver. The MX Mini features a high quality 3-piece crank set, integrated headset, 20-inch wheels and an integrated saddle and seat post combination for ease of use.

SPECIFICATIONS

  • FRAME: 6061 Alloy w/Integrated Headtube
  • FORK: RL Race Hi-Ten w/ Tapered legs
  • HEADSET: Integrated 1"
  • CRANKS: Race Aluminum 3pc, 140mm
  • SPROCKET: 38t, Alloy
  • BOTTOM BRACKET: Euro, Square Taper JIS
  • COGSET: 14t
  • CHAIN: KMC Z410
  • FRONT HUB: Redline Aluminum
  • REAR HUB: RL Aluminum Flip-Flop
  • SPOKES: 14g Steel
  • RIMS: Alloy Race 20 x 1 1/8
  • TIRES: Vee Speedster, 20 x 1-1/8"
  • BRAKE LEVERS: Tektro
  • PEDALS: RL Race 9/16" PC pedal
  • HANDLEBAR: Alloy Race, 2.5" Rise / 10° Back / 2° Up
  • GRIPS: Redline Hex Expert w/plugs
  • STEM: RL Hollow Point Aluminum 1 1/8" threadless
  • SEAT: RL Race Integrated w/22.2 Post
  • BRAKES: Tektro 926 AL Linear

GEOMETRY

  • Frame Size: 20"
  • Top Tube Length: 18.0"
  • Head Angle: 72.0°
  • Seat Angle: 69.0°
  • Chain Stay Length: 13.1"
  • Bb Height: 10.5"
  • Stem Length: 40.0"
  • Handlebar Width: 24.0"
  • Crank Length: 155.0"

Complete Bike specifications and components may differ from photos and description. Manufacturers reserve the right to make changes and/or substitutions due to parts availability, production requirements and ongoing development decisions.

Redline Race Bike Size Charts

Redline Race Bike Size Charts
Size Rider's Height
: Micro : 4'4" and under
: Mini : 4'2" - 4'6"
: Junior : 4'6" - 5'1"
: Pitboss : 4'2" - 5'1"
: Expert : 5'0" - 5'4"
: Expert XL : 5'2" - 5'6"
: Pro : 5'3" - 5'8"
: Pro XL : 5'7" - 6'0"
: Pro XXL : 6'0" and over
: Pro 24 : 5'7" and over

Race Bike and Race Frame Fitment Guide

Race Bike and Race Frame Fitment Guide
FRAME/BIKE SIZE HEIGHT TYPICAL AGE
FRAME/BIKE SIZE: MICRO HEIGHT: 3' - 3'7" TYPICAL AGE: 3 - 5
FRAME/BIKE SIZE: MINI HEIGHT: 3'4" - 4' TYPICAL AGE: 5 - 6
FRAME/BIKE SIZE: JUNIOR HEIGHT: 3'10" - 4'5" TYPICAL AGE: 7 - 8
FRAME/BIKE SIZE: EXPERT HEIGHT: 4'2" - 4'9" TYPICAL AGE: 9 - 10
FRAME/BIKE SIZE: EXPERT XL HEIGHT: 4'6" - 5'2" TYPICAL AGE: 11 - 12
FRAME/BIKE SIZE: PRO HEIGHT: 4'9" - 5'7" TYPICAL AGE: 13 - 14
FRAME/BIKE SIZE: PRO XL HEIGHT: 5'6" - 6'1" TYPICAL AGE: 15 - 18
FRAME/BIKE SIZE: PRO XXL HEIGHT: 5'9" - 6'5" TYPICAL AGE:
FRAME/BIKE SIZE: PRO XXXL HEIGHT: 6'3" - 6'9" TYPICAL AGE:
