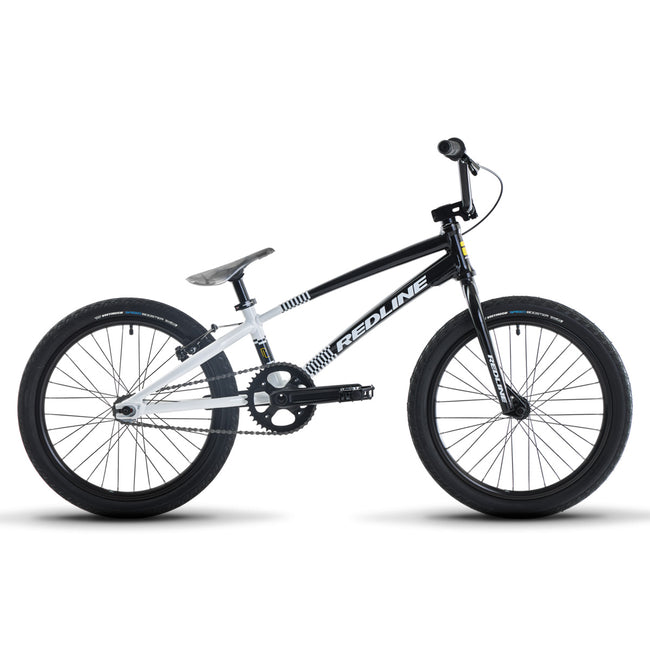

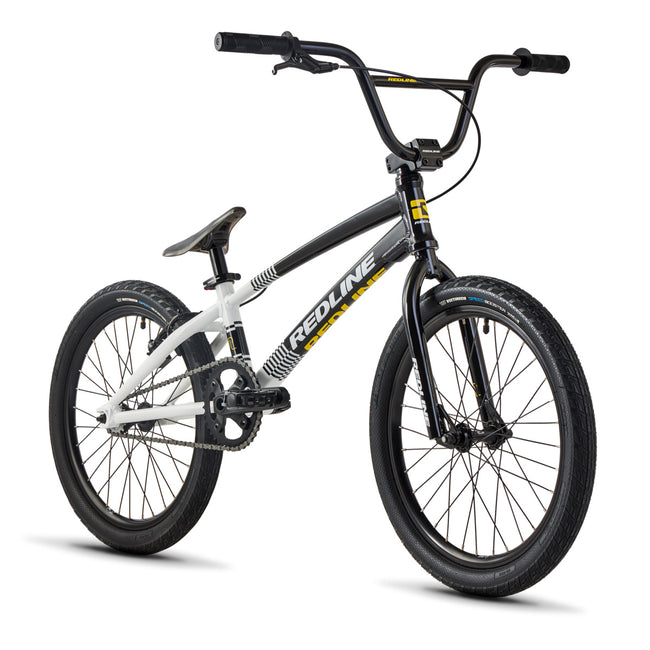

Redline Proline Expert XL BMX Race Bike-Black

The Redline Proline Expert XL BMX Race Bike-Black at J&R Bicycles is a high-quality race bike perfect for experienced riders looking to up their racing game. Featuring a proprietary Redline frame built from formed and butted aluminum alloy tubing for killer lightweight responsiveness. The tapered and butted race fork is made from 100% chromoly steel alloy so it is strong without adding much weight. The Redline Proline also comes equipped with an integrated headset, sealed Euro BB, fully sealed hubs and 2-piece ally-forged cranks for extra durability. High-quality components and design mean the Proline gets you to the finish line faster.

NOTE: As with any complete bike, J&R Bicycles recommends that you have a professional bicycle store build your bike. Bikes ordered through mail-order come partially assembled and need to be inspected and assembled by a bicycle mechanic. Failure to do so may void the manufacturer's warranty. Manufacturer's warranties differ for every brand. You can check the brand's website for warranty information.

SPECIFICATIONS

• FRAME: Proprietary Alloy Formed and Butted Tubing

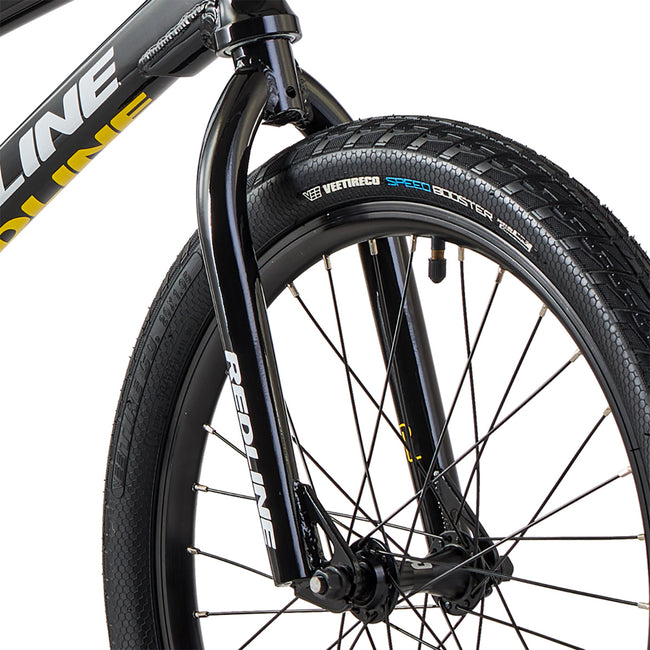

• FORK: Full Chromo With Tapered Legs
• HEADSET: Sealed Integrated Headset 1 1/8, Aluminum top cap

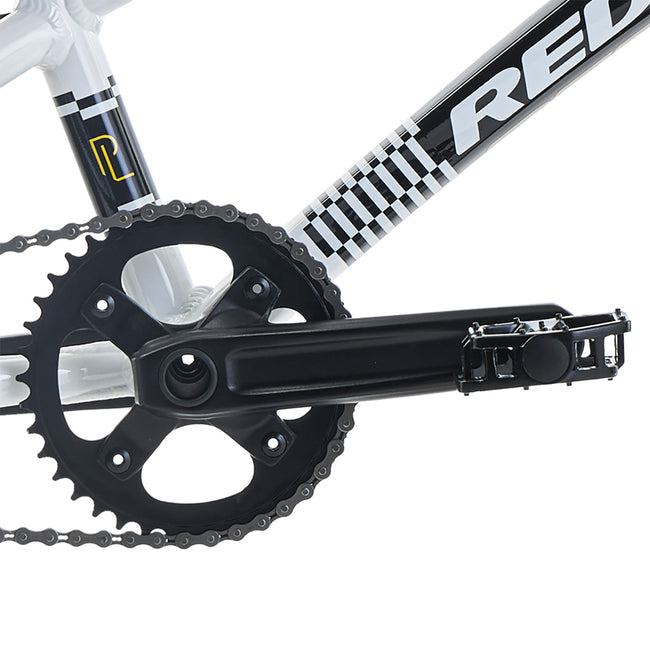

• CRANKS: Aluminum 2 Piece 165mm cranks
• SPROCKET: 39t, Alloy, 104 BCD
• BOTTOM BRACKET: Sealed Euro BB
• COGSET: 14t
• CHAIN: KMC Z6
• FRONT HUB: Redline Aluminum Fully Sealed

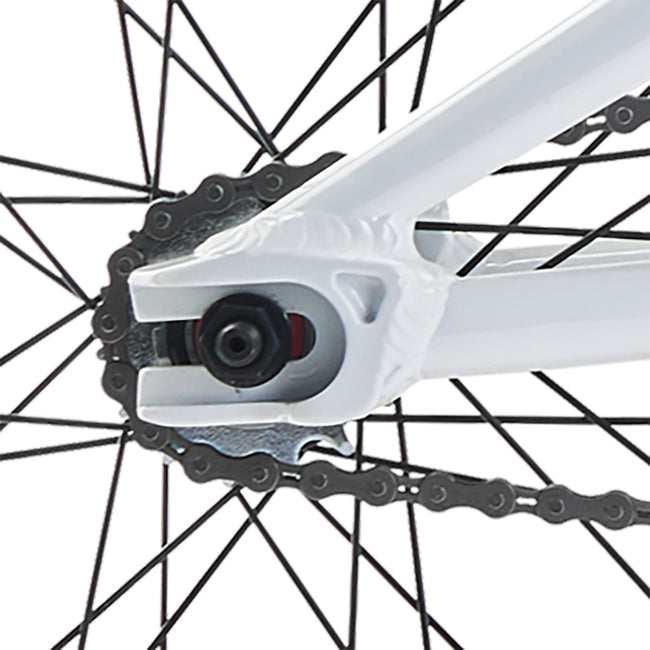

• REAR HUB: Redline Aluminum, Cassette, Fully Sealed
• SPOKES: Stainless 14g, Black
• RIMS: A-M6 Alloy Race, 20 x 1.5, 32h
• TIRES: Vee Speed Booster, 20 x 1.95" Front / 20 x 1.75" Rear

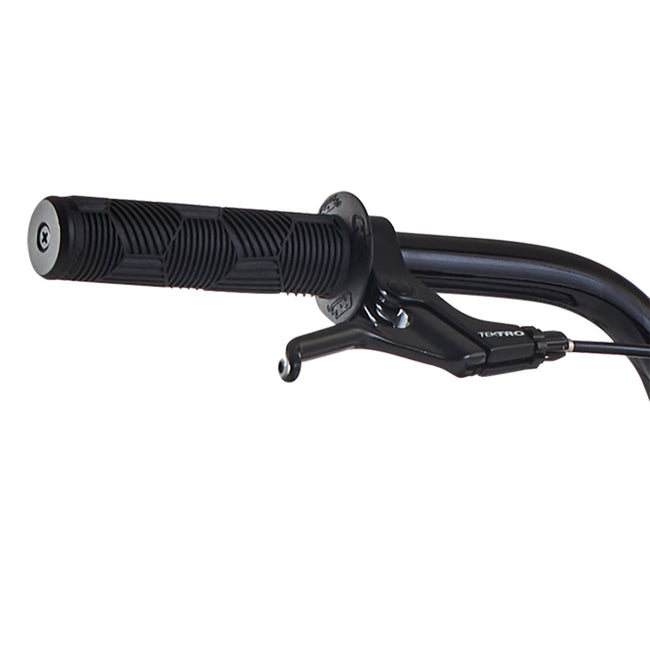

• BRAKE LEVERS: Tektro 316A Linear
• PEDALS: Aluminum 9/16" Platform
• HANDLEBAR: Chromoly, 6.5" Rise / 12° Back / 1° Up
• GRIPS: RL Pro Hex Grips
• STEM: RL Aluminum HollowPoint

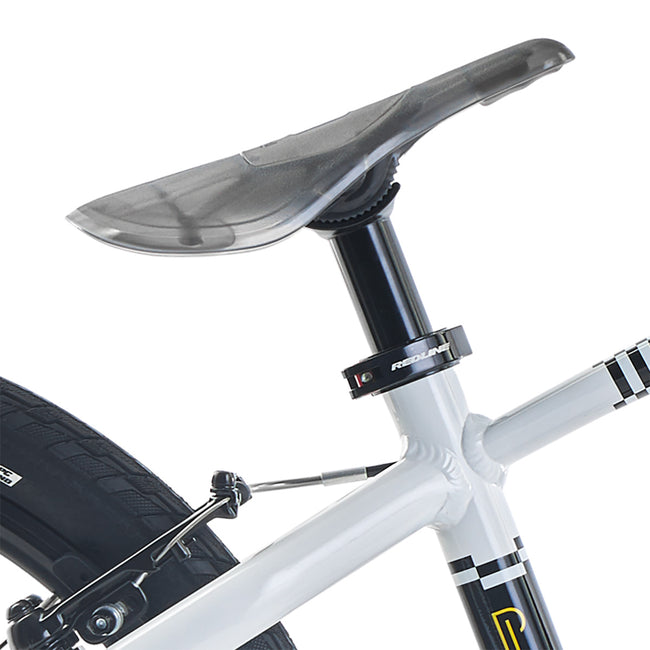

• SEAT: Pivotal No padding
• SEATPOST: Aluminum Pivotal 26.8mm
• EXTRAS: Chain Tensioners
• BRAKES: Tektro 930AL Linear

GEOMETRY

• FRAME SIZE: 20"
• RIDER HEIGHT: -
• BIKE TOP TUBE LENGTH: 20.0"
• BIKE HEAD ANGLE: 73.0°
• BIKE SEAT ANGLE: 69.0°
• BIKE CHAIN STAY LENGTH: 13.25"
• BIKE BB HEIGHT: 11.2"
• BIKE STEM LENGTH: 50.0mm
• BIKE HANDLEBAR WIDTH: 26.0"
• BIKE CRANK LENGTH: 170.0mm
